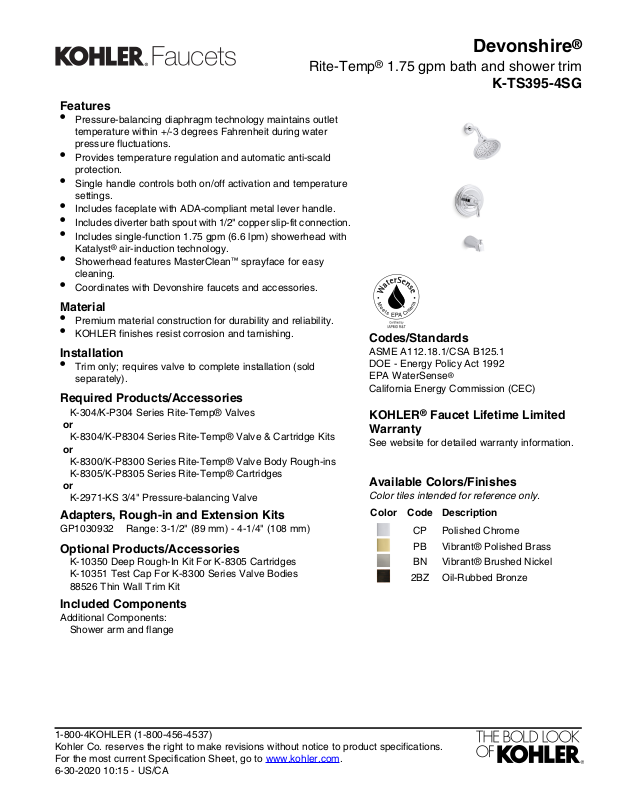

Rite-Temp® 1.75 gpm bath and shower trim
Features
•
Pressure-balancing diaphragm technology maintains outlet
temperature within +/-3 degrees Fahrenheit during water
pressure fluctuations.
•
Provides temperature regulation and automatic anti-scald
protection.
•
Single handle controls both on/off activation and temperature
settings.
•
Includes faceplate with ADA-compliant metal lever handle.
•
Includes diverter bath spout with 1/2" copper slip-fit connection.
•
Includes single-function 1.75 gpm (6.6 lpm) showerhead with
Katalyst® air-induction technology.
•
Showerhead features MasterClean™ sprayface for easy
cleaning.
•
Coordinates with Devonshire faucets and accessories.
Material
•
Premium material construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Trim only; requires valve to complete installation (sold
separately).
Required Products/Accessories
K-304/K-P304 Series Rite-Temp® Valves
or
K-8304/K-P8304 Series Rite-Temp® Valve & Cartridge Kits
or
K-8300/K-P8300 Series Rite-Temp® Valve Body Rough-ins
K-8305/K-P8305 Series Rite-Temp® Cartridges
or
K-2971-KS 3/4" Pressure-balancing Valve
Adapters, Rough-in and Extension Kits
Range: 3-1/2" (89 mm) - 4-1/4" (108 mm)GP1030932
Optional Products/Accessories
K-10350 Deep Rough-In Kit For K-8305 Cartridges
K-10351 Test Cap For K-8300 Series Valve Bodies
88526 Thin Wall Trim Kit
Devonshire
K-TS395-4SG
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
EPA WaterSense
California Energy Commission (CEC)
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
®
DescriptionCodeColor
Polished ChromeCP
Vibrant® Polished BrassPB
Vibrant® Brushed NickelBN
Oil-Rubbed Bronze2BZ
®
Included Components
Additional Components:
Shower arm and flange
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-30-2020 10:15 - US/CA
Ø 2"
(51 mm)
Max
Ø 2-9/16"
(65 mm)
1/2"
NPT
Ø 7" (178 mm)
4-5/16''
(110 mm)
7-7/8" (200 mm)
Typical
Ø 2-7/16"
(62 mm)
4-15/16"'
(125 mm)
4-9/16"
(116 mm)
3-3/16"
(81 mm)
Slip-fit Spout:
Extend 5/8" OD tube 3-1/4"
(83 mm) from finished wall.
K-2971-KS,
K-304 Valves
K-8300 Valve
Series
Finished Wall
*If 3-1/2" (89 mm) to
4-1/4" (108 mm) use
deep roughing-in kit.
Devonshire
®
Rite-Temp® 1.75 gpm bath and shower trim
K-TS395-4SG
Technical Information
All product dimensions are nominal.
NoDrain included:
Showerhead/Body Spray:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-30-2020 10:15 - US/CA
1.75 gal/min (6.6 l/min)Rated maximum flow:
80 psi (5.5 bar)Pressure:
Notes
For use with automatic compensating valves rated
at 1.4 gal/min (5.3 l/min) or less.
Install this product according to the installation
instructions.
Install straight pipe or tube drop of 7" (178 mm)
to 18" (457 mm) with single elbow between the
valve and the wall-mount spout.
NOTICE: Risk of product damage. Long screws,
for installing trim, can damage the K-2971-KS
valve. Consult the trim installation guide to verify
if the thin wall installation kit is needed.
