Kohler LBPR3565 Specifications

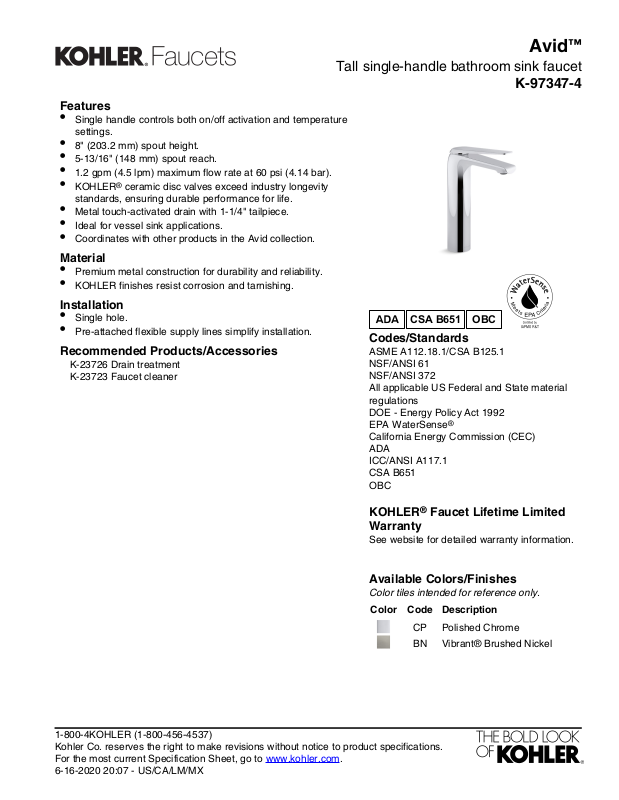

Page 1
Features
CSA B651
OBC
Single handle controls both on/off activation and temperature settings.
8" (203.2 mm) spout height.
5-13/16" (148 mm) spout reach.
1.2 gpm (4.5 lpm) maximum flow rate at 60 psi (4.14 bar).
KOHLER® ceramic disc valves exceed industry longevity standards, ensuring durable performance for life.
Metal touch-activated drain with 1-1/4" tailpiece.
Ideal for vessel sink applications.
Coordinates with other products in the Avid collection.
Material
Premium metal construction for durability and reliability.
KOHLER finishes resist corrosion and tarnishing.
Installation
Single hole.
Pre-attached flexible supply lines simplify installation.
Recommended Products/Accessories
K-23726 Drain treatment K-23723 Faucet cleaner
Avid
Tall single-handle bathroom sink faucet
K-97347-4
Codes/Standards
ASME A112.18.1/CSA B125.1 NSF/ANSI 61 NSF/ANSI 372 All applicable US Federal and State material regulations DOE - Energy Policy Act 1992 EPA WaterSense California Energy Commission (CEC) ADA ICC/ANSI A117.1 CSA B651 OBC
KOHLER® Faucet Lifetime Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Brushed NickelBN
1-800-4KOHLER (1-800-456-4537) Kohler Co. reserves the right to make revisions without notice to product specifications. For the most current Specification Sheet, go to www.kohler.com. 6-16-2020 20:07 - US/CA/LM/MX
Page 2
3-3/4" (95 mm)
Ø 2-1/16" (52 mm)
5-13/16" (148 mm)
10" (254 mm)
Touch-Activated Drain
1-1/4"OD
Ø 2" (51 mm)
8-1/16" (205 mm)
5-1/8" (130 mm)
3/8" Compression Fitting
18-5/8" (473 mm)
Ø 1-3/4" (44 mm)
2" (51 mm) Max
Avid
Tall single-handle bathroom sink faucet
K-97347-4
Technical Information
All product dimensions are nominal.
Faucet:
1.2 gal/min (4.5 l/min)Flow rate: 60 psi (4.1 bar)Pressure:
Cast brassValve body: YesDrain included: YesDrain with overflow: YesDrain tailpiece
included:
Spout:
5-13/16" (148 mm)Spout reach:
1-800-4KOHLER (1-800-456-4537) Kohler Co. reserves the right to make revisions without notice to product specifications. For the most current Specification Sheet, go to www.kohler.com. 6-16-2020 20:07 - US/CA/LM/MX
Notes
Install this product according to the installation instructions.
ADA, OBC, CSA B651 compliant when installed to the specific requirements of these regulations.
