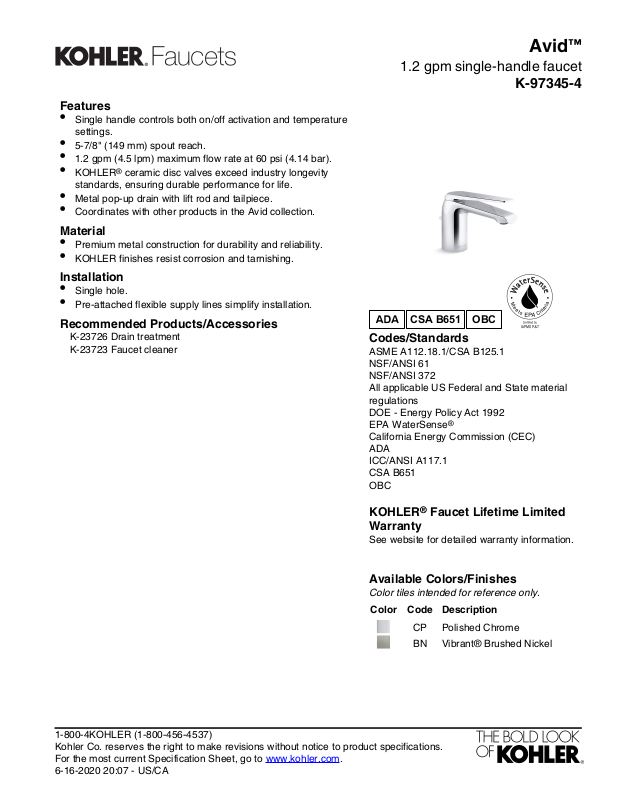

Page 1
Features
CSA B651
OBC
•
Single handle controls both on/off activation and temperature
settings.
•
5-7/8" (149 mm) spout reach.
•
1.2 gpm (4.5 lpm) maximum flow rate at 60 psi (4.14 bar).
•
KOHLER® ceramic disc valves exceed industry longevity
standards, ensuring durable performance for life.
•
Metal pop-up drain with lift rod and tailpiece.
•
Coordinates with other products in the Avid collection.
Material
•
Premium metal construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Single hole.
•
Pre-attached flexible supply lines simplify installation.
Recommended Products/Accessories
K-23726 Drain treatment
K-23723 Faucet cleaner
Avid
1.2 gpm single-handle faucet
K-97345-4
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
EPA WaterSense
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
CSA B651
OBC
®
™
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Brushed NickelBN
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-16-2020 20:07 - US/CA

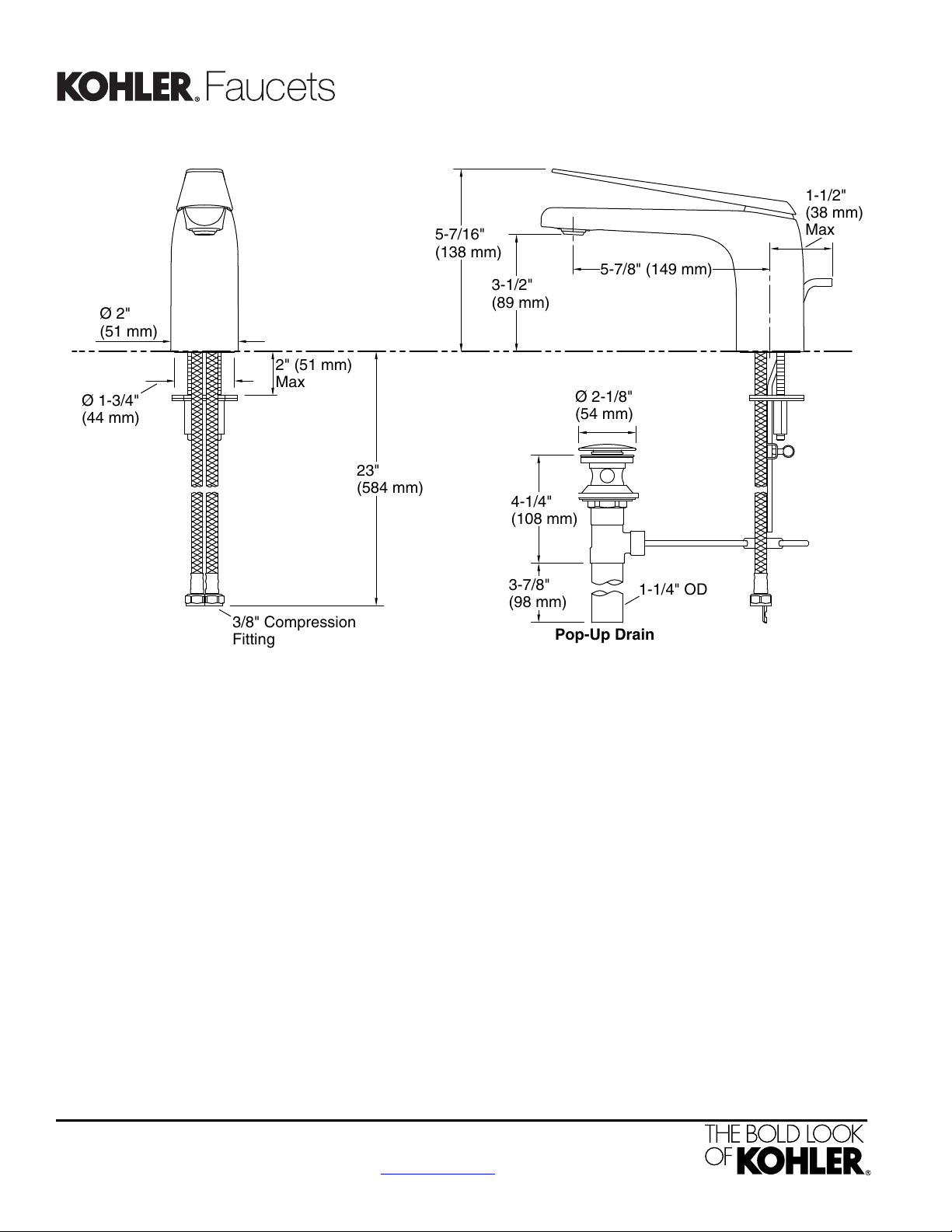

Page 2
23"
(584 mm)
Ø 2"
(51 mm)
5-7/16"
(138 mm)
5-7/8" (149 mm)
3-1/2"
(89 mm)
3/8" Compression
Fitting
1-1/4" OD
Pop-Up Drain
3-7/8"
(98 mm)
4-1/4"
(108 mm)
Ø 2-1/8"
(54 mm)
1-1/2"
(38 mm)
Max
Ø 1-3/4"
(44 mm)
2" (51 mm)
Max
Avid
™
1.2 gpm single-handle faucet
K-97345-4
Technical Information
All product dimensions are nominal.
Faucet:
1.2 gal/min (4.5 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
Cast brassValve body:
YesDrain included:
YesDrain with overflow:
YesDrain tailpiece
included:
Spout:
5-13/16" (148 mm)Spout reach:
Notes
Install this product according to the installation
instructions.
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-16-2020 20:07 - US/CA
