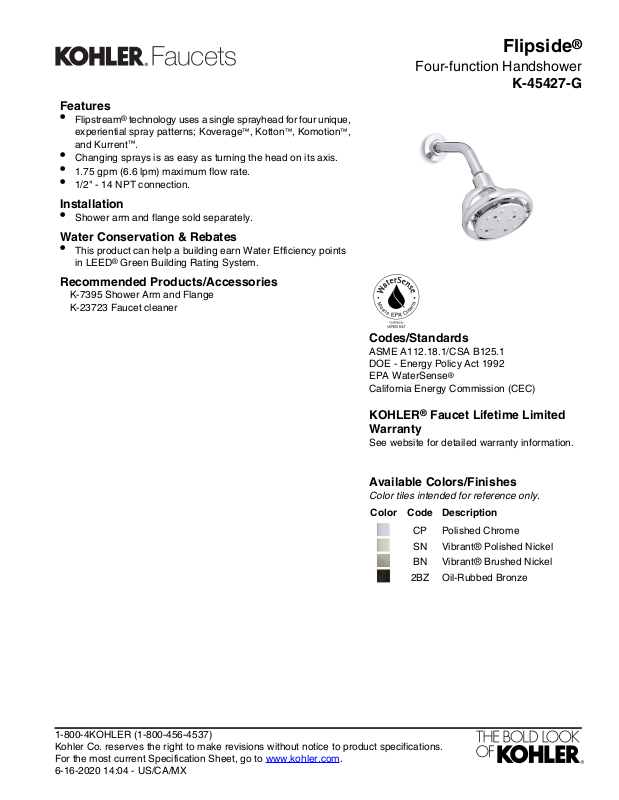

Page 1
Features
•
Flipstream® technology uses a single sprayhead for four unique,
experiential spray patterns; Koverage™, Kotton™, Komotion™,
and Kurrent™.
•
Changing sprays is as easy as turning the head on its axis.
•
1.75 gpm (6.6 lpm) maximum flow rate.
•
1/2" - 14 NPT connection.
Installation
•
Shower arm and flange sold separately.
Water Conservation & Rebates
•
This product can help a building earn Water Efficiency points
in LEED® Green Building Rating System.
Recommended Products/Accessories
K-7395 Shower Arm and Flange
K-23723 Faucet cleaner
Flipside
®
Four-function Handshower
K-45427-G
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
EPA WaterSense
California Energy Commission (CEC)
®
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Polished NickelSN
Vibrant® Brushed NickelBN
Oil-Rubbed Bronze2BZ
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-16-2020 14:04 - US/CA/MX
Page 2
5-5/16"
(135 mm)
1/2"-14 NPT
Ø 5-3/8" (137 mm)
Flipside
®
Four-function Handshower
K-45427-G
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
instructions.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-16-2020 14:04 - US/CA/MX
