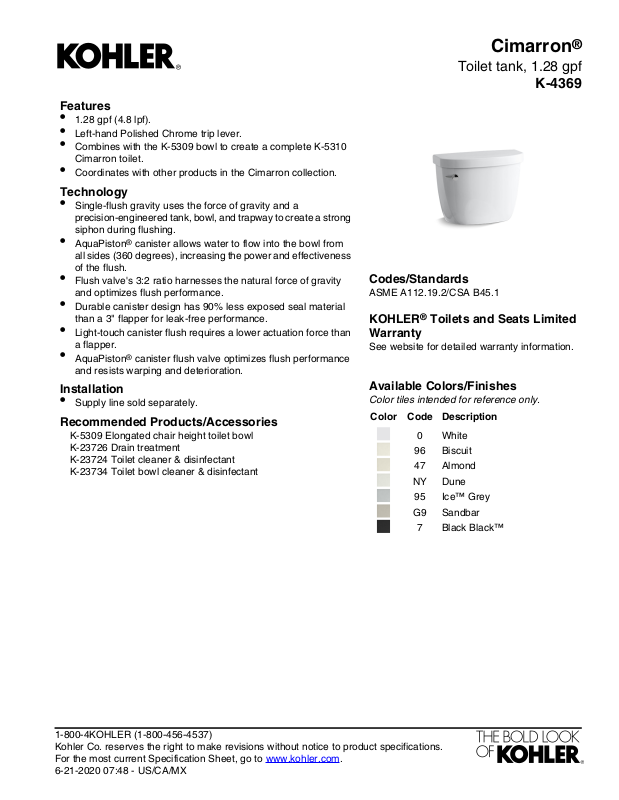

Features
•
1.28 gpf (4.8 lpf).
•
Left-hand Polished Chrome trip lever.
•
Combines with the K-5309 bowl to create a complete K-5310
Cimarron toilet.
•
Coordinates with other products in the Cimarron collection.
Technology
•
Single-flush gravity uses the force of gravity and a
precision-engineered tank, bowl, and trapway to create a strong
siphon during flushing.
•
AquaPiston® canister allows water to flow into the bowl from
all sides (360 degrees), increasing the power and effectiveness
of the flush.
•
Flush valve's 3:2 ratio harnesses the natural force of gravity
and optimizes flush performance.
•
Durable canister design has 90% less exposed seal material
than a 3" flapper for leak-free performance.
•
Light-touch canister flush requires a lower actuation force than
a flapper.
•
AquaPiston® canister flush valve optimizes flush performance
and resists warping and deterioration.
Installation
•
Supply line sold separately.
Recommended Products/Accessories
K-5309 Elongated chair height toilet bowl
K-23726 Drain treatment
K-23724 Toilet cleaner & disinfectant
K-23734 Toilet bowl cleaner & disinfectant
Cimarron
Toilet tank, 1.28 gpf
K-4369
Codes/Standards
ASME A112.19.2/CSA B45.1
KOHLER® Toilets and Seats Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
Ice™ Grey95
SandbarG9
Black Black™7
®
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-21-2020 07:48 - US/CA/MX
No image available.
This product is a component and not intended to be a standalone installation.
Cimarron
®
Toilet tank, 1.28 gpf
K-4369
Technical Information
All product dimensions are nominal.
Two-pieceToilet type:
Water Consumption
1.28 gpf (4.8 lpf)Full:
Notes
Install this product according to the installation
instructions.
