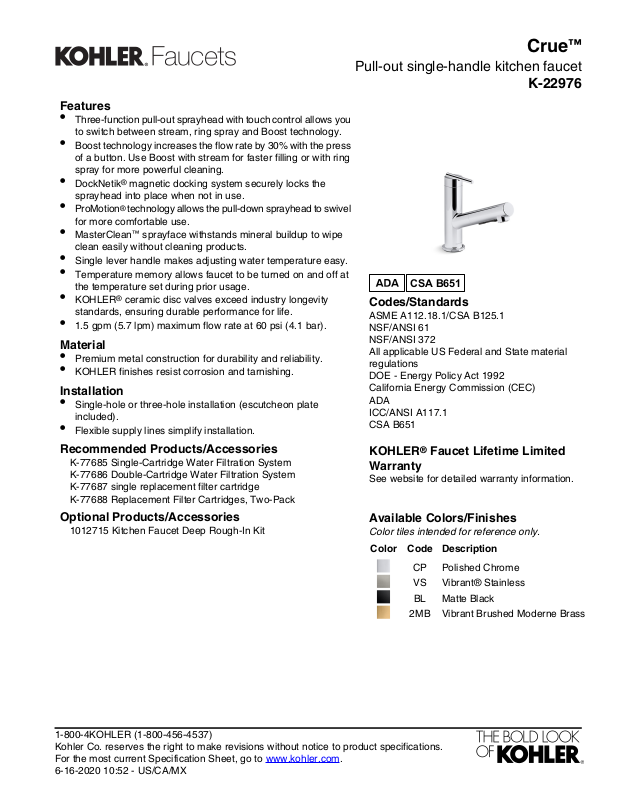

Page 1
Features
CSA B651
•
Three-function pull-out sprayhead with touch control allows you
to switch between stream, ring spray and Boost technology.
•
Boost technology increases the flow rate by 30% with the press
of a button. Use Boost with stream for faster filling or with ring
spray for more powerful cleaning.
•
DockNetik® magnetic docking system securely locks the
sprayhead into place when not in use.
•
ProMotion® technology allows the pull-down sprayhead to swivel
for more comfortable use.
•
MasterClean™ sprayface withstands mineral buildup to wipe
clean easily without cleaning products.
•
Single lever handle makes adjusting water temperature easy.
•
Temperature memory allows faucet to be turned on and off at
the temperature set during prior usage.
•
KOHLER® ceramic disc valves exceed industry longevity
standards, ensuring durable performance for life.
•
1.5 gpm (5.7 lpm) maximum flow rate at 60 psi (4.1 bar).
Material
•
Premium metal construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Single-hole or three-hole installation (escutcheon plate
included).
•
Flexible supply lines simplify installation.
Crue
™
Pull-out single-handle kitchen faucet
K-22976
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
CSA B651
Recommended Products/Accessories
K-77685 Single-Cartridge Water Filtration System
K-77686 Double-Cartridge Water Filtration System
K-77687 single replacement filter cartridge
K-77688 Replacement Filter Cartridges, Two-Pack
Optional Products/Accessories
1012715 Kitchen Faucet Deep Rough-In Kit
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-16-2020 10:52 - US/CA/MX
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® StainlessVS
Matte BlackBL
Vibrant Brushed Moderne Brass2MB
Page 2
8-3/16"
(208 mm)
5"
(127 mm)
2-1/2"
(64 mm)
7-9/16"
(192 mm)
24-11/16"
(627 mm)
10-1/2"
(267 mm)
2-1/2"
(64 mm)
Max
Ø 1-5/16"
3/8"
Compression
Fittings
9-3/16"
(233 mm)
Crue
™
Pull-out single-handle kitchen faucet
K-22976
Technical Information
All product dimensions are nominal.
Faucet:
1.5 gal/min (5.7 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
125 psi (861.8 kPa)Fixture pressure max
(static):
Pressure and Supply Requirements
20 psi (137.9 kPa)Fixture pressure min
(static):
Fixture Supply Requirements
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-16-2020 10:52 - US/CA/MX
20 psi (137.9 kPa)Min static pressure:
125 psi (861.8 kPa)Max static pressure:
Notes
Install this product according to the installation
instructions.
ADA, CSA B651 compliant when installed to the
specific requirements of these regulations.
