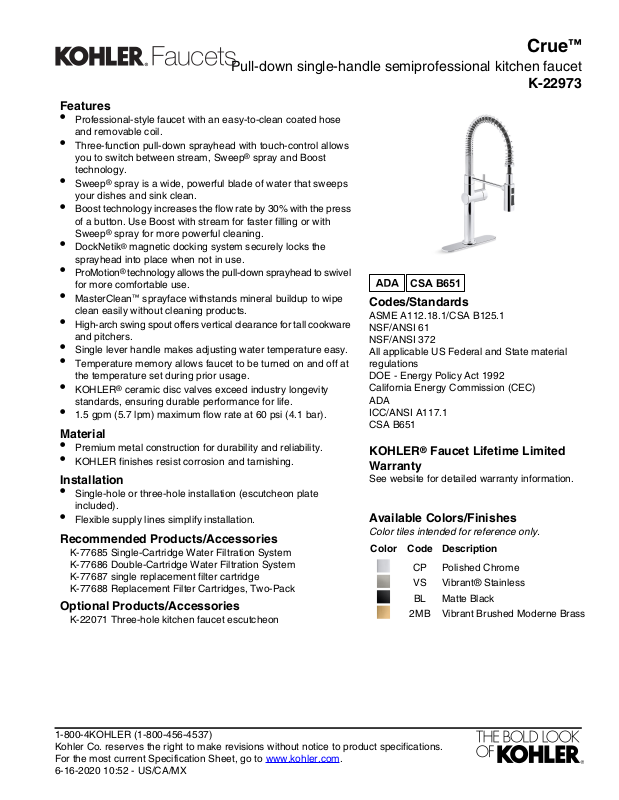

Kohler LBPR3528 Specifications
CSA B651
Pull-down single-handle semiprofessional kitchen faucet
Features
•
Professional-style faucet with an easy-to-clean coated hose
and removable coil.
•
Three-function pull-down sprayhead with touch-control allows
you to switch between stream, Sweep® spray and Boost
technology.
•
Sweep® spray is a wide, powerful blade of water that sweeps
your dishes and sink clean.
•
Boost technology increases the flow rate by 30% with the press
of a button. Use Boost with stream for faster filling or with
Sweep® spray for more powerful cleaning.
•
DockNetik® magnetic docking system securely locks the
sprayhead into place when not in use.
•
ProMotion® technology allows the pull-down sprayhead to swivel
for more comfortable use.
•
MasterClean™ sprayface withstands mineral buildup to wipe
clean easily without cleaning products.
•
High-arch swing spout offers vertical clearance for tall cookware
and pitchers.
•
Single lever handle makes adjusting water temperature easy.
•
Temperature memory allows faucet to be turned on and off at
the temperature set during prior usage.
•
KOHLER® ceramic disc valves exceed industry longevity
standards, ensuring durable performance for life.
•
1.5 gpm (5.7 lpm) maximum flow rate at 60 psi (4.1 bar).
Material
•
Premium metal construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Single-hole or three-hole installation (escutcheon plate
included).
•
Flexible supply lines simplify installation.
Recommended Products/Accessories
K-77685 Single-Cartridge Water Filtration System
K-77686 Double-Cartridge Water Filtration System
K-77687 single replacement filter cartridge
K-77688 Replacement Filter Cartridges, Two-Pack
Optional Products/Accessories
K-22071 Three-hole kitchen faucet escutcheon
Crue
K-22973
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
CSA B651
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® StainlessVS
Matte BlackBL
Vibrant Brushed Moderne Brass2MB
™
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-16-2020 10:52 - US/CA/MX
3/8"
Compression
Fittings
Ø 1-5/16"
2-1/2"
(64 mm)
Max
4-9/16" (116 mm)
3-3/16"
(81 mm)
9" (229 mm)
10-15/16"
(278 mm)
10-1/2"
(267 mm)
22-5/16"
(567 mm)
2-1/2"
(64 mm)
7-11/16"
(195 mm)
21-3/8"
(543 mm)
Crue
™
Pull-down single-handle semiprofessional kitchen faucet
K-22973
Technical Information
All product dimensions are nominal.
Faucet:
1.5 gal/min (5.7 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
NoDrain included:
125 psi (861.8 kPa)Fixture pressure max
(static):
Notes
Install this product according to the installation
instructions.
ADA, CSA B651 compliant when installed to the
specific requirements of these regulations.
Pressure and Supply Requirements
20 psi (137.9 kPa)Fixture pressure min
(static):
Fixture Supply Requirements
20 psi (137.9 kPa)Min static pressure:
125 psi (861.8 kPa)Max static pressure:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-16-2020 10:52 - US/CA/MX
