CSA B651

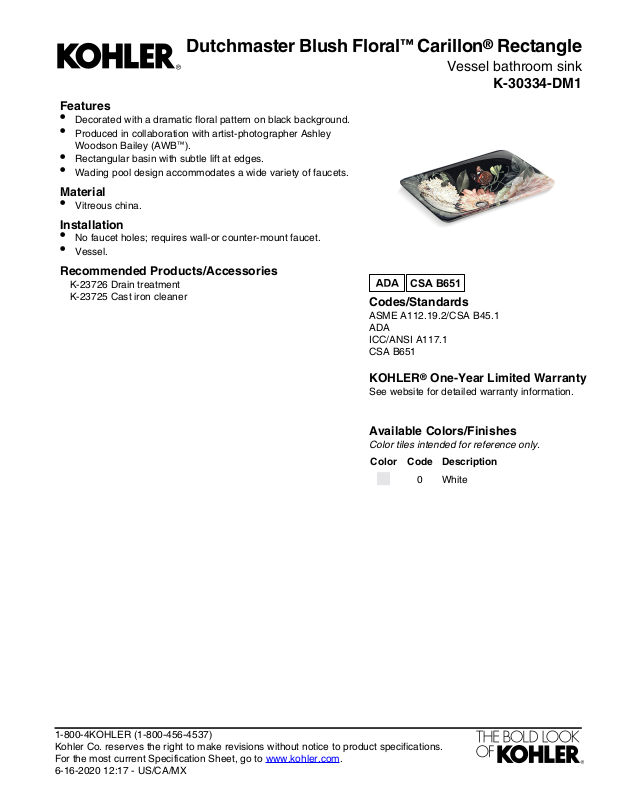

Dutchmaster Blush Floral™ Carillon® Rectangle
Features
•
Decorated with a dramatic floral pattern on black background.
•
Produced in collaboration with artist-photographer Ashley
Woodson Bailey (AWB™).
•
Rectangular basin with subtle lift at edges.
•
Wading pool design accommodates a wide variety of faucets.
Material
•
Vitreous china.
Installation
•
No faucet holes; requires wall-or counter-mount faucet.
•
Vessel.
Recommended Products/Accessories
K-23726 Drain treatment
K-23725 Cast iron cleaner
Vessel bathroom sink
K-30334-DM1
Codes/Standards
ASME A112.19.2/CSA B45.1
ADA
ICC/ANSI A117.1
CSA B651
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-16-2020 12:17 - US/CA/MX
11-13/16"
(300 mm)
Standard Installation
14"
(356 mm)
10-9/16"
(268 mm)
7-1/4"
(184 mm)
21-1/8" (536 mm)
3/4"
(19 mm)
6-1/8"
(156 mm)
1-1/4"
OD
3/8" Cold3/8" Hot
4" (102 mm)
Recommended ADA Installation
11"
(279 mm)
34"
(864 mm)
27"
(686 mm)
Min
8"
(203 mm)
Min
9" (229 mm) Min
24" (610 mm)
3" (76 mm)
14-9/16"
(370 mm)
Dutchmaster Blush Floral™ Carillon® Rectangle
Vessel bathroom sink
K-30334-DM1
Technical Information
All product dimensions are nominal.
Bowl area (Only):
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-16-2020 12:17 - US/CA/MX
SingleBowl configuration:
Drop-inInstallation:
Length: 21-1/8" (536 mm)
Width: 14-9/16" (370 mm)
Bowl depth: 4-1/8" (105 mm)
Water depth: 4-1/8" (105 mm)
1242828, required, includedTemplate:
Notes
Install this product according to the installation
instructions.
NOTICE: Countertop manufacturer or cutter must
use the current product template available at
www.kohler.com, or by calling 1-800-4KOHLER.
Kohler Co. is not responsible for cutout errors
when the incorrect cutout template is used.
ADA, CSA B651 compliant when installed to the
specific requirements of these regulations.
