CSA B651

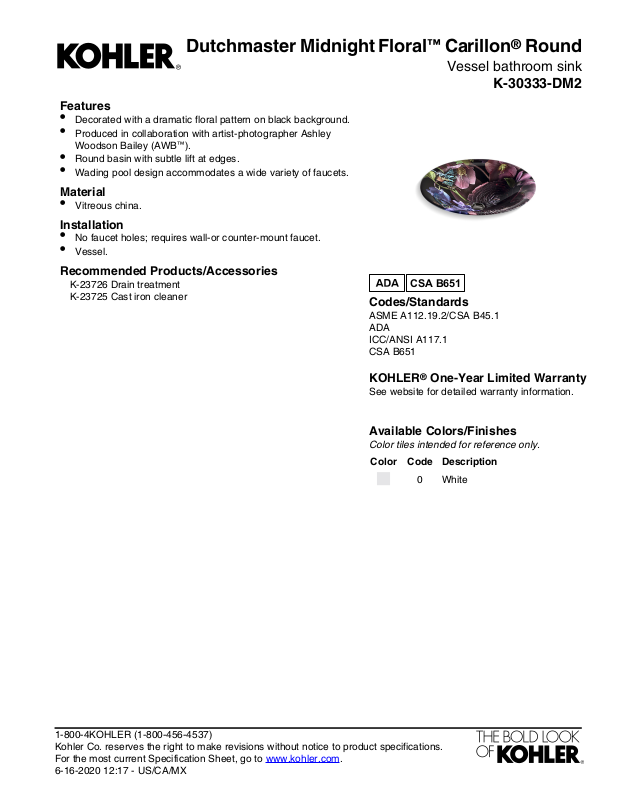

Dutchmaster Midnight Floral™ Carillon® Round
Features
•
Decorated with a dramatic floral pattern on black background.
•
Produced in collaboration with artist-photographer Ashley
Woodson Bailey (AWB™).
•
Round basin with subtle lift at edges.
•
Wading pool design accommodates a wide variety of faucets.
Material
•
Vitreous china.
Installation
•
No faucet holes; requires wall-or counter-mount faucet.
•
Vessel.
Recommended Products/Accessories
K-23726 Drain treatment
K-23725 Cast iron cleaner
Vessel bathroom sink
K-30333-DM2
Codes/Standards
ASME A112.19.2/CSA B45.1
ADA
ICC/ANSI A117.1
CSA B651
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-16-2020 12:17 - US/CA/MX
2" (51 mm)
24" (610 mm)
9" (229 mm) Min
8"
(203 mm)
Min
27"
(686 mm)
Min
34"
(864 mm)
11"
(279 mm)
14"
(356 mm)
1-1/4"
OD
3/8" Cold
3/8" Hot
4" (102 mm)
Recommended ADA Installation
Ø 17-11/16" (449 mm)
6"
(152 mm)
3/4"
(19 mm)
11-5/8"
(295 mm)
Dutchmaster Midnight Floral™ Carillon® Round
Vessel bathroom sink
K-30333-DM2
Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Drop-inInstallation:
Bowl area (Only):
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-16-2020 12:17 - US/CA/MX
Diameter: 17-11/16" (449 mm)
Bowl depth: 4" (102 mm)
Water depth: 4" (102 mm)
1242827, required, includedTemplate:
Notes
Install this product according to the installation
instructions.
NOTICE: Countertop manufacturer or cutter must
use the current product template available at
www.kohler.com, or by calling 1-800-4KOHLER.
Kohler Co. is not responsible for cutout errors
when the incorrect cutout template is used.
ADA, CSA B651 compliant when installed to the
specific requirements of these regulations.
