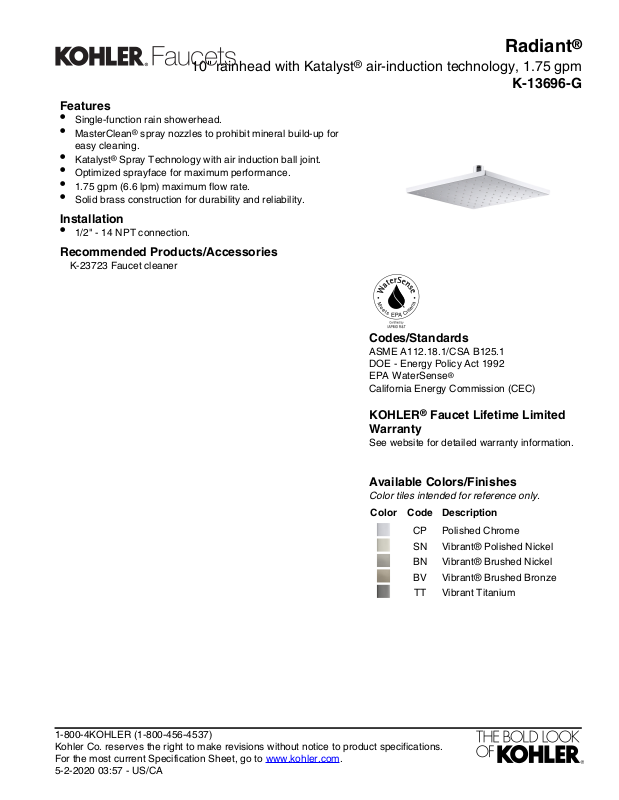

Page 1
10" rainhead with Katalyst® air-induction technology, 1.75 gpm
Features
•
Single-function rain showerhead.
•
MasterClean® spray nozzles to prohibit mineral build-up for
easy cleaning.
•
Katalyst® Spray Technology with air induction ball joint.
•
Optimized sprayface for maximum performance.
•
1.75 gpm (6.6 lpm) maximum flow rate.
•
Solid brass construction for durability and reliability.
Installation
•
1/2" - 14 NPT connection.
Recommended Products/Accessories
K-23723 Faucet cleaner
Radiant
K-13696-G
®
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
EPA WaterSense
California Energy Commission (CEC)
®
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Polished NickelSN
Vibrant® Brushed NickelBN
Vibrant® Brushed BronzeBV
Vibrant TitaniumTT
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-2-2020 03:57 - US/CA
Page 2
2-13/16"
(71 mm)
10" (254 mm)
1/2"-14 NPT
Radiant
®
10" rainhead with Katalyst® air-induction technology, 1.75 gpm
K-13696-G
Technical Information
All product dimensions are nominal.
Showerhead/Body Spray:
1.75 gal/min (6.6 l/min)Rated maximum flow:
80 psi (5.5 bar)Pressure:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-2-2020 03:57 - US/CA
Notes
For use with automatic compensating valves rated
at 1.4 gal/min (5.3 l/min) or less.
Install this product according to the installation
instructions.
