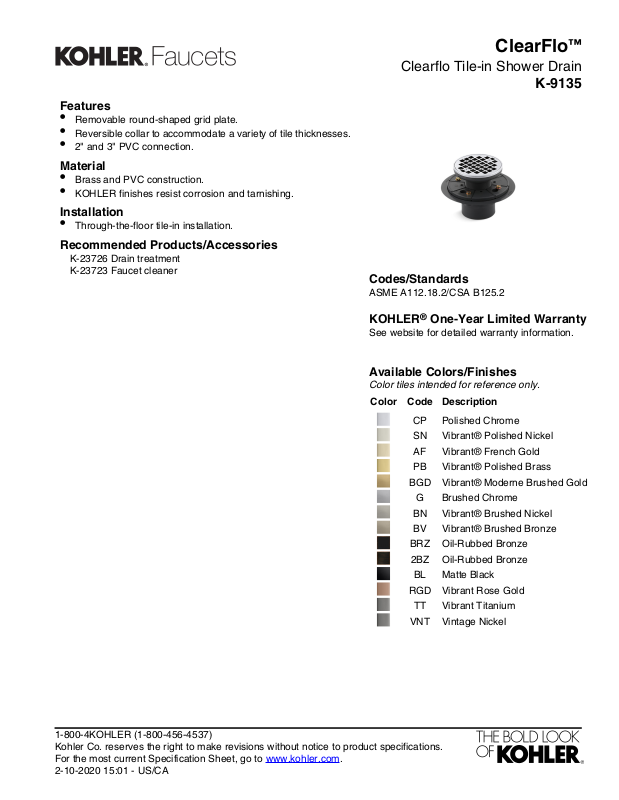

Page 1
Features
•
Removable round-shaped grid plate.
•
Reversible collar to accommodate a variety of tile thicknesses.
•
2" and 3" PVC connection.
Material
•
Brass and PVC construction.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Through-the-floor tile-in installation.
Recommended Products/Accessories
K-23726 Drain treatment
K-23723 Faucet cleaner
ClearFlo
™
Clearflo Tile-in Shower Drain
K-9135
Codes/Standards
ASME A112.18.2/CSA B125.2
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Polished NickelSN
Vibrant® French GoldAF
Vibrant® Polished BrassPB
Vibrant® Moderne Brushed GoldBGD
Brushed ChromeG
Vibrant® Brushed NickelBN
Vibrant® Brushed BronzeBV
Oil-Rubbed BronzeBRZ
Oil-Rubbed Bronze2BZ
Matte BlackBL
Vibrant Rose GoldRGD
Vibrant TitaniumTT
Vintage NickelVNT
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
2-10-2020 15:01 - US/CA
Page 2
Collar with Threads Facing Up
4-3/16"
(106 mm)
2-1/4" (57 mm) Min
3-3/8" (86 mm) Max
Collar with Threads Facing Down
Ø 3" (76 mm)
Ø 2-3/8"
(60 mm)
4-3/16"
(106 mm)
1-1/2" (38 mm) Min
2-9/16" (65 mm) Max
4-1/4" (108 mm)
Ø 6-1/2" (165 mm)
5-3/8" (137 mm)
ClearFlo
™
Clearflo Tile-in Shower Drain
K-9135
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
instructions.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
2-10-2020 15:01 - US/CA
