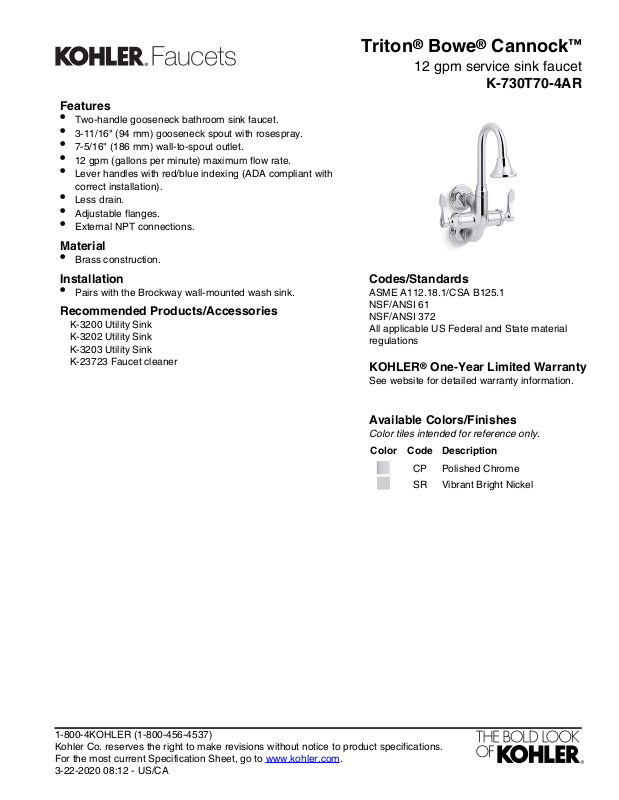

Page 1
Features
•
Two-handle gooseneck bathroom sink faucet.
•
3-11/16" (94 mm) gooseneck spout with rosespray.
•
7-5/16" (186 mm) wall-to-spout outlet.
•
12 gpm (gallons per minute) maximum flow rate.
•
Lever handles with red/blue indexing (ADA compliant with
correct installation).
•
Less drain.
•
Adjustable flanges.
•
External NPT connections.
Material
•
Brass construction.
Triton® Bowe® Cannock
12 gpm service sink faucet
K-730T70-4AR
™
Installation
•
Pairs with the Brockway wall-mounted wash sink.
Recommended Products/Accessories
K-3200 Utility Sink
K-3202 Utility Sink
K-3203 Utility Sink
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant Bright NickelSR
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-22-2020 08:12 - US/CA
Page 2

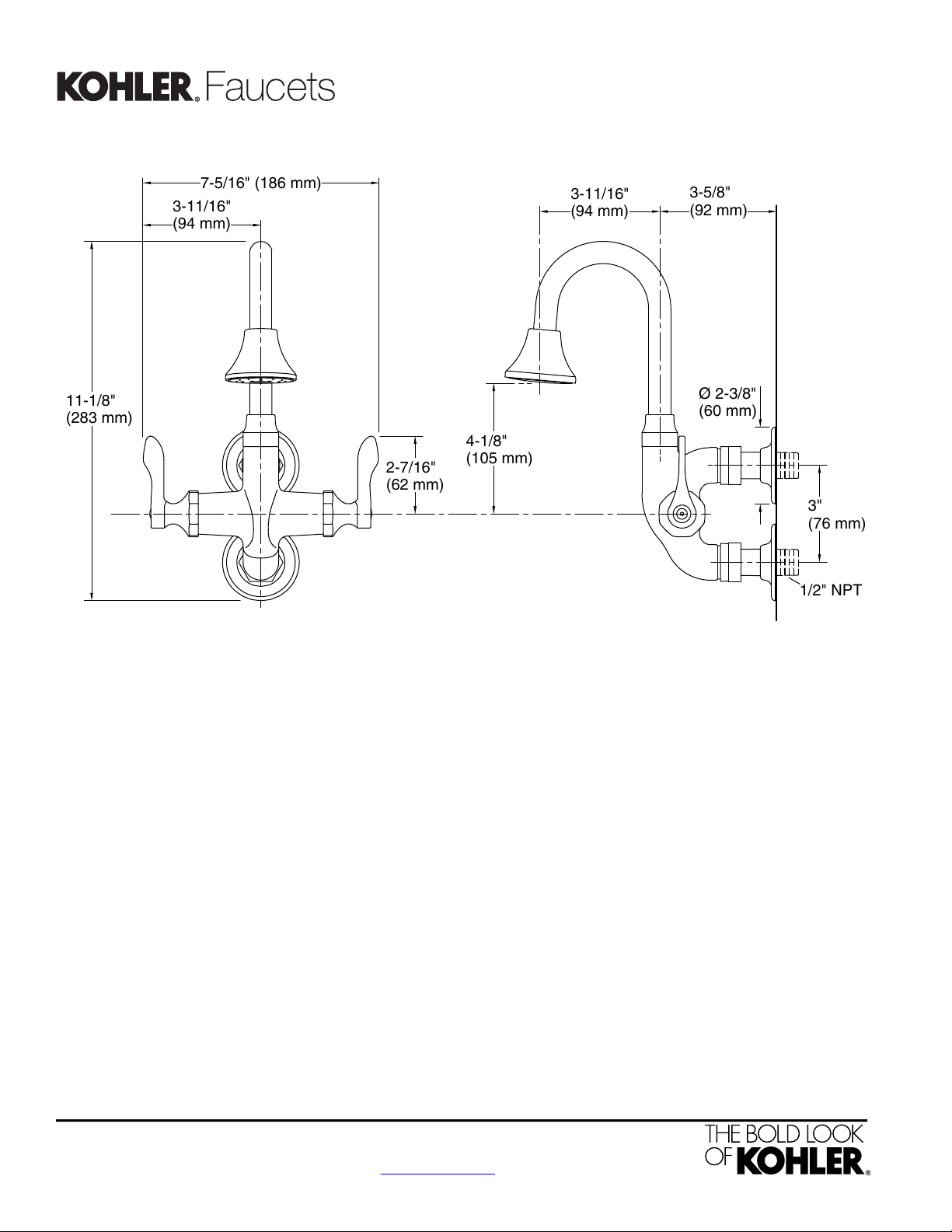

3-11/16"
(94 mm)
1/2" NPT
4-1/8"
(105 mm)
11-1/8"
(283 mm)
Ø 2-3/8"
(60 mm)
3-11/16"
(94 mm)
3"
(76 mm)
7-5/16" (186 mm)
2-7/16"
(62 mm)
3-5/8"
(92 mm)
Triton® Bowe® Cannock
12 gpm service sink faucet
K-730T70-4AR
™
Technical Information
All product dimensions are nominal.
Faucet:
Spout:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-22-2020 08:12 - US/CA
Notes
Install this product according to the installation
instructions.
12 gal/min (45.4 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
3-11/16" (93 mm)Spout reach:
