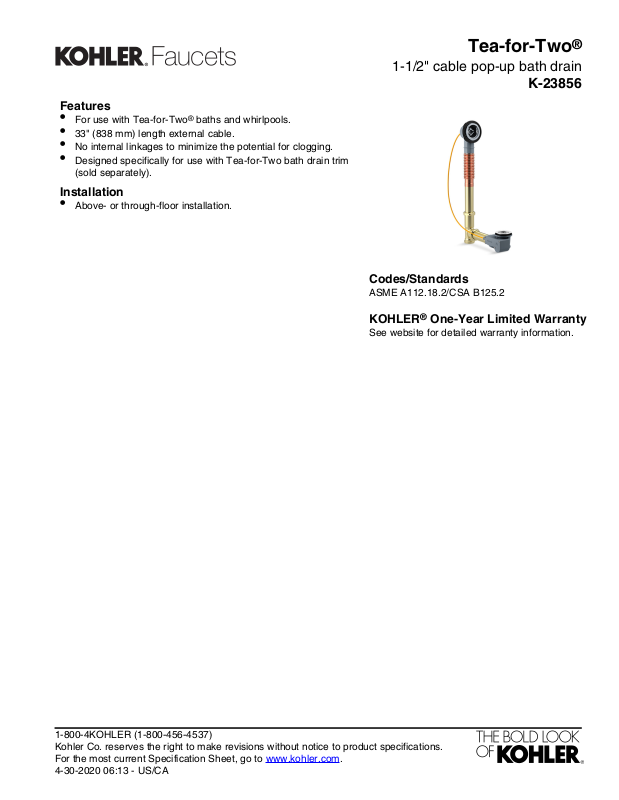

Features
•
For use with Tea-for-Two® baths and whirlpools.
•
33" (838 mm) length external cable.
•
No internal linkages to minimize the potential for clogging.
•
Designed specifically for use with Tea-for-Two bath drain trim
(sold separately).
Installation
•
Above- or through-floor installation.
Tea-for-Two
®
1-1/2" cable pop-up bath drain
K-23856
Codes/Standards
ASME A112.18.2/CSA B125.2
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-30-2020 06:13 - US/CA
2-1/8"
(54 mm)
1-3/4"
(44 mm)
1-3/4"
(44 mm)
3-13/16"
(97 mm)
9-1/2" (241 mm) Min
14-13/16" (376 mm) Max
Through-the-Floor
Above-the-Floor
19-11/16"
(500 mm) Min
22-7/8"
(581 mm) Max
1-1/2" PVC Tee
1-1/2" PVC Tee
2-1/8"
(54 mm)
3-13/16"
(97 mm)
1-7/8"
(48 mm)
1-7/8"
(48 mm)
9-1/2" (241 mm) Min
14-13/16" (376 mm) Max
19-11/16"
(500 mm) Min
22-7/8"
(581 mm) Max
Tea-for-Two
®
1-1/2" cable pop-up bath drain
K-23856
Technical Information
All product dimensions are nominal.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-30-2020 06:13 - US/CA
YesDrain included:
Notes
Install this product according to the installation
instructions.
