Features
•
Solid brass construction for durability and reliability.
•
Contemporary design offers an attractive alternative to traditional
P-trap fittings.
•
Removable trap eye for easy cleaning.
•
1-1/4" (32 mm) diameter slip-fit inlet.
•
Includes 12" extension tube.
Material
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Intended for console table and vessel installations.
Bottle Trap
K-9033
Recommended Products/Accessories
K-23726 Drain treatment
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.2/CSA B125.2
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Polished NickelSN
Vibrant® French GoldAF
Vibrant® Moderne Brushed GoldBGD
Vibrant® Brushed NickelBN
Vibrant® Brushed BronzeBV
Oil-Rubbed BronzeBRZ
Oil-Rubbed Bronze2BZ
Matte BlackBL
Vibrant TitaniumTT
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-28-2020 07:08 - US/CA

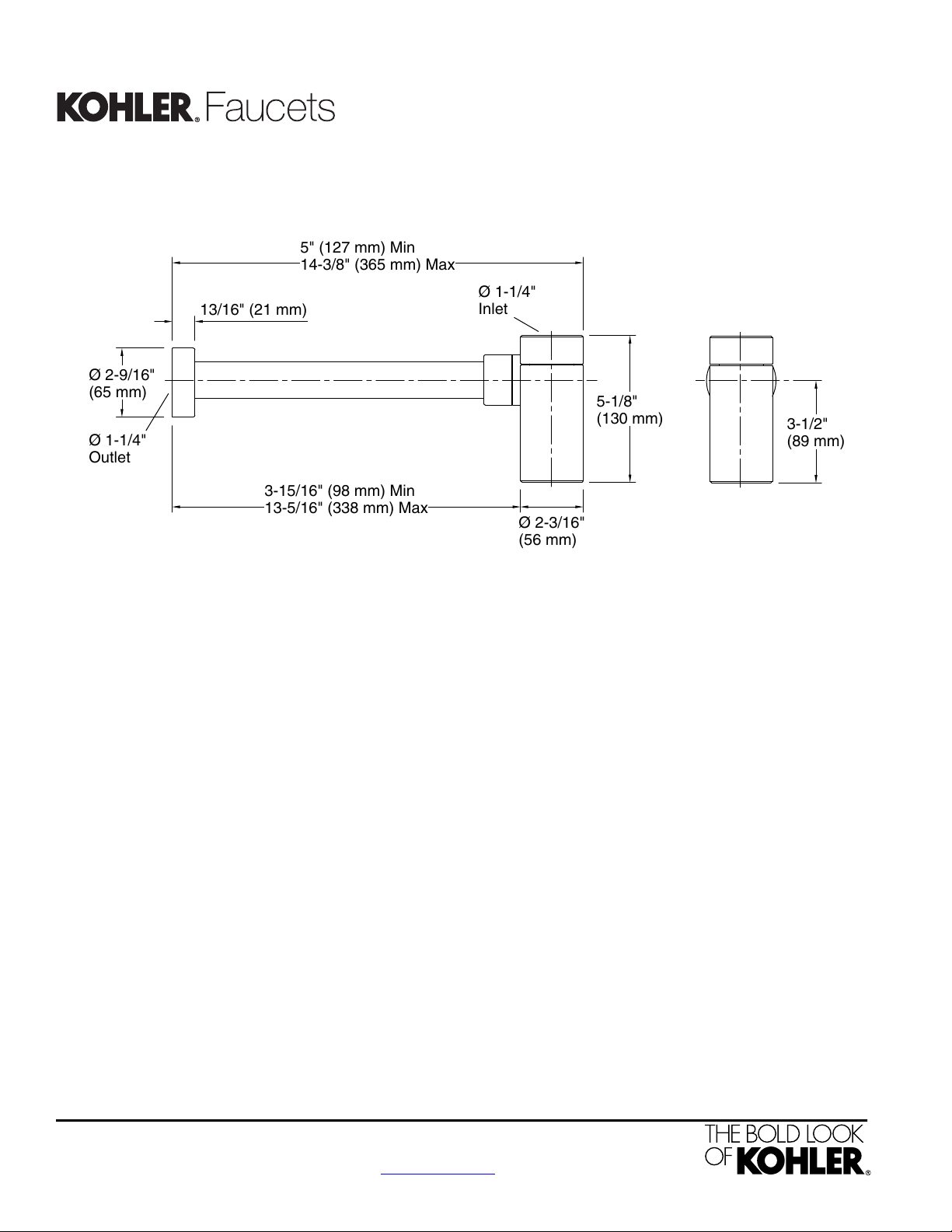

Ø 1-1/4"
Outlet
Ø 2-9/16"
(65 mm)
3-15/16" (98 mm) Min
13-5/16" (338 mm) Max
Ø 2-3/16"
(56 mm)
3-1/2"
(89 mm)
5-1/8"
(130 mm)
Ø 1-1/4"
Inlet
5" (127 mm) Min
14-3/8" (365 mm) Max
13/16" (21 mm)
Bottle Trap
K-9033
Technical Information
All product dimensions are nominal.
NoDrain included:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-28-2020 07:08 - US/CA
Notes
Install this product according to the installation
guide.
