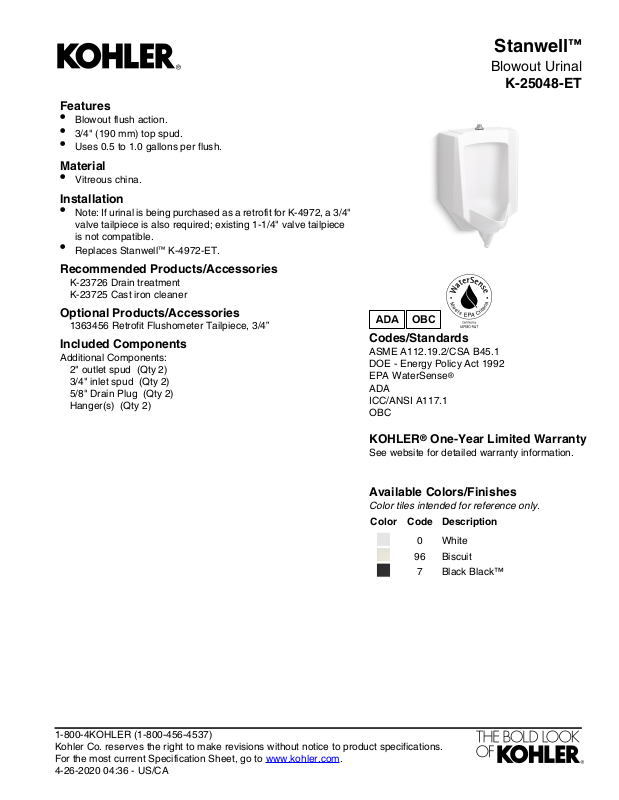

Page 1
Features
OBC
•
Blowout flush action.
•
3/4" (190 mm) top spud.
•
Uses 0.5 to 1.0 gallons per flush.
Material
•
Vitreous china.
Installation
•
Note: If urinal is being purchased as a retrofit for K-4972, a 3/4"
valve tailpiece is also required; existing 1-1/4" valve tailpiece
is not compatible.
•
Replaces Stanwell™ K-4972-ET.
Recommended Products/Accessories
K-23726 Drain treatment
K-23725 Cast iron cleaner
Optional Products/Accessories
1363456 Retrofit Flushometer Tailpiece, 3/4”
Included Components
Additional Components:
2" outlet spud (Qty 2)
3/4" inlet spud (Qty 2)
5/8" Drain Plug (Qty 2)
Hanger(s) (Qty 2)
Stanwell
Blowout Urinal
Codes/Standards
ASME A112.19.2/CSA B45.1
DOE - Energy Policy Act 1992
EPA WaterSense
ADA
ICC/ANSI A117.1
OBC
®
™
K-25048-ET
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Black Black™7
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-26-2020 04:36 - US/CA
Page 2
Floor
2" NPT
Tap
22" (559 mm)
Standard
Installation
14" (356 mm)
ADA Installation
14-1/2"
(368 mm)
24" (610 mm)
Standard
Installation
17" (432 mm)
ADA Installation
19"
(483 mm)
27"
(686 mm)
40-1/8"
(1019 mm)
To Floor for
Regular
Installation
Wall
Hangers
12" (305 mm)
18-1/2" (470 mm)
Outlet Detail
6" (152 mm)
2" NPT
Tap
1/4"
(6 mm)
2-1/4"
(57 mm) Min
3/4"
Spud
Stanwell
™
Blowout Urinal
K-25048-ET
Technical Information
All product dimensions are nominal.
Blow-outFlush outlet
technology:
3/4, Inlet, TopSpud size:
0.5 gal (1.9 L)Min. Water per Flush:
1 gal (3.8 L)Max. Water per Flush:
Designed for the above water use when installed with a
water-saving flushometer.
Notes
Install this product according to the installation
instructions.
Refer to manufacturer’s instructions and local
codes for flushometer requirements.
ADA, OBC compliant when installed to the
specific requirements of these regulations.
Pressure and Supply Requirements
25 psi (172.4 kPa)Fixture pressure min
(static):
80 psi (551.6 kPa)Fixture pressure max
(static):
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-26-2020 04:36 - US/CA
