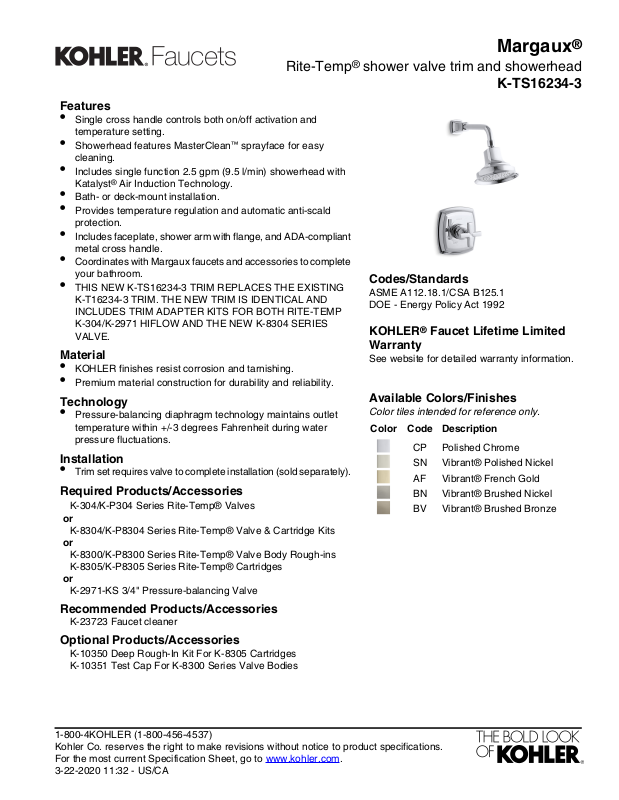

Rite-Temp® shower valve trim and showerhead
Features
•
Single cross handle controls both on/off activation and
temperature setting.
•
Showerhead features MasterClean™ sprayface for easy
cleaning.
•
Includes single function 2.5 gpm (9.5 l/min) showerhead with
Katalyst® Air Induction Technology.
•
Bath- or deck-mount installation.
•
Provides temperature regulation and automatic anti-scald
protection.
•
Includes faceplate, shower arm with flange, and ADA-compliant
metal cross handle.
•
Coordinates with Margaux faucets and accessories to complete
your bathroom.
•
THIS NEW K-TS16234-3 TRIM REPLACES THE EXISTING
K-T16234-3 TRIM. THE NEW TRIM IS IDENTICAL AND
INCLUDES TRIM ADAPTER KITS FOR BOTH RITE-TEMP
K-304/K-2971 HIFLOW AND THE NEW K-8304 SERIES
VALVE.
Material
•
KOHLER finishes resist corrosion and tarnishing.
•
Premium material construction for durability and reliability.
Technology
•
Pressure-balancing diaphragm technology maintains outlet
temperature within +/-3 degrees Fahrenheit during water
pressure fluctuations.
Installation
•
Trim set requires valve to complete installation (sold separately).
Required Products/Accessories
K-304/K-P304 Series Rite-Temp® Valves
or
K-8304/K-P8304 Series Rite-Temp® Valve & Cartridge Kits
or
K-8300/K-P8300 Series Rite-Temp® Valve Body Rough-ins
K-8305/K-P8305 Series Rite-Temp® Cartridges
or
K-2971-KS 3/4" Pressure-balancing Valve
Margaux
K-TS16234-3
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Polished NickelSN
Vibrant® French GoldAF
Vibrant® Brushed NickelBN
Vibrant® Brushed BronzeBV
®
Recommended Products/Accessories
K-23723 Faucet cleaner
Optional Products/Accessories
K-10350 Deep Rough-In Kit For K-8305 Cartridges
K-10351 Test Cap For K-8300 Series Valve Bodies
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-22-2020 11:32 - US/CA
4-7/16" (113 mm)
6-1/2"
(165 mm)
10-5/16"
(262 mm)
Typical
6-1/2"
(165 mm)
2-1/8"
(54 mm)
K-2971-KS,
K-304 Valves
K-8300 Valve
Series
Finished Wall
*If 3-1/2" (89 mm) to
4-1/4" (108 mm) use
deep roughing-in kit.
1/2"
NPT
7-3/16"
(183 mm)
3-9/16"
(90 mm)
Threaded Spout:
Extend 1/2" NPT pipe 7/16"
(11 mm) from finished wall.
Margaux
®
Rite-Temp® shower valve trim and showerhead
K-TS16234-3
Technical Information
All product dimensions are nominal.
Showerhead/Body Spray:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-22-2020 11:32 - US/CA
Notes
Install the product according to the installation
NoDrain included:
2.5 gal/min (9.5 l/min)Rated maximum flow:
80 psi (5.5 bar)Pressure:
guide.
NOTICE: Risk of product damage. Long screws,
for installing trim, can damage the K-2971-KS
valve. Consult the trim installation guide to verify
if the thin wall installation kit (88526) is needed.
