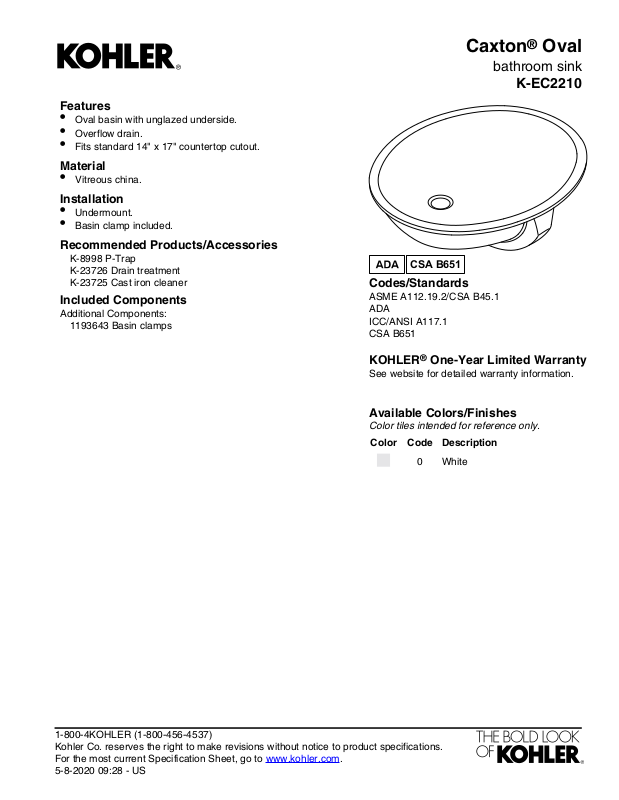

Features
CSA B651
•
Oval basin with unglazed underside.
•
Overflow drain.
•
Fits standard 14" x 17" countertop cutout.
Material
•
Vitreous china.
Installation
•
Undermount.
•
Basin clamp included.
Recommended Products/Accessories
K-8998 P-Trap
K-23726 Drain treatment
K-23725 Cast iron cleaner
Included Components
Additional Components:
1193643 Basin clamps
Caxton® Oval
bathroom sink
K-EC2210
Codes/Standards
ASME A112.19.2/CSA B45.1
ADA
ICC/ANSI A117.1
CSA B651
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-8-2020 09:28 - US
1-1/4" OD
4" (102 mm)
7-3/8"
(187 mm)
1/2"
(13 mm)
19-3/8" (492 mm)
3-3/4"
(95 mm)
1-1/8"
(29 mm)
9-11/16"
(246 mm)
16-3/16"
(411 mm)
14"
(356 mm)
3/8" Cold
3/8" Hot
3" (76 mm)
24" (610 mm)
9" (229 mm) Min
Recommended ADA Installation
11"
(279 mm)
8"
(203 mm)
Min
27"
(686 mm)
Min
34"
(864 mm)
13"
(330 mm)
Caxton® Oval
bathroom sink
K-EC2210
Technical Information
All product dimensions are nominal.
Under-mountInstallation:
Bowl area:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-8-2020 09:28 - US
Length: 17" (432 mm)
Width: 14" (356 mm)
With overflow: Yes
Water depth: 4" (102 mm)
YesWith overflow:
1-3/4" (44 mm)Drain hole:
1151011-7, required, not includedTemplate:
Notes
Install this product according to the installation
instructions.
ADA, CSA B651 compliant when installed to the
specific requirements of these regulations.
