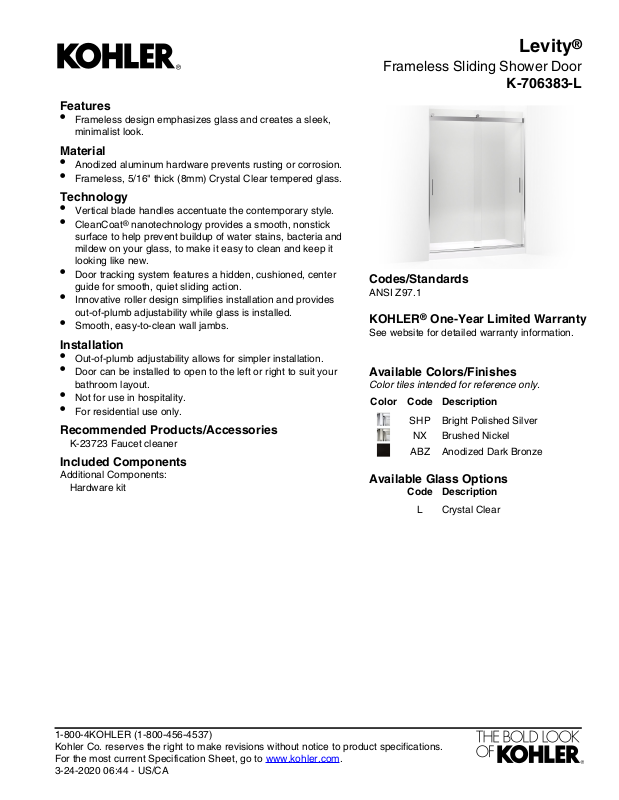

Page 1
Features
•
Frameless design emphasizes glass and creates a sleek,
minimalist look.
Material
•
Anodized aluminum hardware prevents rusting or corrosion.
•
Frameless, 5/16" thick (8mm) Crystal Clear tempered glass.
Technology
•
Vertical blade handles accentuate the contemporary style.
•
CleanCoat® nanotechnology provides a smooth, nonstick
surface to help prevent buildup of water stains, bacteria and
mildew on your glass, to make it easy to clean and keep it
looking like new.
•
Door tracking system features a hidden, cushioned, center
guide for smooth, quiet sliding action.
•
Innovative roller design simplifies installation and provides
out-of-plumb adjustability while glass is installed.
•
Smooth, easy-to-clean wall jambs.
Installation
•
Out-of-plumb adjustability allows for simpler installation.
•
Door can be installed to open to the left or right to suit your
bathroom layout.
•
Not for use in hospitality.
•
For residential use only.
Recommended Products/Accessories
K-23723 Faucet cleaner
Included Components
Additional Components:
Hardware kit
Levity
®
Frameless Sliding Shower Door
K-706383-L
Codes/Standards
ANSI Z97.1
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Bright Polished SilverSHP
Brushed NickelNX
Anodized Dark BronzeABZ
Available Glass Options
DescriptionCode
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-24-2020 06:44 - US/CA
Crystal ClearL
Page 2
3" (76 mm)
3"
(76 mm)
4"
(102 mm)
2-3/4"
(70 mm)
3-5/16"
(84 mm)
3-3/8"
(86 mm)
2-15/16"
(75 mm)
*Walk-through
*24-9/16" (624 mm) Min
*27-9/16" (700 mm) Max
*71"
(1803 mm)
78-1/4"
(1988 mm)
56-5/8" (1438 mm) Min
59-5/8" (1514 mm) Max
Levity
®
Frameless Sliding Shower Door
K-706383-L
Technical Information
All product dimensions are nominal.
– Max:
Glass coating:
For shower base installationInstallation type:
Sliding/BypassOpening style:
56-5/8" (1438 mm)Opening Width - Min:
59-5/8" (1514 mm)Opening Width - Max:
24-9/16" (624 mm)Walk-through - Min:
27-9/16" (700 mm)Walk-through - Max:
1/2" (13 mm)Base-To-Wall Radius
5/16" (8 mm)Glass thickness:
CleanCoat
Notes
Install this product according to the installation
instructions.
If replacing a shower door, the narrow wall jamb
design of this door may not cover the existing
®
shower door holes.
The vertical opening should be a minimum of
80-1/2" (2045 mm) to allow for installation
clearance.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-24-2020 06:44 - US/CA
