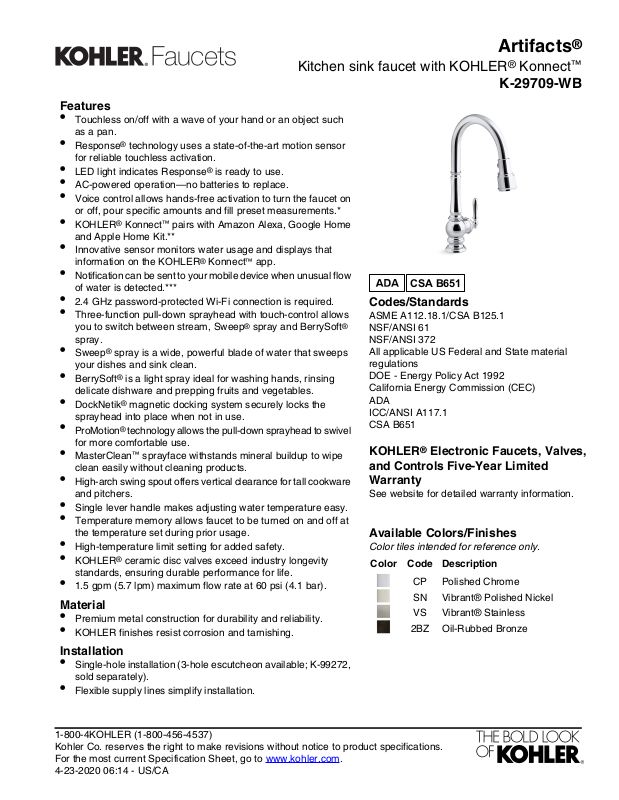

Page 1
CSA B651
Kitchen sink faucet with KOHLER® Konnect
Features
•
Touchless on/off with a wave of your hand or an object such
as a pan.
•
Response® technology uses a state-of-the-art motion sensor
for reliable touchless activation.
•
LED light indicates Response® is ready to use.
•
AC-powered operation—no batteries to replace.
•
Voice control allows hands-free activation to turn the faucet on
or off, pour specific amounts and fill preset measurements.*
•
KOHLER® Konnect™ pairs with Amazon Alexa, Google Home
and Apple Home Kit.**
•
Innovative sensor monitors water usage and displays that
information on the KOHLER® Konnect™ app.
•
Notification can be sent to your mobile device when unusual flow
of water is detected.***
•
2.4 GHz password-protected Wi-Fi connection is required.
•
Three-function pull-down sprayhead with touch-control allows
you to switch between stream, Sweep® spray and BerrySoft
spray.
•
Sweep® spray is a wide, powerful blade of water that sweeps
your dishes and sink clean.
•
BerrySoft® is a light spray ideal for washing hands, rinsing
delicate dishware and prepping fruits and vegetables.
•
DockNetik® magnetic docking system securely locks the
sprayhead into place when not in use.
•
ProMotion® technology allows the pull-down sprayhead to swivel
for more comfortable use.
•
MasterClean™ sprayface withstands mineral buildup to wipe
clean easily without cleaning products.
•
High-arch swing spout offers vertical clearance for tall cookware
and pitchers.
•
Single lever handle makes adjusting water temperature easy.
•
Temperature memory allows faucet to be turned on and off at
the temperature set during prior usage.
•
High-temperature limit setting for added safety.
•
KOHLER® ceramic disc valves exceed industry longevity
standards, ensuring durable performance for life.
•
1.5 gpm (5.7 lpm) maximum flow rate at 60 psi (4.1 bar).
Material
•
Premium metal construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Artifacts
K-29709-WB
Codes/Standards
ASME A112.18.1/CSA B125.1
®
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
CSA B651
KOHLER® Electronic Faucets, Valves,
and Controls Five-Year Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Polished NickelSN
Vibrant® StainlessVS
Oil-Rubbed Bronze2BZ
®
™
Installation
•
Single-hole installation (3-hole escutcheon available; K-99272,
sold separately).
•
Flexible supply lines simplify installation.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-23-2020 06:14 - US/CA
Page 2
26-1/2"
(673 mm)
Ø 1-5/16"
3-3/16"
(81 mm)
6-7/16" (164 mm)
2-5/16"
(59 mm)
4-1/8"
(105 mm)
60"
(1524 mm)
Power Supply
(120 V AC required)
Manual bypass can
face either left or right.
Control
Box
9-1/16"
(230 mm)
9-5/8"
(244 mm)
17-5/8"
(448 mm)
Ø 2-1/2"
(64 mm)
2-1/2"
(64 mm)
Max
6"
(152 mm)
4-7/16"
(113 mm)
3/8"Compression
Fittings
Artifacts
Kitchen sink faucet with KOHLER® Konnect
K-29709-WB
®
™
Technical Information
All product dimensions are nominal.
Faucet:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-23-2020 06:14 - US/CA
1.5 gal/min (5.7 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
NoDrain included:
Notes
Install this product according to the installation
instructions.
ADA, CSA B651 compliant when installed to the
specific requirements of these regulations.
