CSA B651

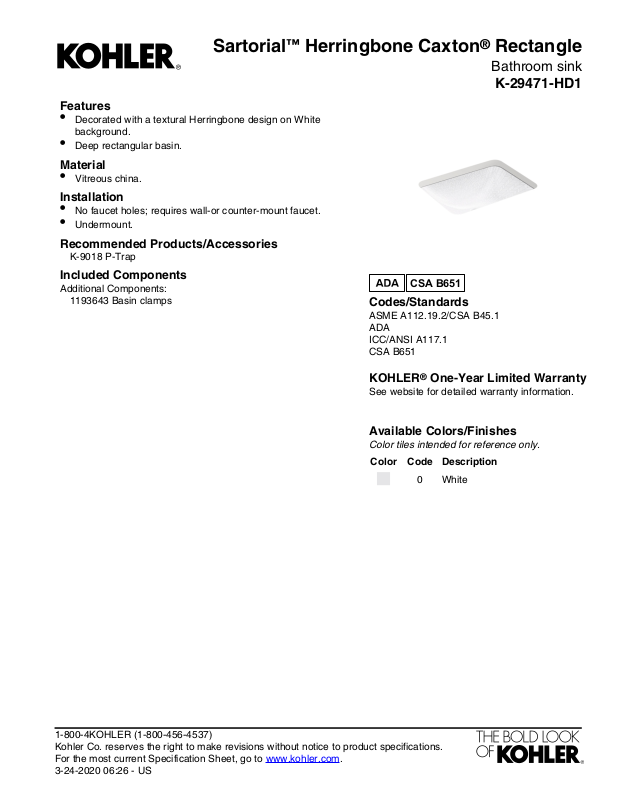

Sartorial™ Herringbone Caxton® Rectangle
Features
•
Decorated with a textural Herringbone design on White
background.
•
Deep rectangular basin.
Material
•
Vitreous china.
Installation
•
No faucet holes; requires wall-or counter-mount faucet.
•
Undermount.
Recommended Products/Accessories
K-9018 P-Trap
Included Components
Additional Components:
1193643 Basin clamps
Bathroom sink
K-29471-HD1
Codes/Standards
ASME A112.19.2/CSA B45.1
ADA
ICC/ANSI A117.1
CSA B651
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-24-2020 06:26 - US
12-15/16"
(329 mm)
13-5/8"
(346 mm)
3/8" Hot
3/8" Cold
4" (102 mm)
1-1/4" OD
15/16"
(24 mm)
24" (610 mm)
9" (229 mm) Min
Recommended ADA Installation
11"
(279 mm)
8"
(203 mm)
Min
27"
(686 mm)
Min
34"
(864 mm)
7-3/4"
(197 mm)
19-15/16" (506 mm)
9/16"
(14 mm)
10"
(254 mm)
15-1/2"
(394 mm)
7-5/16"
(186 mm)
4"
(102 mm)
Sartorial™ Herringbone Caxton® Rectangle
Bathroom sink
K-29471-HD1
Technical Information
All product dimensions are nominal.
UndermountInstallation:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-24-2020 06:26 - US
Notes
Install this product according to the installation
instructions.
NOTICE: Countertop manufacturer or cutter must
use the cut-out template provided with the
product, or a current one provided by Kohler Co.
(call 1-800-4-KOHLER). Kohler Co. is not
responsible for cutout errors when the incorrect
cut-out template is used.
ADA, CSA B651 compliant when installed to the
specific requirements of these regulations.
