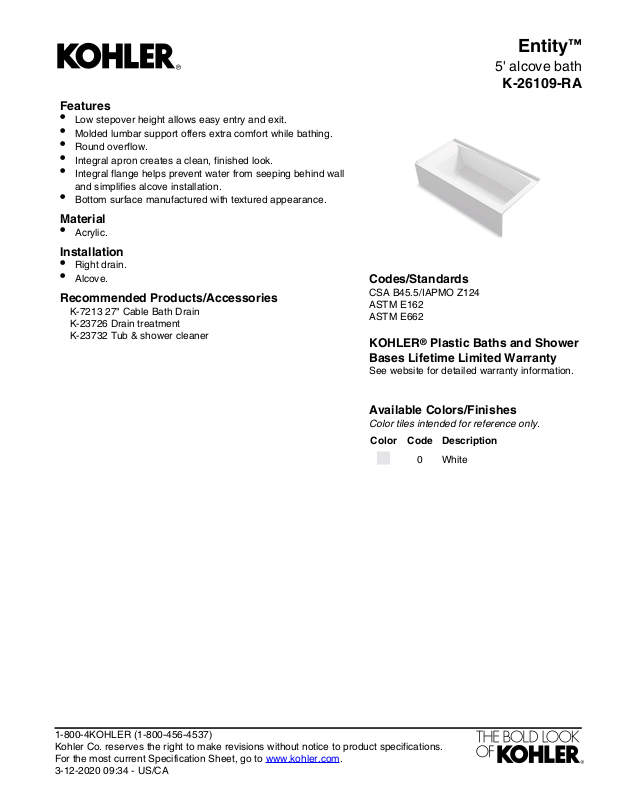

Page 1
Features
•
Low stepover height allows easy entry and exit.
•
Molded lumbar support offers extra comfort while bathing.
•
Round overflow.
•
Integral apron creates a clean, finished look.
•
Integral flange helps prevent water from seeping behind wall
and simplifies alcove installation.
•
Bottom surface manufactured with textured appearance.
Material
•
Acrylic.
Installation
•
Right drain.
•
Alcove.
Recommended Products/Accessories
K-7213 27" Cable Bath Drain
K-23726 Drain treatment
K-23732 Tub & shower cleaner
Entity
™
5' alcove bath
K-26109-RA
Codes/Standards
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
KOHLER® Plastic Baths and Shower
Bases Lifetime Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-12-2020 09:34 - US/CA
Page 2
No change in measurements
if connected with drain illustrated. (K-7213)
1-1/4"
(32 mm)
3/8"
(10 mm) R
Integral Flange Detail
1-1/2" Bath Drain
Lumbar
Angle 22°
7-5/16"
(186 mm)
14"
(356 mm)
30-1/4"
(768 mm)
60" (1524 mm)
4-1/16"
(103 mm)
1-1/4"
(32 mm)
15-3/4"
(400 mm)
3-1/4"
(83 mm)
11-1/8"
(283 mm)
4-7/16"
(113 mm)
Entity
™
5' alcove bath
K-26109-RA
Technical Information
All product dimensions are nominal.
Three-wall alcoveInstallation:
RightDrain location:
66 lbs (29.9 kg)Weight:
36 lbs/ft² (175.8 kg/m²)Minimum floor load:
9" (229 mm)Water depth:
42 gal (159 L)Water capacity:
2-7/8" (73 mm)Minimum flat for door:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-12-2020 09:34 - US/CA
Notes
Measure your actual product for rough-in details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
