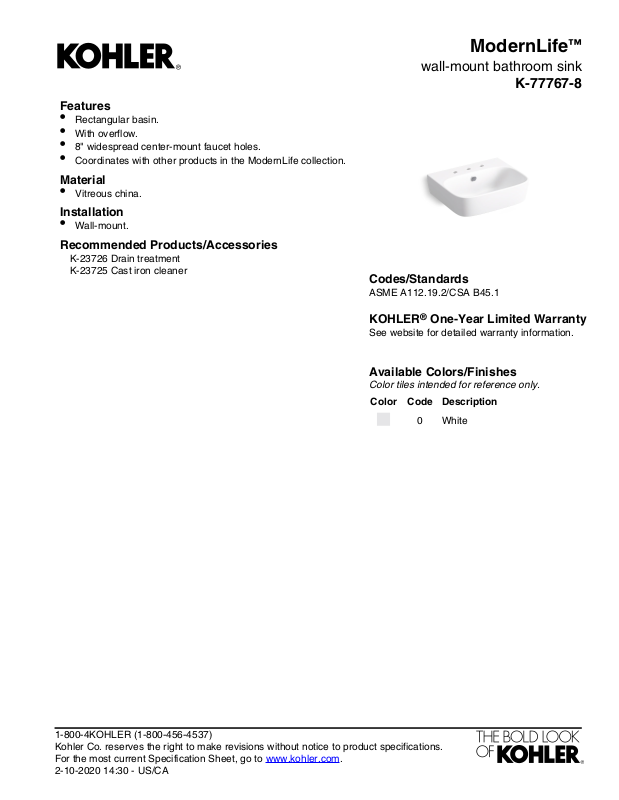

Features
•
Rectangular basin.
•
With overflow.
•
8" widespread center-mount faucet holes.
•
Coordinates with other products in the ModernLife collection.
Material
•
Vitreous china.
Installation
•
Wall-mount.
Recommended Products/Accessories
K-23726 Drain treatment
K-23725 Cast iron cleaner
ModernLife
™
wall-mount bathroom sink
K-77767-8
Codes/Standards
ASME A112.19.2/CSA B45.1
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
2-10-2020 14:30 - US/CA
Finished Floor
32-1/2"
(826 mm)
34"
(864 mm)
12-5/8"
(321 mm)
11"
(279 mm)
4" (102 mm)
Anchor Holes
12-3/16"
(310 mm)
7-13/16"
(198 mm)
21-11/16" (551 mm)
2-1/2"
(64 mm)
3/8" Hot
3/8" Cold
6"
(152 mm)
1-1/4" OD
10-13/16"
(275 mm)
17-3/4"
(451 mm)
8-3/8"
(213 mm)
ModernLife
™
wall-mount bathroom sink
K-77767-8
Technical Information
All product dimensions are nominal.
Wall-mountInstallation:
3Number of deck holes:
8" (203 mm)Faucet hole spacing:
1-3/4" (44 mm)Drain hole:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
2-10-2020 14:30 - US/CA
Notes
Install this product according to the installation
instructions.
