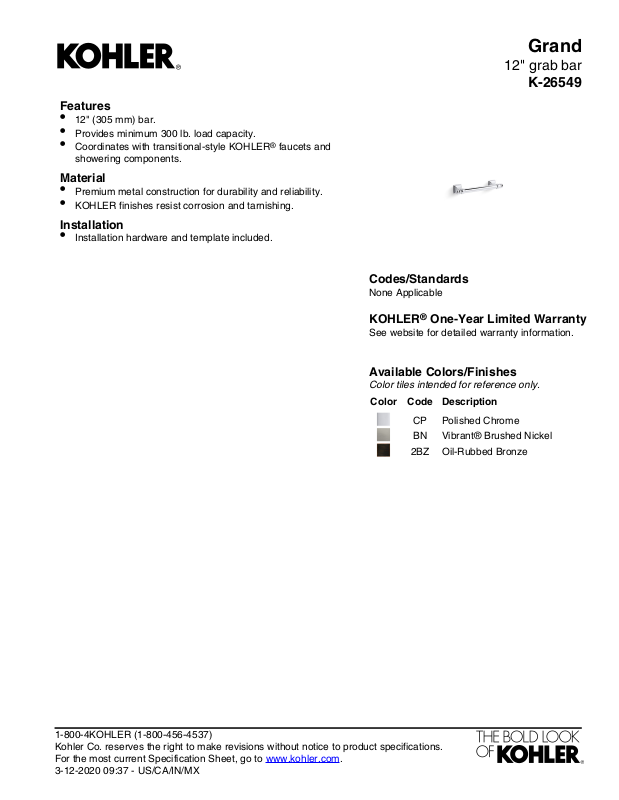

Page 1
Features
•
12" (305 mm) bar.
•
Provides minimum 300 lb. load capacity.
•
Coordinates with transitional-style KOHLER® faucets and
showering components.
Material
•
Premium metal construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Installation hardware and template included.
Grand
12" grab bar
K-26549
Codes/Standards
None Applicable
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Brushed NickelBN
Oil-Rubbed Bronze2BZ
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-12-2020 09:37 - US/CA/IN/MX
Page 2
2-11/16"
(68 mm)
3-15/16"
(100 mm)
15-11/16" (398 mm)
12" (305 mm)
Grand
12" grab bar
K-26549
Technical Information
All product dimensions are nominal.
Wall-mountInstallation Type:
Zinc, Stainless SteelMaterial:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-12-2020 09:37 - US/CA/IN/MX
Notes
Measure your actual product for roughing-in
details.
WARNING: Risk of personal injury. The wall
plates on the grab bar must be mounted to a
brace between the wall studs. This will ensure
that the weight of the user is adequately
supported.
