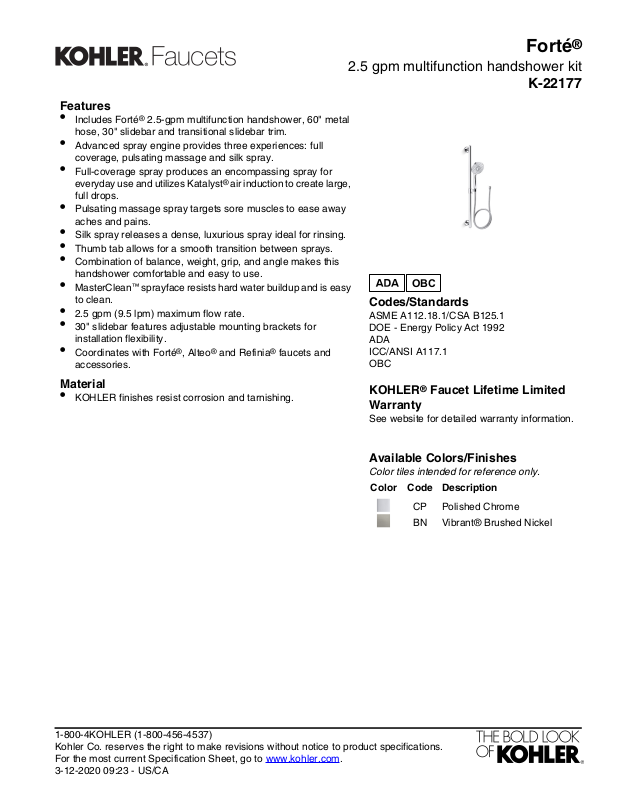

Page 1
Features
OBC
•
Includes Forté® 2.5-gpm multifunction handshower, 60" metal
hose, 30" slidebar and transitional slidebar trim.
•
Advanced spray engine provides three experiences: full
coverage, pulsating massage and silk spray.
•
Full-coverage spray produces an encompassing spray for
everyday use and utilizes Katalyst® air induction to create large,
full drops.
•
Pulsating massage spray targets sore muscles to ease away
aches and pains.
•
Silk spray releases a dense, luxurious spray ideal for rinsing.
•
Thumb tab allows for a smooth transition between sprays.
•
Combination of balance, weight, grip, and angle makes this
handshower comfortable and easy to use.
•
MasterClean™ sprayface resists hard water buildup and is easy
to clean.
•
2.5 gpm (9.5 lpm) maximum flow rate.
•
30" slidebar features adjustable mounting brackets for
installation flexibility.
•
Coordinates with Forté®, Alteo® and Refinia® faucets and
accessories.
Forté
®
2.5 gpm multifunction handshower kit
K-22177
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
ADA
ICC/ANSI A117.1
OBC
Material
•
KOHLER finishes resist corrosion and tarnishing.
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Brushed NickelBN
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-12-2020 09:23 - US/CA
Page 2
5-5/8"
(143 mm)
3" (76 mm)
28"
(711 mm)
3-11/16"
(94 mm)
10-9/16"
(268 mm)
Ø 5-1/16"
(129 mm)
Ø 2-1/4"
(57 mm)
60" (1524 mm)
Overall Length
G1/2
G1/2
Forté
®
2.5 gpm multifunction handshower kit
K-22177
Technical Information
All product dimensions are nominal.
Handshower:
2.5 gal/min (9.5 l/min)Rated maximum flow:
45 psi (3.1 bar)Pressure:
Notes
Install this product according to the installation
instructions.
IMPORTANT! The slide bar must be mounted to
stud framing supports at both the top and bottom
mounting locations. Plastic wall anchors will not
support the slide bar. Do not use or depend on
plastic wall anchors to attach the slide bar.
Plumbing codes may require that an atmospheric
vacuum breaker be installed in-line to
handshowers. Consult with local codes.
ADA, OBC compliant when installed to the
specific requirements of these regulations.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-12-2020 09:23 - US/CA
