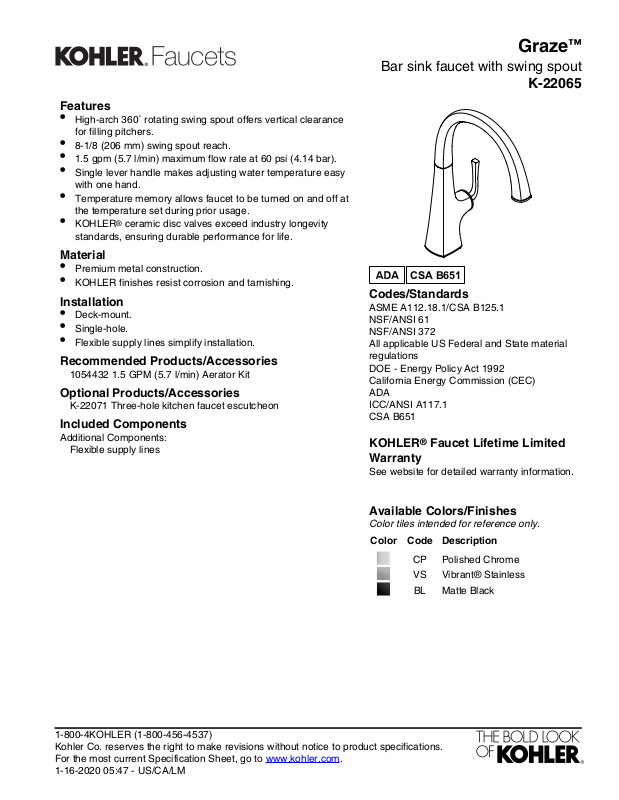

Page 1
Features
CSA B651
•
High-arch 360˚ rotating swing spout offers vertical clearance
for filling pitchers.
•
8-1/8 (206 mm) swing spout reach.
•
1.5 gpm (5.7 l/min) maximum flow rate at 60 psi (4.14 bar).
•
Single lever handle makes adjusting water temperature easy
with one hand.
•
Temperature memory allows faucet to be turned on and off at
the temperature set during prior usage.
•
KOHLER® ceramic disc valves exceed industry longevity
standards, ensuring durable performance for life.
Material
•
Premium metal construction.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Deck-mount.
•
Single-hole.
•
Flexible supply lines simplify installation.
Recommended Products/Accessories
1054432 1.5 GPM (5.7 l/min) Aerator Kit
Optional Products/Accessories
K-22071 Three-hole kitchen faucet escutcheon
Included Components
Additional Components:
Flexible supply lines
Graze
Bar sink faucet with swing spout
K-22065
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
CSA B651
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
™
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® StainlessVS
Matte BlackBL
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
1-16-2020 05:47 - US/CA/LM
Page 2
27"
(686 mm)
3/8"
Compression
Fittings
4-7/16"
(113 mm)
6-1/16"
(154 mm)
3-1/16"
(78 mm)
2-1/8"
(54 mm)
2-3/8"
(60 mm)
Ø 1-5/16"
2-1/2"
(64 mm)
Max
8-1/8" (206 mm)
8-9/16"
(217 mm)
13-3/4"
(349 mm)
Graze
™
Bar sink faucet with swing spout
K-22065
Technical Information
All product dimensions are nominal.
Faucet:
1.5 gal/min (5.7 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
NoDrain included:
Notes
Install this product according to the installation
instructions.
ADA, CSA B651 compliant when installed to the
specific requirements of these regulations.
Spout:
8-1/8" (206 mm)Spout reach:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
1-16-2020 05:47 - US/CA/LM
