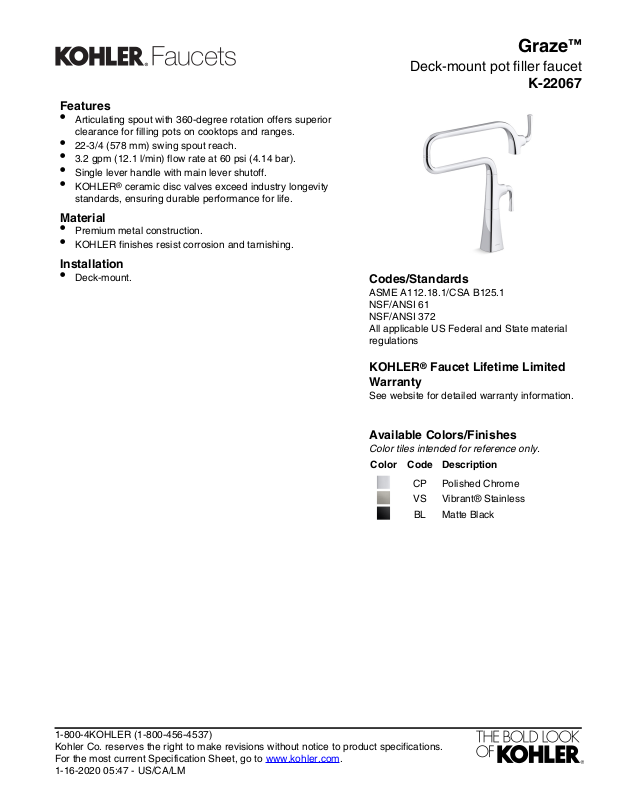

Page 1
Features
•
Articulating spout with 360-degree rotation offers superior
clearance for filling pots on cooktops and ranges.
•
22-3/4 (578 mm) swing spout reach.
•
3.2 gpm (12.1 l/min) flow rate at 60 psi (4.14 bar).
•
Single lever handle with main lever shutoff.
•
KOHLER® ceramic disc valves exceed industry longevity
standards, ensuring durable performance for life.
Material
•
Premium metal construction.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Deck-mount.
Graze
Deck-mount pot filler faucet
K-22067
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
™
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® StainlessVS
Matte BlackBL
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
1-16-2020 05:47 - US/CA/LM
Page 2
1/2"-14 NPSM
3-7/16"
(87 mm)
Ø 7/8"
2-1/2"
(64 mm)
Max
2-15/16"
(75 mm)
7-1/8"
(181 mm)
15-5/8"
(397 mm)
3-5/16"
(84 mm)
2-1/4"
(57 mm)
2-1/2"
(64 mm)
2-15/16"
(75 mm)
11-1/4"
(286 mm)
9-9/16" (243 mm)
13-3/16" (335 mm)
2-11/16"
(68 mm)
2-15/16"
(75 mm)
Graze
™
Deck-mount pot filler faucet
K-22067
Technical Information
All product dimensions are nominal.
Faucet:
3.2 gal/min (12.1 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
NoDrain included:
Notes
Install this product according to the installation
instructions.
Supply hose not included. Requires a flexible
supply hose with a 3/8" compression nut and
1/2-14 NPSM nut.
Spout:
22-3/4" (578 mm)Spout reach:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
1-16-2020 05:47 - US/CA/LM
