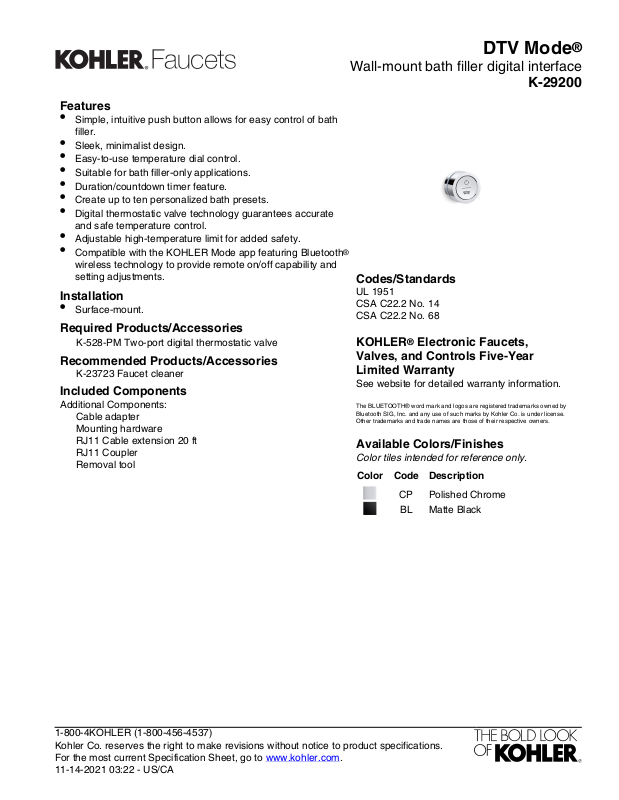

Page 1
DTV Mode
Features
•
Simple, intuitive push button allows for easy control of bath
filler.
•
Sleek, minimalist design.
•
Easy-to-use temperature dial control.
•
Suitable for bath filler-only applications.
•
Duration/countdown timer feature.
•
Create up to ten personalized bath presets.
•
Digital thermostatic valve technology guarantees accurate
and safe temperature control.
•
Adjustable high-temperature limit for added safety.
•
Compatible with the KOHLER Mode app featuring Bluetooth
®
wireless technology to provide remote on/off capability and
setting adjustments.
Installation
•
Surface-mount.
Required Products/Accessories
K-528-PM Two-port digital thermostatic valve
Recommended Products/Accessories
K-23723 Faucet cleaner
Included Components
Additional Components:
Cable adapter
Mounting hardware
RJ11 Cable extension 20 ft
RJ11 Coupler
Removal tool
Codes/Standards
UL 1951
CSA C22.2 No. 14
CSA C22.2 No. 68
KOHLER® Electronic Faucets,
Valves, and Controls Five-Year
Limited Warranty
See website for detailed warranty information.
The BLUETOOTH® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Kohler Co. is under license.
Other trademarks and trade names are those of their respective owners.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
BL Matte Black
®
Wall-mount bath filler digital interface
K-29200
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
11-14-2021 03:22 - US/CA
Page 2
DTV Mode
1-9/16"
(40 mm)
10-1/2"
(267 mm)
Cable Length
Ø 1-1/4"
(32 mm)
12" (305 mm)
Recommended
58" (1473 mm)
To Floor
Ø 2-1/2"
(64 mm)
Technical Information
All product dimensions are nominal.
Drain included: No
Bluetooth® range: 32 ft (9.8 m)
Bluetooth® version: 4.1
Max. Ambient temp: 125°F (51.7°C)
Min. Operating
temp:
86°F (30°C)
Max. Operating
temp:
120°F (48.9°C)
Max. Relative
humidity
condensing:
100%
Notes
Install this product according to the installation
instructions.
®
Wall-mount bath filler digital interface
K-29200
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
11-14-2021 03:22 - US/CA
