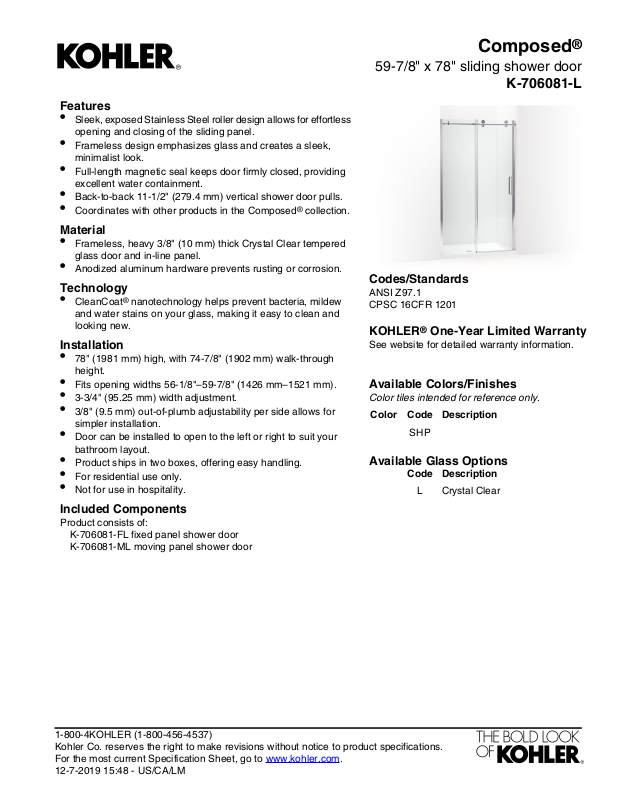

Page 1
Features
•
Sleek, exposed Stainless Steel roller design allows for effortless
opening and closing of the sliding panel.
•
Frameless design emphasizes glass and creates a sleek,
minimalist look.
•
Full-length magnetic seal keeps door firmly closed, providing
excellent water containment.
•
Back-to-back 11-1/2" (279.4 mm) vertical shower door pulls.
•
Coordinates with other products in the Composed® collection.
Material
•
Frameless, heavy 3/8" (10 mm) thick Crystal Clear tempered
glass door and in-line panel.
•
Anodized aluminum hardware prevents rusting or corrosion.
Technology
•
CleanCoat® nanotechnology helps prevent bacteria, mildew
and water stains on your glass, making it easy to clean and
looking new.
Installation
•
78" (1981 mm) high, with 74-7/8" (1902 mm) walk-through
height.
•
Fits opening widths 56-1/8"–59-7/8" (1426 mm–1521 mm).
•
3-3/4" (95.25 mm) width adjustment.
•
3/8" (9.5 mm) out-of-plumb adjustability per side allows for
simpler installation.
•
Door can be installed to open to the left or right to suit your
bathroom layout.
•
Product ships in two boxes, offering easy handling.
•
For residential use only.
•
Not for use in hospitality.
Composed
®
59-7/8" x 78" sliding shower door
K-706081-L
Codes/Standards
ANSI Z97.1
CPSC 16CFR 1201
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
SHP
Available Glass Options
DescriptionCode
Crystal ClearL
Included Components
Product consists of:
K-706081-FL fixed panel shower door
K-706081-ML moving panel shower door
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
12-7-2019 15:48 - US/CA/LM
Page 2
*20-13/16" (529 mm) Min
*24" (610 mm) Max
78"
(1981 mm)
56-1/8" (1426 mm) Min
59-7/8" (1521 mm) Max
4-7/16"
(113 mm)
*Walk-through
*74-7/8"
(1902 mm)
2-7/16"
(62 mm)
2-15/16"
(75 mm)
2-11/16" (68 mm)
Composed
®
59-7/8" x 78" sliding shower door
K-706081-L
Technical Information
All product dimensions are nominal.
Glass coating:
For shower base installationInstallation type:
56-1/8" (1426 mm)Opening Width - Min:
59-7/8" (1521 mm)Opening Width - Max:
20-13/16" (529 mm)Walk-through - Min:
24" (610 mm)Walk-through - Max:
3/8" (10 mm)Glass thickness:
CleanCoat
Notes
Install this product according to the installation
instructions.
The vertical opening should be a minimum of 80"
®
(2032 mm) to allow for installation clearance.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
12-7-2019 15:48 - US/CA/LM
