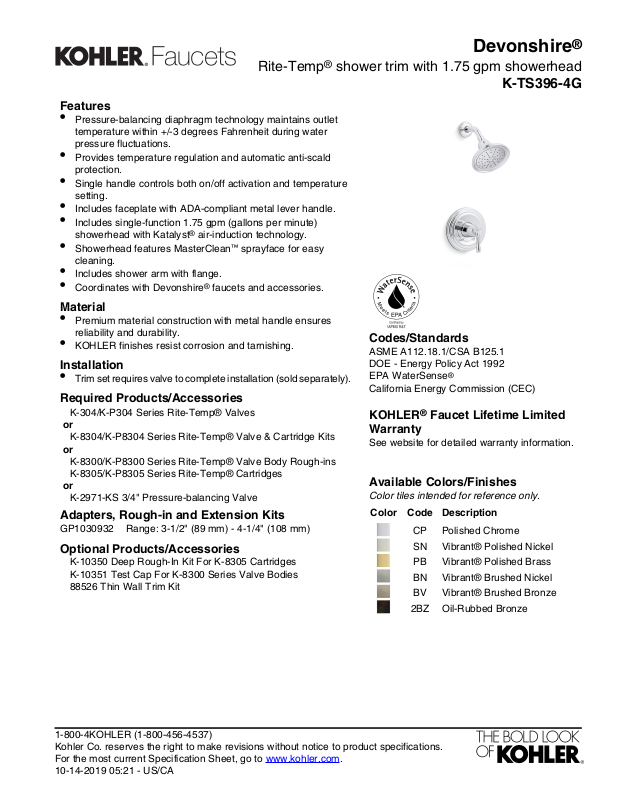

Page 1
Rite-Temp® shower trim with 1.75 gpm showerhead
Features
•
Pressure-balancing diaphragm technology maintains outlet
temperature within +/-3 degrees Fahrenheit during water
pressure fluctuations.
•
Provides temperature regulation and automatic anti-scald
protection.
•
Single handle controls both on/off activation and temperature
setting.
•
Includes faceplate with ADA-compliant metal lever handle.
•
Includes single-function 1.75 gpm (gallons per minute)
showerhead with Katalyst® air-induction technology.
•
Showerhead features MasterClean™ sprayface for easy
cleaning.
•
Includes shower arm with flange.
•
Coordinates with Devonshire® faucets and accessories.
Material
•
Premium material construction with metal handle ensures
reliability and durability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Trim set requires valve to complete installation (sold separately).
Required Products/Accessories
K-304/K-P304 Series Rite-Temp® Valves
or
K-8304/K-P8304 Series Rite-Temp® Valve & Cartridge Kits
or
K-8300/K-P8300 Series Rite-Temp® Valve Body Rough-ins
K-8305/K-P8305 Series Rite-Temp® Cartridges
or
K-2971-KS 3/4" Pressure-balancing Valve
Adapters, Rough-in and Extension Kits
Range: 3-1/2" (89 mm) - 4-1/4" (108 mm)GP1030932
Optional Products/Accessories
K-10350 Deep Rough-In Kit For K-8305 Cartridges
K-10351 Test Cap For K-8300 Series Valve Bodies
88526 Thin Wall Trim Kit
Devonshire
K-TS396-4G
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
EPA WaterSense
California Energy Commission (CEC)
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
®
DescriptionCodeColor
Polished ChromeCP
Vibrant® Polished NickelSN
Vibrant® Polished BrassPB
Vibrant® Brushed NickelBN
Vibrant® Brushed BronzeBV
Oil-Rubbed Bronze2BZ
®
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
10-14-2019 05:21 - US/CA
Page 2
1/2" NPT
Ø 7" (178 mm)
4-5/16''
(110 mm)
7-7/8" (200 mm)
Typical
Ø 2-7/16"
(62 mm)
4-9/16"
(116 mm)
3-3/16"
(81 mm)
K-2971-KS,
K-304 Valves
K-8300 Valve
Series
Finished Wall
*If 3-1/2" (89 mm) to
4-1/4" (108 mm) use
deep roughing-in kit.
Devonshire
®
Rite-Temp® shower trim with 1.75 gpm showerhead
K-TS396-4G
Technical Information
All product dimensions are nominal.
NoDrain included:
Showerhead/Body Spray:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
10-14-2019 05:21 - US/CA
1.75 gal/min (6.6 l/min)Rated maximum flow:
80 psi (5.5 bar)Pressure:
Notes
For use with automatic compensating valves rated
at 1.4 gal/min (5.3 l/min) or less.
Install this product according to the installation
instructions.
NOTICE: Risk of product damage. Long screws,
for installing trim, can damage the K-2971-KS
valve. Consult the trim installation guide to verify
if the thin wall installation kit is needed.
