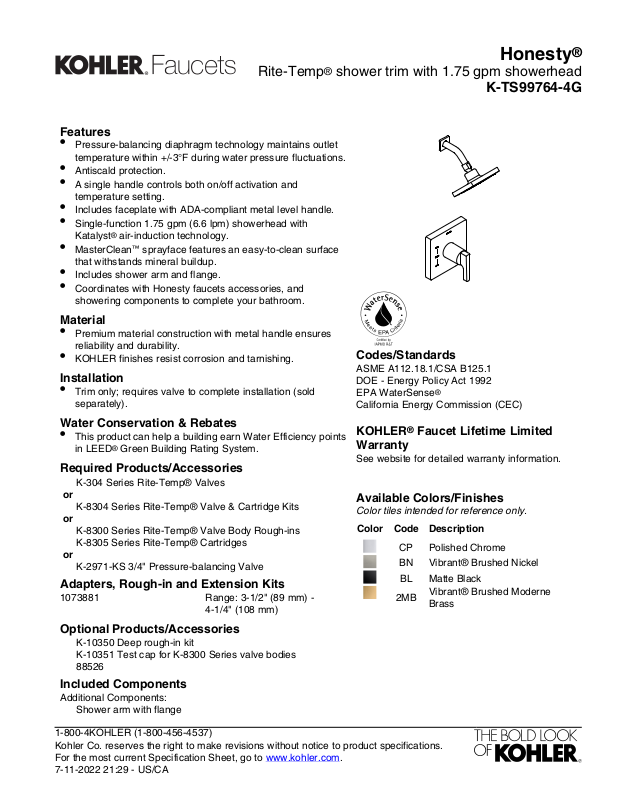

Features
•
Pressure-balancing diaphragm technology maintains outlet
temperature within +/-3°F during water pressure fluctuations.
•
Antiscald protection.
•
A single handle controls both on/off activation and
temperature setting.
•
Includes faceplate with ADA-compliant metal level handle.
•
Single-function 1.75 gpm (6.6 lpm) showerhead with
Katalyst® air-induction technology.
•
MasterClean™ sprayface features an easy-to-clean surface
that withstands mineral buildup.
•
Includes shower arm and flange.
•
Coordinates with Honesty faucets accessories, and
showering components to complete your bathroom.
Material
•
Premium material construction with metal handle ensures
reliability and durability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Trim only; requires valve to complete installation (sold
separately).
Water Conservation & Rebates
•
This product can help a building earn Water Efficiency points
in LEED® Green Building Rating System.
Required Products/Accessories
K-304 Series Rite-Temp® Valves
or
K-8304 Series Rite-Temp® Valve & Cartridge Kits
or
K-8300 Series Rite-Temp® Valve Body Rough-ins
K-8305 Series Rite-Temp® Cartridges
or
K-2971-KS 3/4" Pressure-balancing Valve
Adapters, Rough-in and Extension Kits
1073881 Range: 3-1/2" (89 mm) -
4-1/4" (108 mm)
Optional Products/Accessories
K-10350 Deep rough-in kit
K-10351 Test cap for K-8300 Series valve bodies
88526
Included Components
Additional Components:
Shower arm with flange
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
EPA WaterSense
®
California Energy Commission (CEC)
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
BN Vibrant® Brushed Nickel
BL Matte Black
2MB
Vibrant® Brushed Moderne
Brass
Honesty
®
Rite-Temp® shower trim with 1.75 gpm showerhead
K-TS99764-4G
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-11-2022 21:29 - US/CA
Honesty
1/2"-14 NPT
3-1/2"
(89 mm)
6-3/16"
(157 mm)
Typical
1-5/8"
(41 mm)
3-3/16"
(81 mm)
6-1/2"
(165 mm)
*If 3-1/2" (89 mm) to
4-1/4" (108 mm) use
deep roughing-in kit.
Finished Wall
4-1/2"
(114 mm)
6-1/2"
(165 mm)
K-2971-KS,
K-304 Valves
K-8300 Valve
Series
Technical Information
All product dimensions are nominal.
Drain included: No
Showerhead/Body Spray:
Rated maximum
flow:
1.75 gal/min (6.6 l/min)
Pressure: 80 psi (5.5 bar)
Notes
For use with automatic compensating valves
rated at 1.6 gal/min (6.1 l/min) or less.
Install this product according to the installation
instructions.
NOTICE: Risk of product damage. Long
screws, for installing trim, can damage the
K-2971-KS valve. Consult the trim installation
guide to verify if the thin wall installation kit
(88526) is needed.
®
Rite-Temp® shower trim with 1.75 gpm showerhead
K-TS99764-4G
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-11-2022 21:29 - US/CA
