Features
•
Pressure-balancing diaphragm technology maintains outlet
temperature within +/-3°F during water pressure fluctuations.
•
Provides temperature regulation and automatic anti-scald
protection.
•
Single handle controls both on/off activation and temperature
setting.
•
Includes faceplate with ADA-compliant metal lever handle.
•
Includes single-function 1.75 gpm (gallons per minute)
showerhead.
•
Showerhead features MasterClean™ sprayface for easy
cleaning.
•
Includes shower arm and flange.
•
Coordinates with Hint™ bathroom sink faucets and bath faucets.
Material
•
Premium material construction with metal handle ensures
reliability and durability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Trim only; requires valve to complete installation (sold
separately).
Required Products/Accessories
K-8304/K-P8304 Series Rite-Temp® Valve & Cartridge Kits
or
K-8300/K-P8300 Series Rite-Temp® Valve Body Rough-ins
K-8305/K-P8305 Series Rite-Temp® Cartridges
Pitch
®
Rite-Temp® 1.75 gpm shower trim
K-TS97077-4G
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
EPA WaterSense
California Energy Commission (CEC)
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
®
Optional Products/Accessories
K-10350 Deep Rough-In Kit For K-8305 Cartridges
K-10351 Test Cap For K-8300 Series Valve Bodies
Available Colors/Finishes
Color tiles intended for reference only.
Included Components
Additional Components:
Shower arm and flange
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
11-11-2019 06:14 - CA
DescriptionCodeColor
Polished ChromeCP
Vibrant® Brushed NickelBN

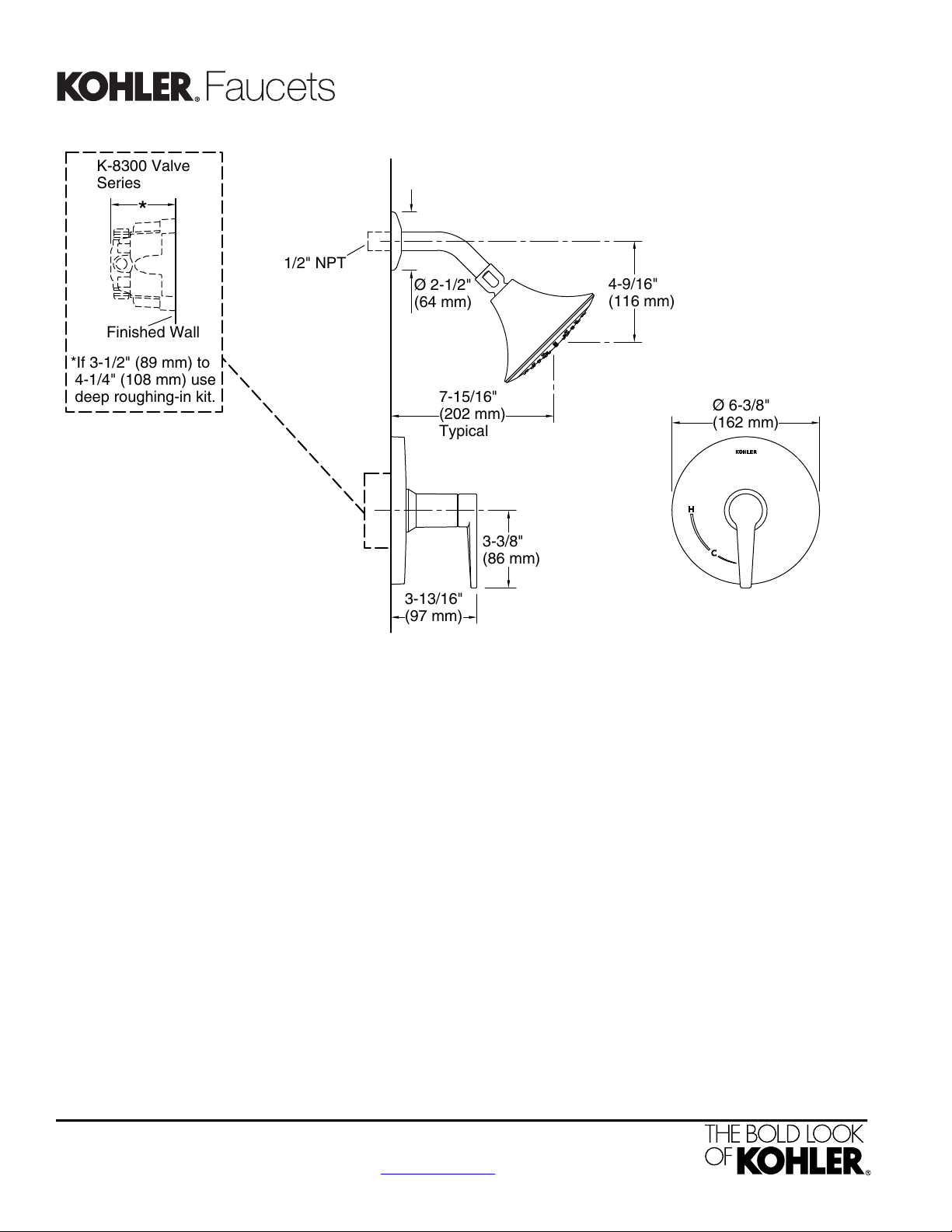

3-13/16"
(97 mm)
3-3/8"
(86 mm)
Ø 6-3/8"
(162 mm)
7-15/16"
(202 mm)
Typical
1/2" NPT
4-9/16"
(116 mm)
Ø 2-1/2"
(64 mm)
*If 3-1/2" (89 mm) to
4-1/4" (108 mm) use
deep roughing-in kit.
Finished Wall
K-8300 Valve
Series
Pitch
®
Rite-Temp® 1.75 gpm shower trim
K-TS97077-4G
Technical Information
All product dimensions are nominal.
Showerhead/Body Spray:
NoDrain included:
1.75 gal/min (6.6 l/min)Rated maximum flow:
80 psi (5.5 bar)Pressure:
Notes
For use with automatic compensating valves rated
at 1.5 gal/min (5.7 l/min) or less.
Install this product according to the installation
instructions.
NOTICE: Risk of product damage. Long screws,
for installing trim, can damage the K-2971-KS
valve. Consult the trim installation guide to verify
if the thin wall installation kit is needed.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
11-11-2019 06:14 - CA
