CSA B651
OBC
single-handle bathroom sink faucet with escutcheon
Features
•
Single lever handle allows for both on/off activation and
temperature setting.
•
KOHLER® ceramic disc valves exceed industry longevity
standards for a lifetime of durable performance.
•
Temperature memory allows faucet to be turned on and off at
any temperature setting.
•
High-temperature limit setting for added safety.
•
Includes metal pop-up drain with 1-1/4" metal tailpiece.
•
1.2 gpm (gallons per minute) maximum flow rate at 60 psi.
•
Coordinates with Pitch™ bath and shower trim.
Material
•
Premium metal construction.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Single-hole or three-hole installation (includes escutcheon plate).
•
Pre-attached flexible supply lines simplify installation.
Hint
K-97061-4
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
EPA WaterSense
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
CSA B651
OBC
®
™
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-7-2019 15:07 - US/CA/LM/MX
6-1/2"
Hint
™
single-handle bathroom sink faucet with escutcheon
K-97061-4

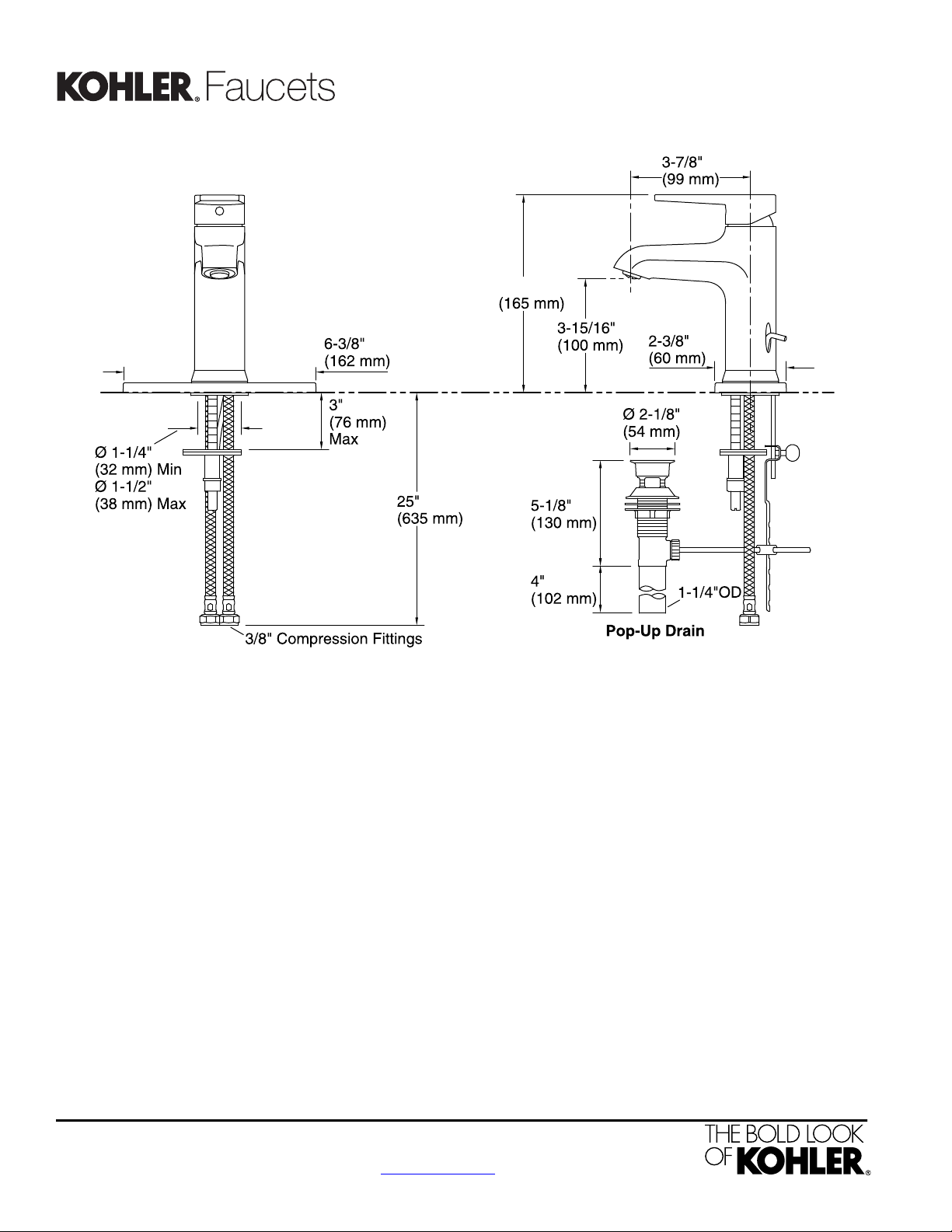

Technical Information
All product dimensions are nominal.
Faucet:
1.2 gal/min (4.5 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
Spout:
3-7/8" (99 mm)Spout reach:
Notes
Install this product according to the installation
instructions.
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-7-2019 15:07 - US/CA/LM/MX
