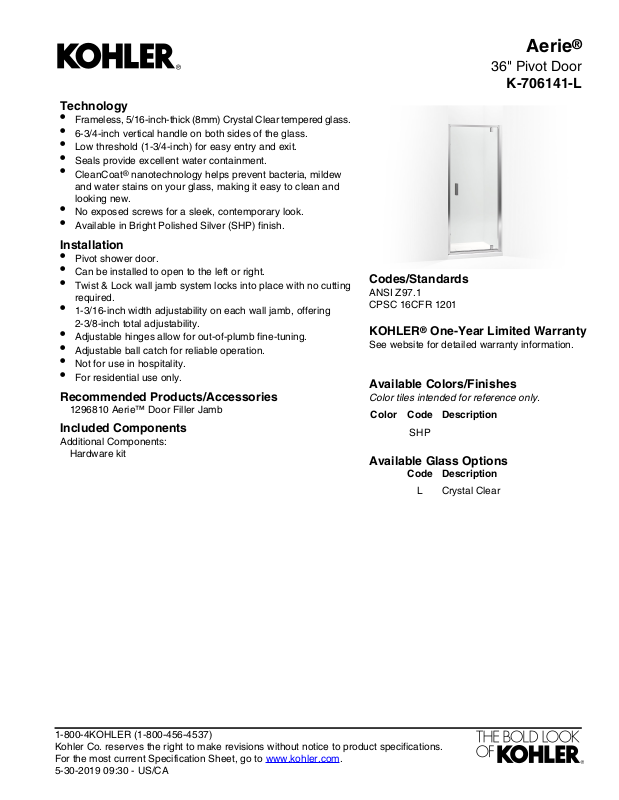

Page 1
Technology
•
Frameless, 5/16-inch-thick (8mm) Crystal Clear tempered glass.
•
6-3/4-inch vertical handle on both sides of the glass.
•
Low threshold (1-3/4-inch) for easy entry and exit.
•
Seals provide excellent water containment.
•
CleanCoat® nanotechnology helps prevent bacteria, mildew
and water stains on your glass, making it easy to clean and
looking new.
•
No exposed screws for a sleek, contemporary look.
•
Available in Bright Polished Silver (SHP) finish.
Installation
•
Pivot shower door.
•
Can be installed to open to the left or right.
•
Twist & Lock wall jamb system locks into place with no cutting
required.
•
1-3/16-inch width adjustability on each wall jamb, offering
2-3/8-inch total adjustability.
•
Adjustable hinges allow for out-of-plumb fine-tuning.
•
Adjustable ball catch for reliable operation.
•
Not for use in hospitality.
•
For residential use only.
Recommended Products/Accessories
1296810 Aerie™ Door Filler Jamb
Included Components
Additional Components:
Hardware kit
Aerie
®
36" Pivot Door
K-706141-L
Codes/Standards
ANSI Z97.1
CPSC 16CFR 1201
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
SHP
Available Glass Options
DescriptionCode
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-30-2019 09:30 - US/CA
Crystal ClearL
Page 2
3-5/8"
Aerie
®
36" Pivot Door
K-706141-L
Technical Information
All product dimensions are nominal.
For shower base installationInstallation type:
33-7/16" (850 mm)Opening Width - Min:
35-13/16" (910 mm)Opening Width - Max:
25" (635 mm)Walk-through - Min:
25" (635 mm)Walk-through - Max:
5/16" (8 mm)Glass thickness:
Glass coating:
CleanCoat
®
Notes
Install this product according to the installation
guide.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-30-2019 09:30 - US/CA
