FAIRFAX
FEATURES
•
Metal construction
•
Brass valve body
•
Rite-Temp pressure-balancing diaphragm design valve
•
High-temperature limit stop
•
Pressure-balancing mechanism of one-piece diaphragm
cartridge design for ease of maintenance
•
Mixing valve cycles from “cold” to “hot”
•
Lever handle
•
Intended for use with Rite-Temp or Hi Flow Rite-Temp
valves
CODES/STANDARDS APPLICABLE
Specified model meets or exceeds the following:
•
ASME/ANSI A112.18.1M
•
ASSE/ANSI 1016
•
CSA B125
•
IAPMO/UPC
COLORS/FINISHES
• CP Polished Chrome
• PB Polished Brass
• Other Refer to Faucets Price Book for additional finis h-
SPECIFIED MODEL:
COMPLETE FAUCET: Faucet trim and Rite-Temp valve included.
BATH AND SHOWER F AUCETS
K-12007
ALSO K-T12007, K-12014, K-T12014,
K-T12021, K-304, K-306-KS
es
Model Description
K-12007-4S Bath and Shower Faucet, With Slip-Fit Diverter Bath Spout
K-12014-4 Shower Faucet
SEPARATE TRIM AND RITE-TEMP VALVE: For complete faucet, both faucet trim and Rite-Temp valve must be
specified.
Model Description
K-T12007-4 Bath and Shower Faucet Trim, With N.P.T. Diverter Bath Spout
K-T12007-4
S
K-T12014-4 Shower Faucet Trim
K-T12021-4 Valve Only Trim
Required and Optional Accessories on Page 2.
Bath and Shower Faucet Trim, With Slip-Fit Diverter Bath Spout
CP PB Other
CP PB Other
CP PB Other
CP
PB
Other
CP PB Other
CP PB Other
PRODUCT SPECIFICATION:
Rite-T emp pressure-balancing single-control bath and shower faucet shall be of metal construction. Faucet shall feature
a brass valve body. The valve shall mix the water from the “off” position, through the “cold” to the “hot”, and includes a
high-temperature limit stop. The pressure-balancing mechanism shall be of one-piece diaphragm cartridge design for
ease of maintenance. Bath and shower faucet shall include showerhead with arm and flange, faceplate with handle, and
4-7/8” diverter spout with N.P.T. or slip-fit connection. Shower only faucet shall include showerhead with arm and flange,
and faceplate with handle. Valve only trim shall include faceplate with handle. Complete faucet shall be Kohler Model
K-_________-_____-_____ OR separate trim and valve shall be Kohler Model K-T_________-_____-_____ with
K-304-_____-NA Rite-Temp valve OR K-306-KS-NA Hi Flow Rite-Temp valve.
Page 1 of 2
116143-4-DA (-)

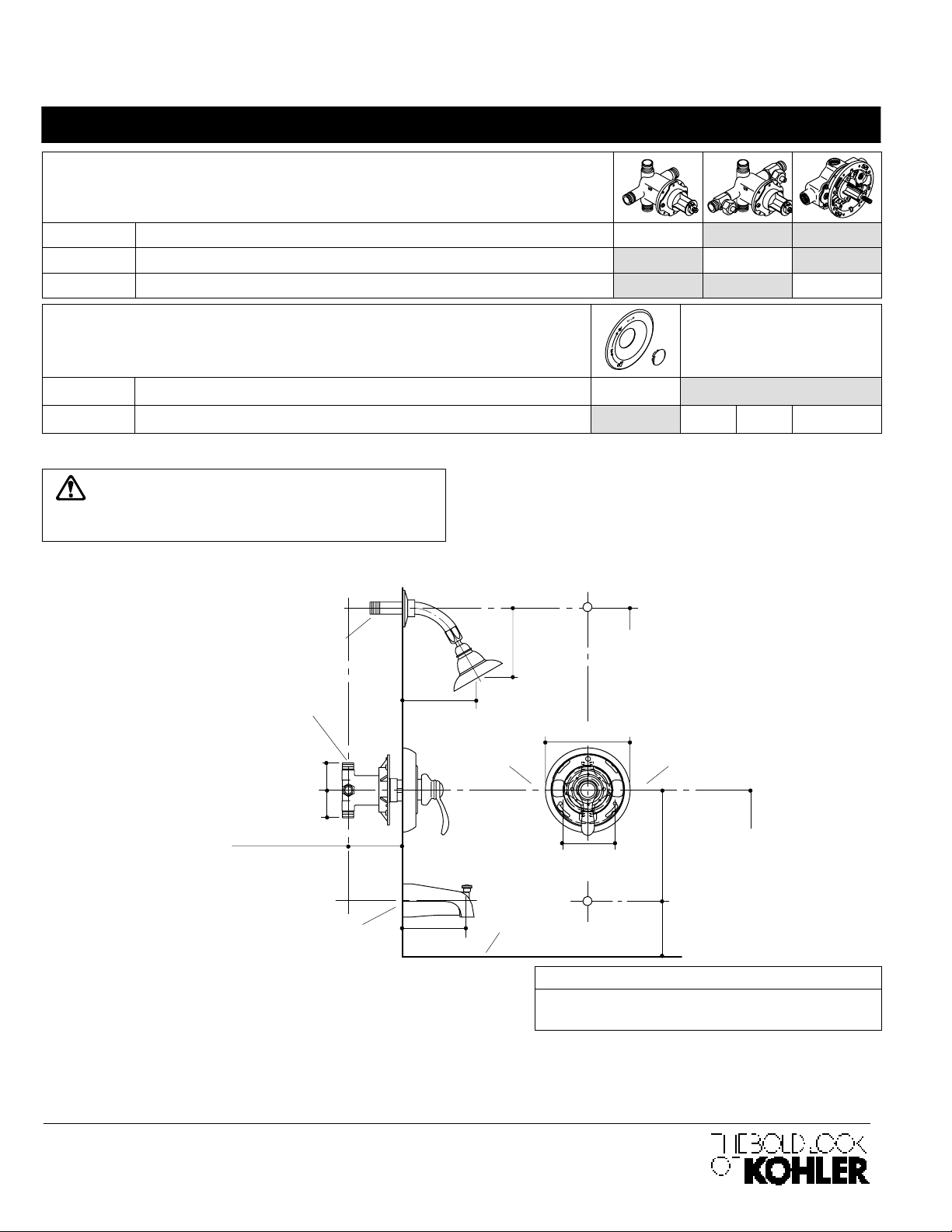

FAIRFAX
Required Accessory
(For K-T12007, K-T12014, and K-T12021 Only)
K-304-K Rite-Temp Valve Without Stops
K-304-KS Rite-Temp Valve With Stops
K-306-KS Hi Flow Rite-Temp Valve With Integral Stops
Optional Accessory
K-12002 Plug Button Set
88526 Hi Flow Rite-Temp Thin Wall Installation Kit
PRODUCT INFORMATION
WARNING: Risk of damage to the K-306-KS
valve assembly. When using the K-306-KS
valve in a fiberglass or acrylic installation, use
the thin wall installation kit (88526).
1/2” N.P.T.
1/2”-14 N.P.T. OR
5/8” I.D. FOR 1/2”
NOM. COPPER
TUBING
5-5/8”
NA
NA
NA
Other
CP PB Other
INSTALLA TION NOTES
Avoid cross-flow conditions. Do not install shut-off device on
either valve outlet.
Cap shower outlet if deck-mount spout, diverter, or
handshower is connected to spout outlet.
Install straight pipe or tube drop of 7 to 18” with single elbow
between valve and wall-mount spout.
5-1/2”
72”-78”
TO FLOOR
(TYPICAL)
6-1/2” D.
1/2” HOT 1/2” COLD
4” W/O
STOPS
TOP OF RIM
4-7/8”
Roughing-In Notes
Complete bath and shower faucet with K-304-K
Rite-Temp valve and slip-fit spout shown.
2-3/4”
THIN WALL
2-3/4” – 3-1/2”
THICK WALL
FOR SLIP-FI T SPO UT, 5/8” O.D.
TUBING MUST EXT END 1-1/2” MIN.;
2-7/8” MAX. BEYOND FINISHED WALL.
18
2”
2”
PRODUCT DIAGRAM
K-12007, K-T12007, K-12014, K-T12014, K-T12021 Fairfax Faucets
Page 2 of 2
116143-4-DA (-)
48” TO FLOOR
10”
(SHOWER ONLY)
4”
