freestanding Heated BubbleMassage™ air bath
Features
•
118 to 122 airjets release thousands of heated bubbles that
surround and support the body in a warm massage.
•
Purge cycles remove residual water from air channels after use
to keep the system clean.
•
Variable-speed blower lets you adjust massage intensity to 18
levels.
•
16" depth offers a deep soaking experience.
•
Integral lumbar support on both ends.
•
Bottom surface manufactured with textured appearance.
•
Wide ledge on one side is ideal for deck-mount faucet and/or
handshower.
•
Center drain.
•
Fluted shroud.
Material
•
Acrylic.
Stargaze
K-24019-GH
®
Hydrotherapy
•
Heated BubbleMassage™.
Technology
•
Built-in 600W BubbleMassage™ heater warms humidified air
before it enters the bath.
•
Bath includes auto purge (after bath drains) and manual purge
cycles to remove residual water and keep system clean.
•
Auto-shutoff timer on blower allows users to enjoy Heated
BubbleMassage™ experience for 60 minutes before turning off.
•
User interface: electronic keypad control.
Installation
•
Freestanding design creates a striking focal point in your bathing
area.
•
PureFlo™ drains are not recommended for a deck-mount faucet
installation.
•
Remote blower motor installation required (relocation kit is
included).
Recommended Products/Accessories
K-7265 Clearflo Bath Drain
K-37383 30" Rough-in Cable Bath Drain
K-37386 rough-in cable drain, PVC, 30" cable
K-24916 Wireless Music Kit
Codes/Standards
ASME A112.19.7/CSA B45.10
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
UL 1795
CSA C22.2 No. 218.2
Greenguard UL 2818 - Gold
KOHLER® Hydrotherapy Components
Five-Year Limited Warranty
KOHLER® Plastic Baths and Receptors
Lifetime Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-25-2019 20:08 - US

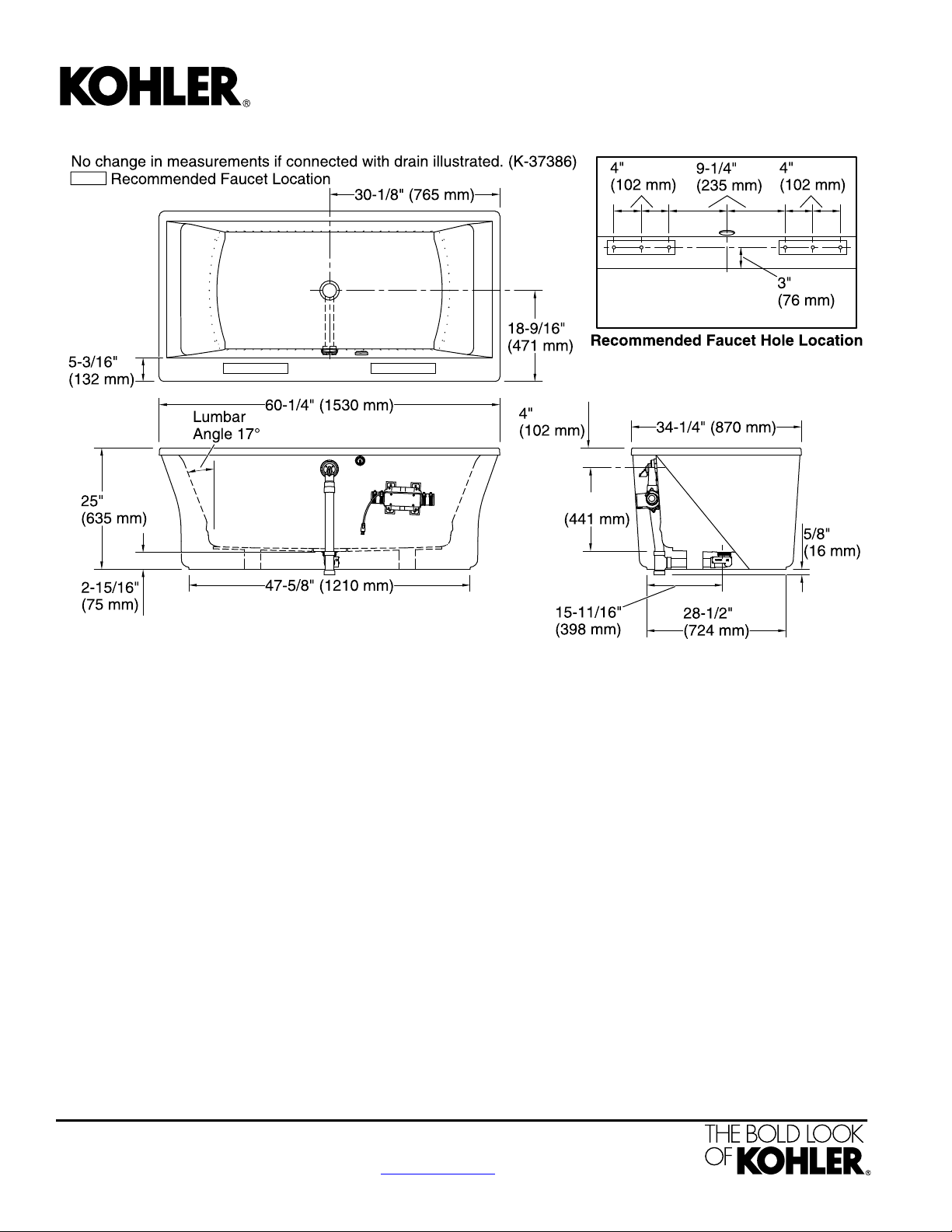

17-3/8"
Stargaze
®
freestanding Heated BubbleMassage™ air bath
K-24019-GH
Required Electrical Service
Two dedicated circuits required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device
(RCD).
120 V, 15 A, 60 HzBlower:
120 V, 15 A, 60 HzHeater:
Technical Information
All product dimensions are nominal.
FreestandingInstallation:
160 lbs (72.6 kg)Weight:
54 lbs/ft² (263.7 kg/m²)Minimum floor load:
18" (457 mm)Water depth:
60 gal (227.1 L)Water capacity:
Template:
Electrical component
rating:
Footprint, 1364290, not required, not
included
Blower: 120 V, 10 A, 60 Hz
Heater: 120 V, 5 A, 60 Hz
Notes
Measure your actual product for rough-in details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
Provide one grounded electrical outlet within 24"
(610 mm) of each component.
If installing a rim-mount faucet, make sure there
is no interference above or below the deck before
drilling any holes.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-25-2019 20:08 - US
