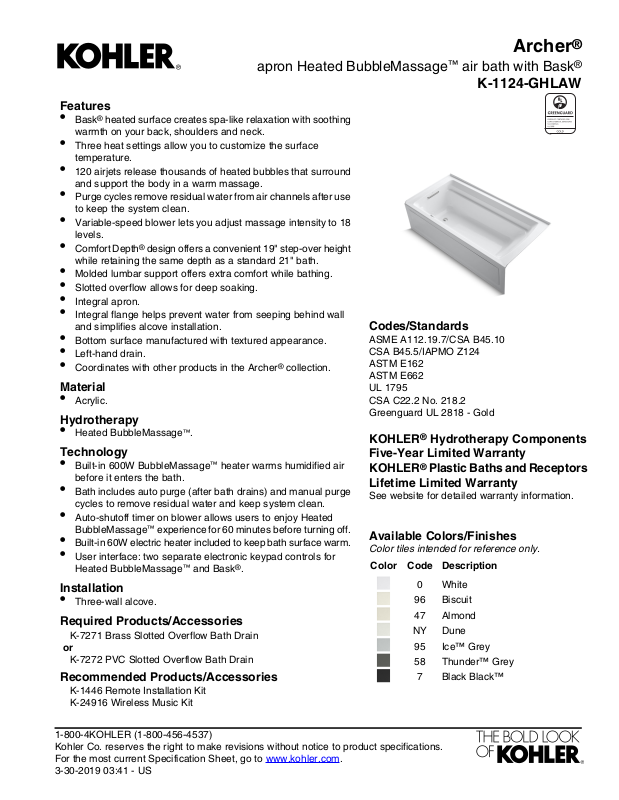

apron Heated BubbleMassage™ air bath with Bask
Features
•
Bask® heated surface creates spa-like relaxation with soothing
warmth on your back, shoulders and neck.
•
Three heat settings allow you to customize the surface
temperature.
•
120 airjets release thousands of heated bubbles that surround
and support the body in a warm massage.
•
Purge cycles remove residual water from air channels after use
to keep the system clean.
•
Variable-speed blower lets you adjust massage intensity to 18
levels.
•
Comfort Depth® design offers a convenient 19" step-over height
while retaining the same depth as a standard 21" bath.
•
Molded lumbar support offers extra comfort while bathing.
•
Slotted overflow allows for deep soaking.
•
Integral apron.
•
Integral flange helps prevent water from seeping behind wall
and simplifies alcove installation.
•
Bottom surface manufactured with textured appearance.
•
Left-hand drain.
•
Coordinates with other products in the Archer® collection.
Material
•
Acrylic.
Hydrotherapy
•
Heated BubbleMassage™.
Technology
•
Built-in 600W BubbleMassage™ heater warms humidified air
before it enters the bath.
•
Bath includes auto purge (after bath drains) and manual purge
cycles to remove residual water and keep system clean.
•
Auto-shutoff timer on blower allows users to enjoy Heated
BubbleMassage™ experience for 60 minutes before turning off.
•
Built-in 60W electric heater included to keep bath surface warm.
•
User interface: two separate electronic keypad controls for
Heated BubbleMassage™ and Bask®.
Installation
•
Three-wall alcove.
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
or
K-7272 PVC Slotted Overflow Bath Drain
Recommended Products/Accessories
K-1446 Remote Installation Kit
K-24916 Wireless Music Kit
Archer
®
®
K-1124-GHLAW
Codes/Standards
ASME A112.19.7/CSA B45.10
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
UL 1795
CSA C22.2 No. 218.2
Greenguard UL 2818 - Gold
KOHLER® Hydrotherapy Components
Five-Year Limited Warranty
KOHLER® Plastic Baths and Receptors
Lifetime Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
Ice™ Grey95
Thunder™ Grey58
Black Black™7
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-30-2019 03:41 - US
1-1/4"
Archer
apron Heated BubbleMassage™ air bath with Bask
K-1124-GHLAW
®
®
Required Electrical Service
Two dedicated circuits required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device
(RCD).
120 V, 15 A, 60 HzBlower, Heated
Surface:
120 V, 15 A, 60 HzHeater:

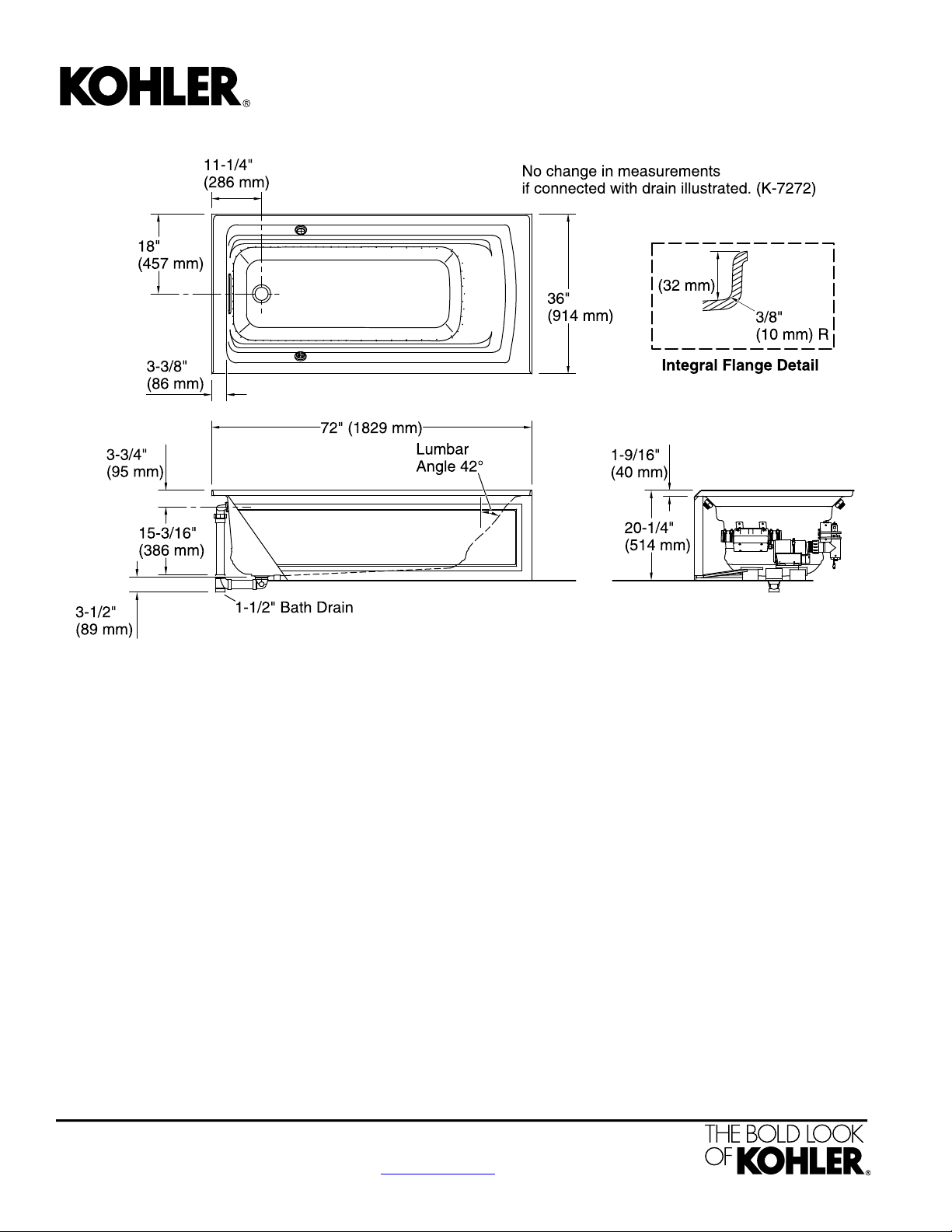

Technical Information
All product dimensions are nominal.
Three-wall alcoveInstallation:
LeftDrain location:
51-3/8" x 21" (1305 mm x 533 mm)Basin area, bottom:
64-1/2" x 30-1/2" (1638 mm x 775 mm)Basin area, top:
121 lbs (54.9 kg)Weight:
42 lbs/ft² (205.1 kg/m²)Minimum floor load:
15" (381 mm)Water depth:
72 gal (272.5 L)Water capacity:
Electrical component
rating:
Blower: 120 V, 10 A, 60 Hz
Heated Surface: 120 V, 0.5 A, 60 Hz
Heater: 120 V, 5 A, 60 Hz
1-9/16" (40 mm)Minimum flat for door:
Notes
Measure your actual product for rough-in details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
Provide one grounded electrical outlet within 24"
(610 mm) of each component.
Remote blower installation kit is available for
relocating the blower. Provide access for servicing
the blower.
Do not relocate or alter the PVC tee or coiled
flexible tubing connected to the blower. Follow
the blower relocation instructions exactly.
