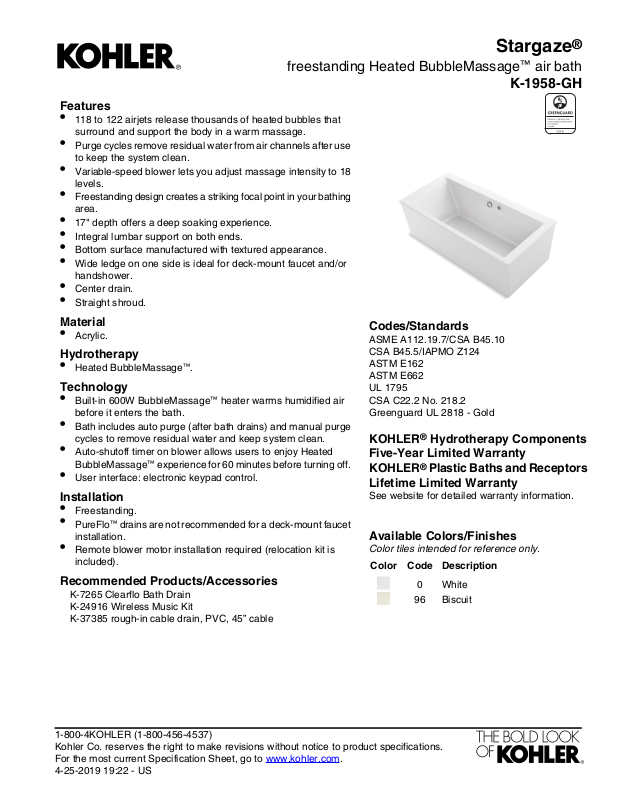

freestanding Heated BubbleMassage™ air bath
Features
•
118 to 122 airjets release thousands of heated bubbles that
surround and support the body in a warm massage.
•
Purge cycles remove residual water from air channels after use
to keep the system clean.
•
Variable-speed blower lets you adjust massage intensity to 18
levels.
•
Freestanding design creates a striking focal point in your bathing
area.
•
17" depth offers a deep soaking experience.
•
Integral lumbar support on both ends.
•
Bottom surface manufactured with textured appearance.
•
Wide ledge on one side is ideal for deck-mount faucet and/or
handshower.
•
Center drain.
•
Straight shroud.
Stargaze
K-1958-GH
®
Material
•
Acrylic.
Hydrotherapy
•
Heated BubbleMassage™.
Technology
•
Built-in 600W BubbleMassage™ heater warms humidified air
before it enters the bath.
•
Bath includes auto purge (after bath drains) and manual purge
cycles to remove residual water and keep system clean.
•
Auto-shutoff timer on blower allows users to enjoy Heated
BubbleMassage™ experience for 60 minutes before turning off.
•
User interface: electronic keypad control.
Installation
•
Freestanding.
•
PureFlo™ drains are not recommended for a deck-mount faucet
installation.
•
Remote blower motor installation required (relocation kit is
included).
Recommended Products/Accessories
K-7265 Clearflo Bath Drain
K-24916 Wireless Music Kit
K-37385 rough-in cable drain, PVC, 45” cable
Codes/Standards
ASME A112.19.7/CSA B45.10
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
UL 1795
CSA C22.2 No. 218.2
Greenguard UL 2818 - Gold
KOHLER® Hydrotherapy Components
Five-Year Limited Warranty
KOHLER® Plastic Baths and Receptors
Lifetime Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-25-2019 19:22 - US
1-1/2" Bath Drain
Stargaze
®
freestanding Heated BubbleMassage™ air bath
K-1958-GH
Required Electrical Service
Two dedicated circuits required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device
(RCD).
120 V, 15 A, 60 HzBlower:
120 V, 15 A, 60 HzHeater:
Technical Information
All product dimensions are nominal.
FreestandingInstallation:
CenterDrain location:
100 lbs (45.4 kg)Weight:
45 lbs/ft² (219.7 kg/m²)Minimum floor load:
17" (432 mm)Water depth:
72 gal (272.5 L)Water capacity:
Footprint, 1245664, not required, includedTemplate:
Electrical component
rating:
Blower: 120 V, 10 A, 60 Hz
Heater: 120 V, 5 A, 60 Hz
Notes
Measure your actual product for rough-in details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
Provide one grounded electrical outlet within 24"
(610 mm) of each component.
This bath is designed for freestanding installation
only.
If installing a rim-mount faucet, make sure there
is no interference above or below the deck before
drilling any holes.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-25-2019 19:22 - US
