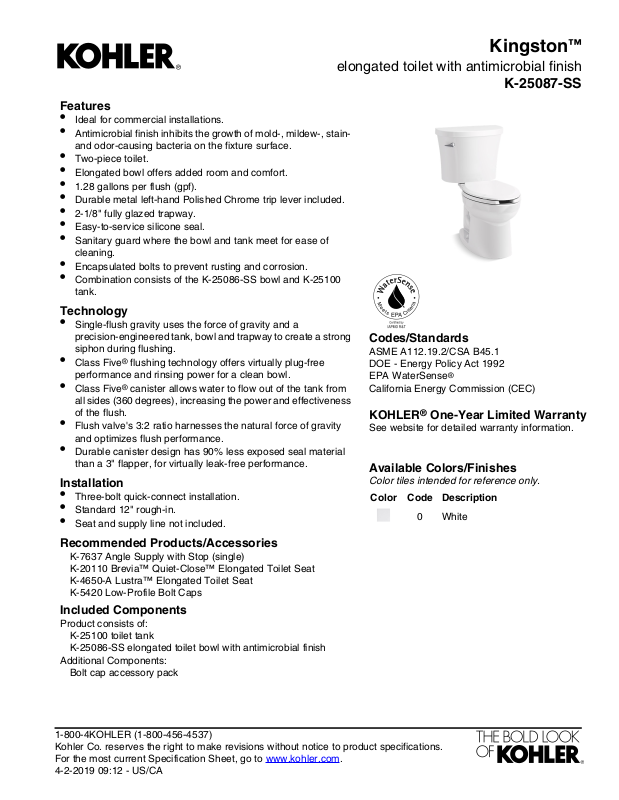

Page 1
Features
•
Ideal for commercial installations.
•
Antimicrobial finish inhibits the growth of mold-, mildew-, stainand odor-causing bacteria on the fixture surface.
•
Two-piece toilet.
•
Elongated bowl offers added room and comfort.
•
1.28 gallons per flush (gpf).
•
Durable metal left-hand Polished Chrome trip lever included.
•
2-1/8" fully glazed trapway.
•
Easy-to-service silicone seal.
•
Sanitary guard where the bowl and tank meet for ease of
cleaning.
•
Encapsulated bolts to prevent rusting and corrosion.
•
Combination consists of the K-25086-SS bowl and K-25100
tank.
Technology
•
Single-flush gravity uses the force of gravity and a
precision-engineered tank, bowl and trapway to create a strong
siphon during flushing.
•
Class Five® flushing technology offers virtually plug-free
performance and rinsing power for a clean bowl.
•
Class Five® canister allows water to flow out of the tank from
all sides (360 degrees), increasing the power and effectiveness
of the flush.
•
Flush valve's 3:2 ratio harnesses the natural force of gravity
and optimizes flush performance.
•
Durable canister design has 90% less exposed seal material
than a 3" flapper, for virtually leak-free performance.
Installation
•
Three-bolt quick-connect installation.
•
Standard 12" rough-in.
•
Seat and supply line not included.
Kingston
™
elongated toilet with antimicrobial finish
K-25087-SS
Codes/Standards
ASME A112.19.2/CSA B45.1
DOE - Energy Policy Act 1992
EPA WaterSense
California Energy Commission (CEC)
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
®
DescriptionCodeColor
White0
Recommended Products/Accessories
K-7637 Angle Supply with Stop (single)
K-20110 Brevia™ Quiet-Close™ Elongated Toilet Seat
K-4650-A Lustra™ Elongated Toilet Seat
K-5420 Low-Profile Bolt Caps
Included Components
Product consists of:
K-25100 toilet tank
K-25086-SS elongated toilet bowl with antimicrobial finish
Additional Components:
Bolt cap accessory pack
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-2-2019 09:12 - US/CA
Page 2
Do not use a
Kingston
™
elongated toilet with antimicrobial finish
K-25087-SS
Technical Information
All product dimensions are nominal.
Two-piece, Floor-mountToilet type:
FloorWaste Outlet:
ElongatedBowl shape:
Gravity siphon jetFlush type:
2-1/8" (54 mm)Trap passageway:
Water Consumption
1.28 gpf (4.8 lpf)Full:
10-13/16" x 7-1/4" (274 mm x 183 mm)Water surface size:
5-5/8" (143 mm)Rim to water surface:
12" (305 mm)Rough-in:
Notes
Install this product according to the installation
instructions.
For back-to-back toilet installations: Use only a
45° double wye fitting.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-2-2019 09:12 - US/CA
