Features
•
Washout urinal.
•
3/4" top spud.
•
1-pint or 0.125 gpf ( 0.47 lpf).
•
Includes inlet and outlet spuds and hangers.
•
Includes anti-backsplash wall.
•
14-3/4" (375 mm) extended rim.
Material
•
Vitreous china.
Water Conservation & Rebates
•
WaterSense® compliant when used with WaterSense
flushometer.
Components
Additional included component/s: 3/4" Inlet Spud, 2" Outlet Spud,
and Hanger (1 required).
Dexter
™
1-Pint Urinal
K-5452-ET
Codes/Standards
ASME A112.19.2/CSA B45.1
DOE - Energy Policy Act 1992
EPA WaterSense
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
®
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
Black Black™7
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
1-31-2019 14:38 - US/CA
2-3/8"
Dexter
™
1-Pint Urinal
K-5452-ET

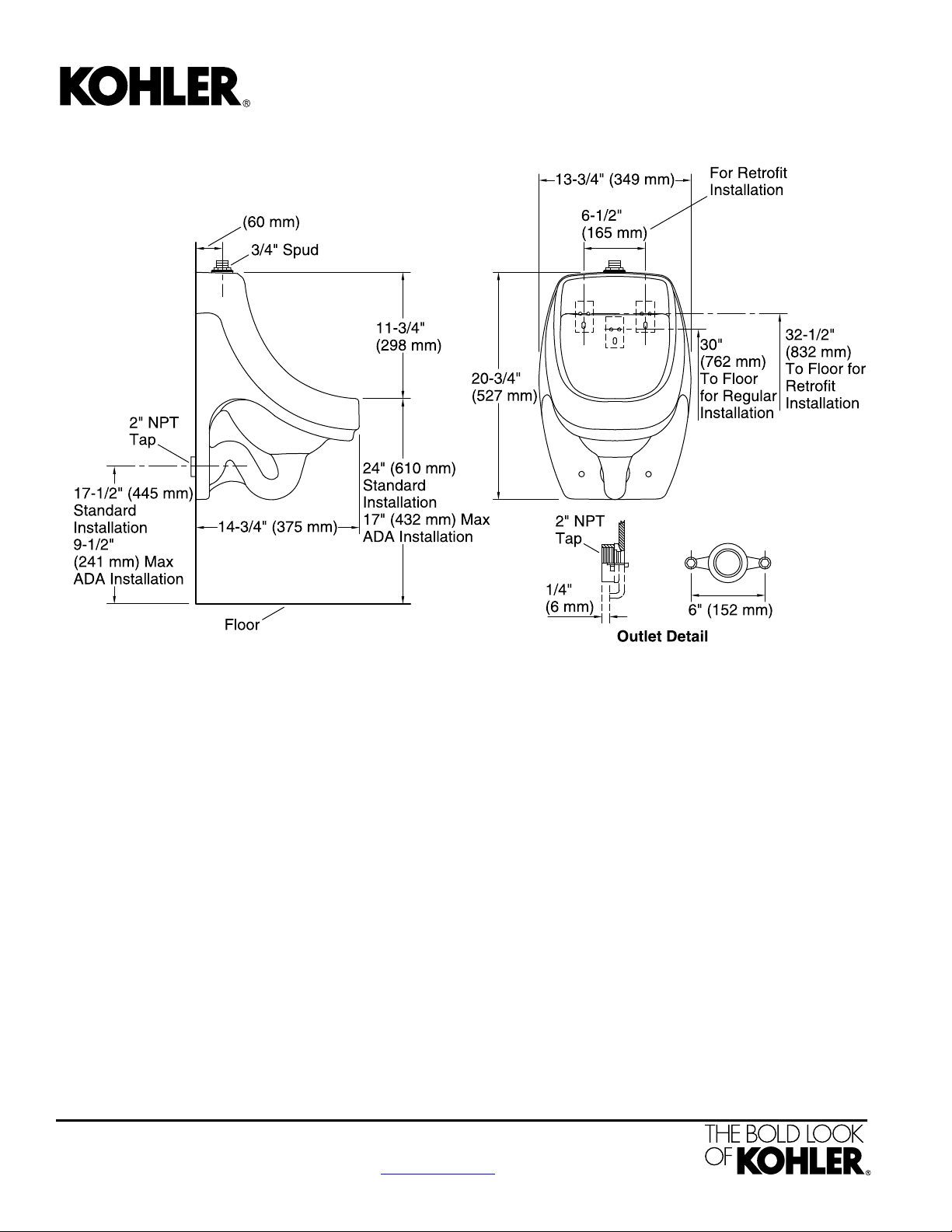

Technical Information
All product dimensions are nominal.
WashoutFlush outlet
technology:
3/4", Inlet, TopSpud size:
0.125 gal (0.5 L)Min. Water per Flush:
0.125 gal (0.5 L)Max. Water per Flush:
Designed for the above water use when installed with a
water-saving flushometer.
Pressure and Supply Requirements
25 psi (172.4 kPa)Fixture pressure min
(static):
80 psi (551.6 kPa)Fixture pressure max
(static):
Notes
Designed only for use with a 0.125 gpf (0.5 lpf)
flushometer.
Install this product according to the installation
instructions.
Recommended ADA outlet spud height will
account for normal product variation.
For ADA compliance, measurement must be 17"
(432 mm) or less from the floor to the top of the
lip.
ADA compliant when installed to the specific
requirements of these regulations.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
1-31-2019 14:38 - US/CA
