Features
CSA B651
OBC
•
Engineered for optimal performance with KOHLER toilets.
•
Fixture-mount design.
Material
•
Durable brass construction.
•
Chloramine resistance on all rubber components exposed to
waterway.
Technology
•
Non-hold open piston technology for accurate activation.
Installation
•
Intended for toilet installations with 1-1/2" top spud coupling
connection.
•
Includes vacuum breaker and control stop.
•
Self-cleaning brass piston prevents clogging and reduces
maintenance.
Manual 1.6 GPF WC Flushometer
K-76322
Codes/Standards
ASSE 1037/ASME A112.1037/CSA B125.37
ADA
ICC/ANSI A117.1
CSA B651
OBC
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
1-31-2019 17:01 - US/CA
6"
Manual 1.6 GPF WC Flushometer
K-76322

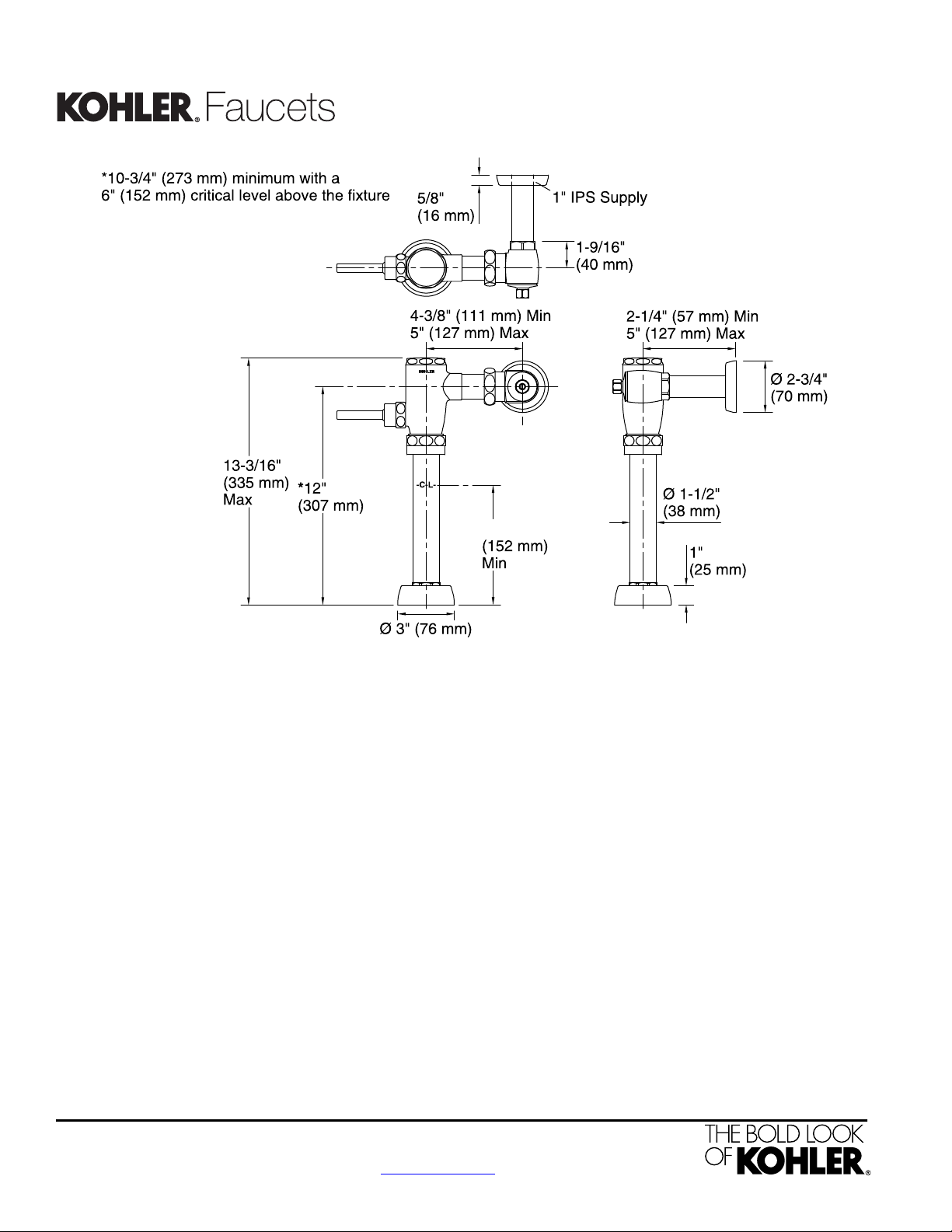

Technical Information
All product dimensions are nominal.
80 psi (551.6 kPa)Fixture pressure max
(static):
Notes
Install this product according to the installation
guide.
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
Pressure and Supply Requirements
35 psi (241.3 kPa)Fixture pressure min
(static):
Fixture Supply Requirements
35 psi (241.3 kPa)Min static pressure:
80 psi (551.6 kPa)Max static pressure:
25 psi (172.4 kPa)Min flowing pressure:
25 gpm (94.6 lpm)Min flow rate:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
1-31-2019 17:01 - US/CA
