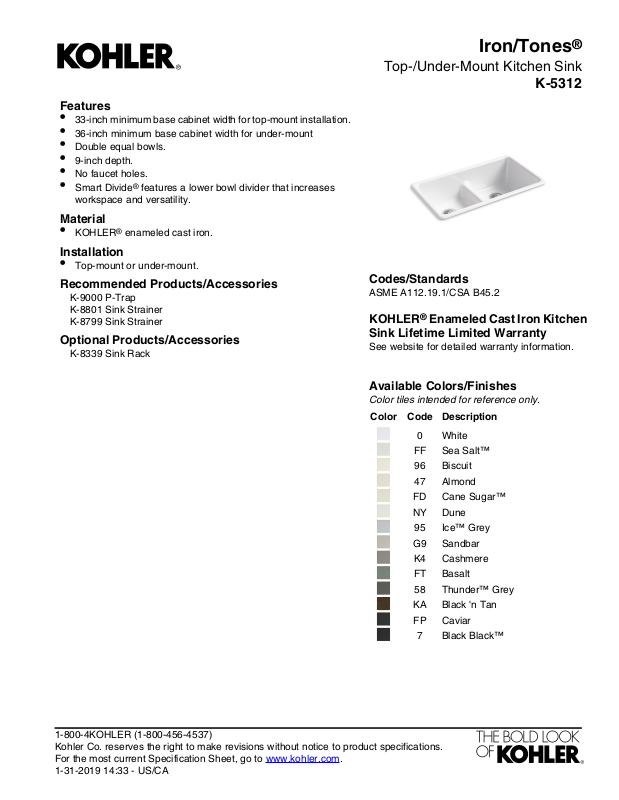

Features
•
33-inch minimum base cabinet width for top-mount installation.
•
36-inch minimum base cabinet width for under-mount
•
Double equal bowls.
•
9-inch depth.
•
No faucet holes.
•
Smart Divide® features a lower bowl divider that increases
workspace and versatility.
Material
•
KOHLER® enameled cast iron.
Installation
•
Top-mount or under-mount.
Recommended Products/Accessories
K-9000 P-Trap
K-8801 Sink Strainer
K-8799 Sink Strainer
Optional Products/Accessories
K-8339 Sink Rack
Iron/Tones
®
Top-/Under-Mount Kitchen Sink
K-5312
Codes/Standards
ASME A112.19.1/CSA B45.2
KOHLER® Enameled Cast Iron Kitchen
Sink Lifetime Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Sea Salt™FF
Biscuit96
Almond47
Cane Sugar™FD
DuneNY
Ice™ Grey95
SandbarG9
CashmereK4
BasaltFT
Thunder™ Grey58
Black 'n TanKA
CaviarFP
Black Black™7
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
1-31-2019 14:33 - US/CA
15-13/16 (402 mm)
Iron/Tones
®
Top-/Under-Mount Kitchen Sink
K-5312
Technical Information
All product dimensions are nominal.
Under-mount, Top-mountInstallation:
36" (914 mm)Min. base cabinet
width:
Bowl area:
Length: 30-5/16" (770 mm)
Width: 16-1/16" (408 mm)
Bowl depth: 9" (229 mm)
Water depth: 9" (229 mm)
3-7/8" (98 mm)Drain hole:
1043168-7, required, includedTemplate:
Notes
Install this product according to the installation
instructions.
Countertop manufacturer or cutter must use the
cut-out template provided with the product, or a
current one provided by Kohler Co. (call
1-800-43-FOCUS). Kohler Co. is not responsible
for cut-out errors when the incorrect cut-out
template is used.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
1-31-2019 14:33 - US/CA
