Features
•
30-inch minimum base cabinet width for top-mount installation.
•
33-inch minimum base cabinet width for under-mount
•
Single bowl.
•
9-inch depth.
•
No faucet holes.
Material
•
KOHLER® enameled cast iron.
Installation
•
Top-mount or under-mount.
Recommended Products/Accessories
K-9000 P-Trap
K-8801 Sink Strainer
K-8799 Sink Strainer
Iron/Tones
Top-/Under-Mount Kitchen Sink
K-5708
Codes/Standards
ASME A112.19.1/CSA B45.2
®
Optional Products/Accessories
K-8343 Sink Rack
KOHLER® Enameled Cast Iron Kitchen
Sink Lifetime Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Sea Salt™FF
Biscuit96
Almond47
Cane Sugar™FD
DuneNY
Ice™ Grey95
SandbarG9
Mexican Sand™33
CashmereK4
BasaltFT
Thunder™ Grey58
Suede20
Black 'n TanKA
CaviarFP
Black Black™7
Grey LavenderGRL
Indigo BlueDGB
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-12-2019 05:28 - US/CA
18-3/4"
Iron/Tones
®
Top-/Under-Mount Kitchen Sink
K-5708

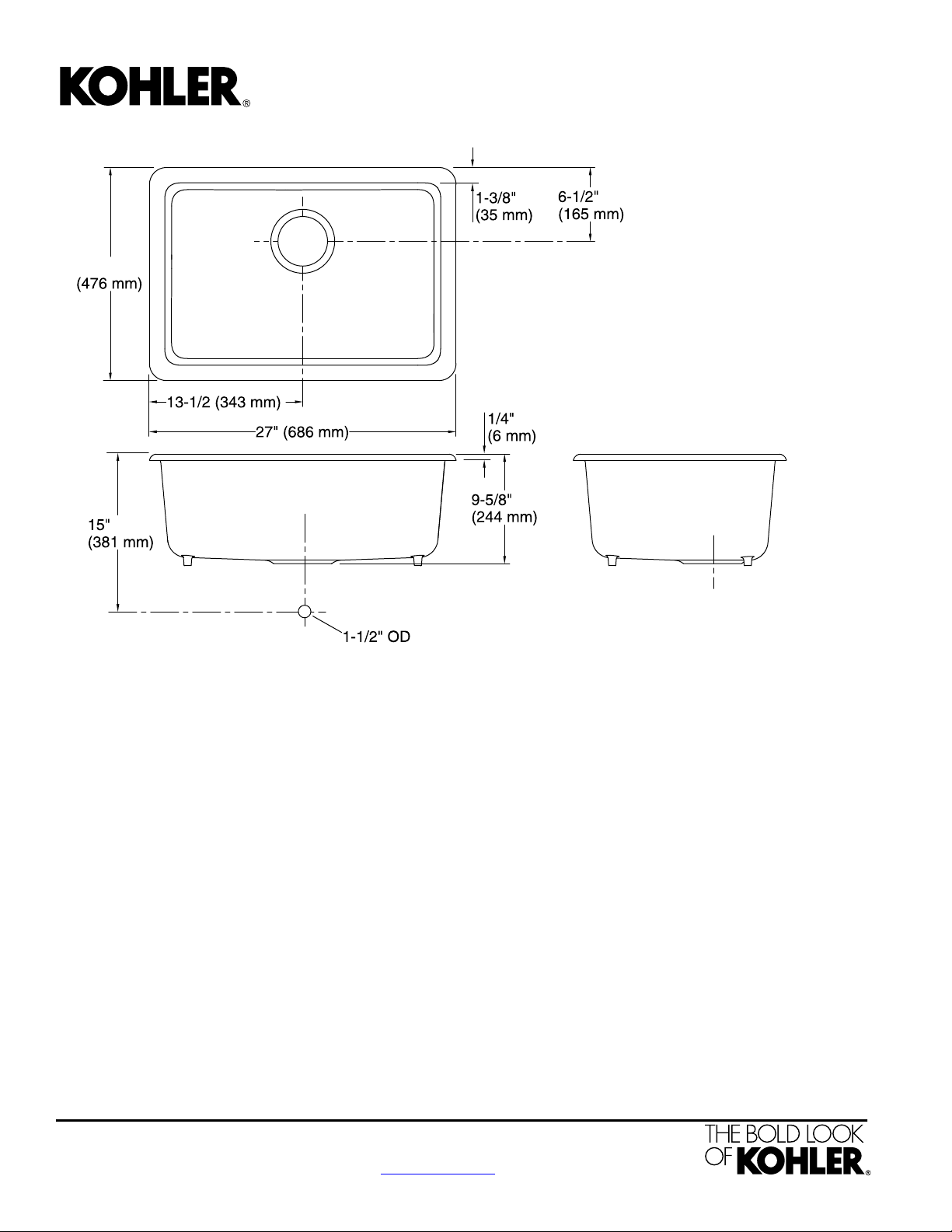

Technical Information
All product dimensions are nominal.
width:
Bowl area (Only):
Under-mount, Top-mountInstallation:
33" (838 mm)Min. base cabinet
Length: 24-5/16" (617 mm)
Width: 16-1/16" (408 mm)
Bowl depth: 9" (229 mm)
Water depth: 9" (229 mm)
3-7/8" (98 mm)Drain hole:
1281370-7, required, includedTemplate:
Notes
Install this product according to the installation
instructions.
Countertop manufacturer or cutter must use the
cut-out template provided with the product, or a
current one provided by Kohler Co. (call
1-800-43-FOCUS). Kohler Co. is not responsible
for cut-out errors when the incorrect cut-out
template is used.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-12-2019 05:28 - US/CA
