Features
•
Low-threshold design for easy entry and exit.
•
Molded-in textured floor.
•
Water containment bead incorporated into the threshold design
provides an optimum barrier, preventing water from escaping
from the shower space.
•
Single threshold for alcove installation.
•
Durable acrylic construction.
•
Center drain.
•
Coordinates with Choreograph® shower walls and other
KOHLER® collections.
Recommended Products/Accessories
K-9132 Shower Drain
36"x34" Shower Base
Codes/Standards
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
Greenguard UL 2818 - Gold
Rely
K-8644
®
KOHLER® Plastic Baths and Receptors
Lifetime Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
Ice™ Grey95
SandbarG9
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
1-31-2019 17:30 - US/CA
4-3/16"
Rely
®
36"x34" Shower Base
K-8644

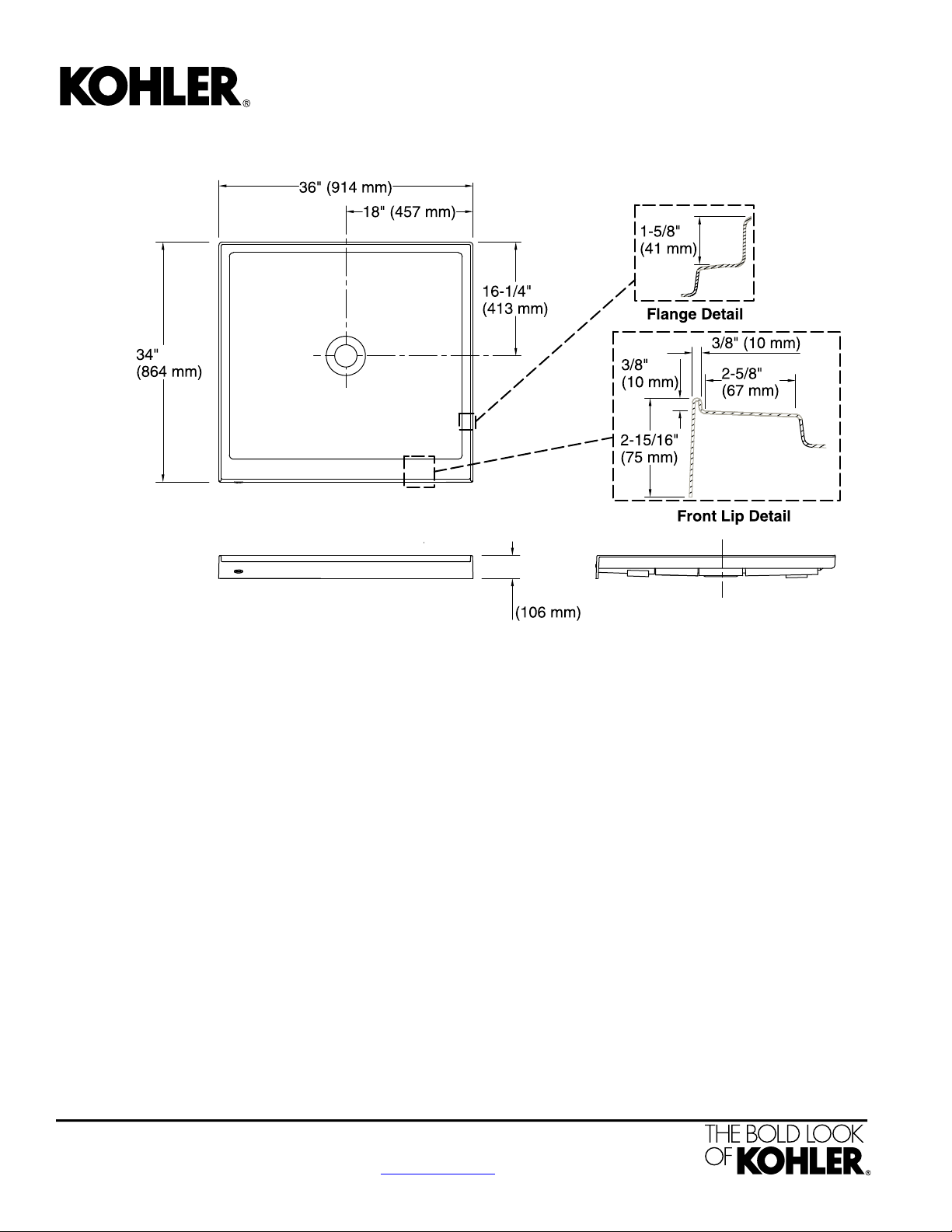

Technical Information
All product dimensions are nominal.
Three-wall alcoveInstallation:
CenterDrain location:
34 lbs (15.4 kg)Weight:
Notes
Measure your actual product for rough-in details.
Install this product according to the installation
instructions.
Subfloor must be within 1/2" (13 mm) of level.
This receptor has a front lip. This should be taken
into account when installing a shower door.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
1-31-2019 17:30 - US/CA
