Features
•
Ideal for commercial installations.
•
2-1/8" fully glazed trapway.
•
Combines with a K-25100, K-25100-RA, K-25100-T or
K-25100-TR tank to create a complete K-25097, K-25097-RA,
K-25097-T or K-25097-TR Kingston™ two-piece toilet.
Installation
•
Three-bolt quick-connect installation.
•
Standard 12" rough-in.
•
Seat not included.
Components
Additional included component/s: Hardware accessory pack.
Kingston
™
round-front toilet bowl
K-25096
Codes/Standards
ASME A112.19.2/CSA B45.1
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
11-29-2018 10:11 - US

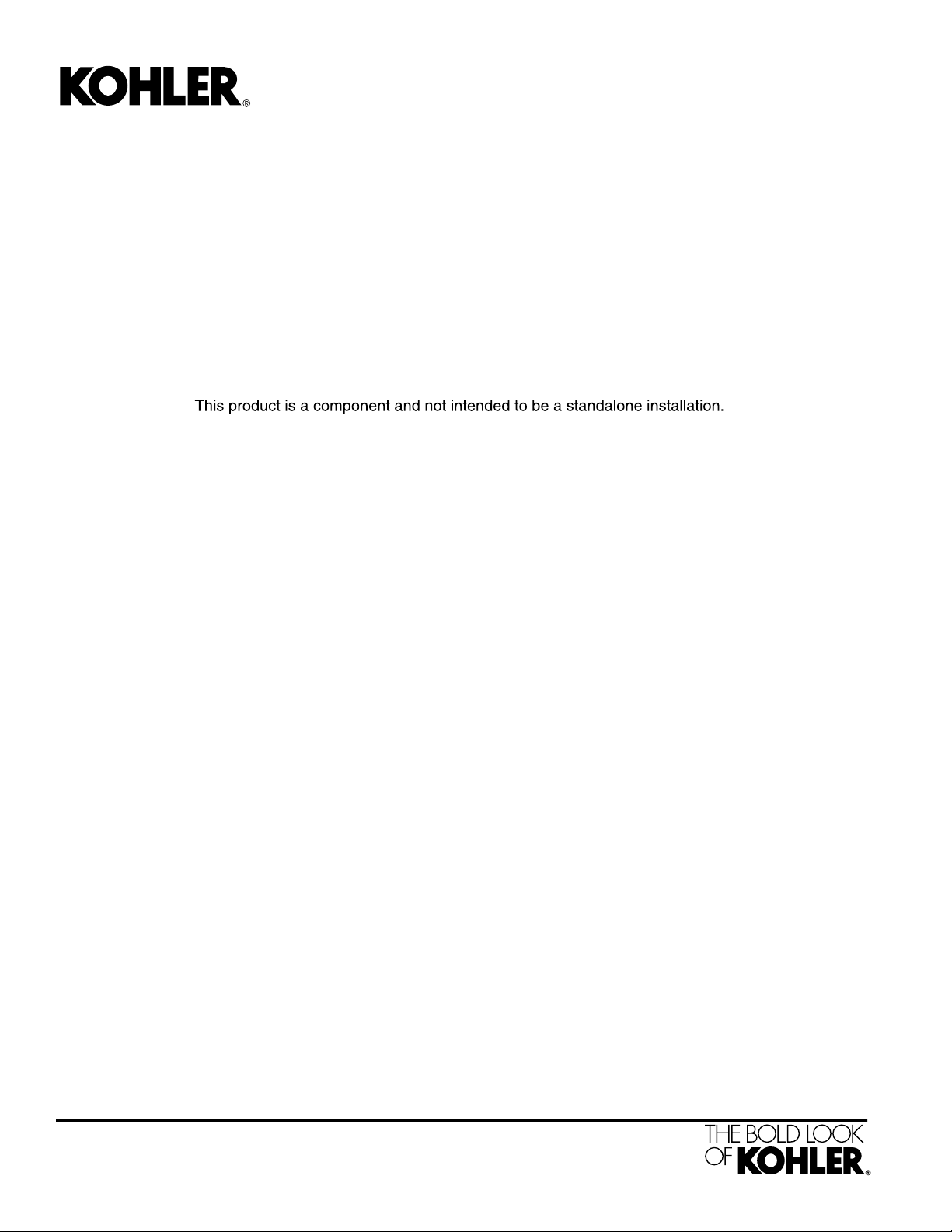

No image available.
Kingston
™
round-front toilet bowl
K-25096
Technical Information
All product dimensions are nominal.
Two-piece, Floor-mountToilet type:
FloorWaste Outlet:
Round-frontBowl shape:
Gravity siphon jetFlush type:
2-1/8" (54 mm)Trap passageway:
Water Consumption
1.28 gpf (4.8 lpf)Full:
10-3/8" x 7-1/16" (264 mm x 179 mm)Water surface size:
5-5/8" (143 mm)Rim to water surface:
12Rough-in:
Notes
Install this product according to the installation
instructions.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
11-29-2018 10:11 - US
