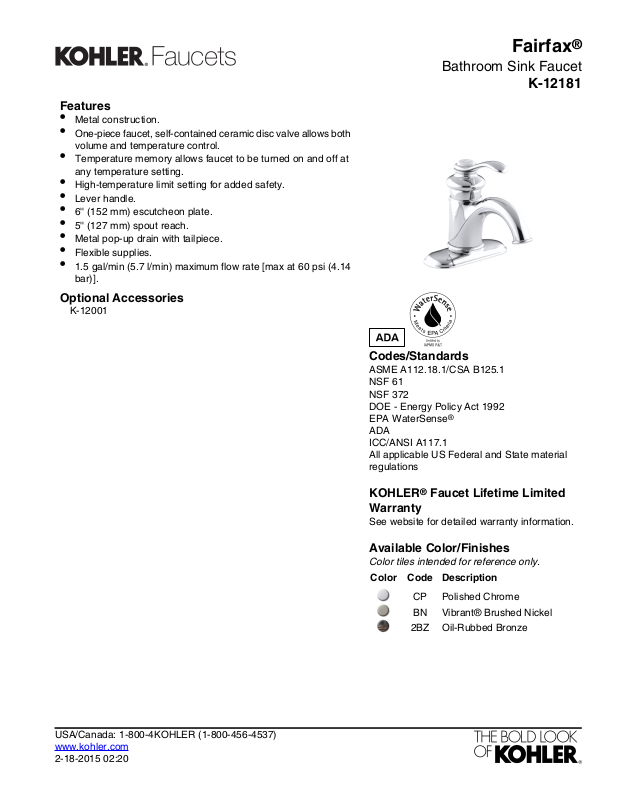

Page 1
Features
•
Metal construction.
•
One-piece faucet, self-contained ceramic disc valve allows both
volume and temperature control.
•
Temperature memory allows faucet to be turned on and off at
any temperature setting.
•
High-temperature limit setting for added safety.
•
Lever handle.
•
6'' (152 mm) escutcheon plate.
•
5'' (127 mm) spout reach.
•
Metal pop-up drain with tailpiece.
•
Flexible supplies.
•
1.5 gal/min (5.7 l/min) maximum flow rate [max at 60 psi (4.14
bar)].
Optional Accessories
K-12001
Fairfax
®
Bathroom Sink Faucet
K-12181
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF 61
NSF 372
DOE - Energy Policy Act 1992
EPA WaterSense
ADA
ICC/ANSI A117.1
All applicable US Federal and State material
regulations
®
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Brushed NickelBN
Oil-Rubbed Bronze2BZ
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 02:20
Page 2
1-3/4" (44 mm) Max
Fairfax
®
Bathroom Sink Faucet
K-12181

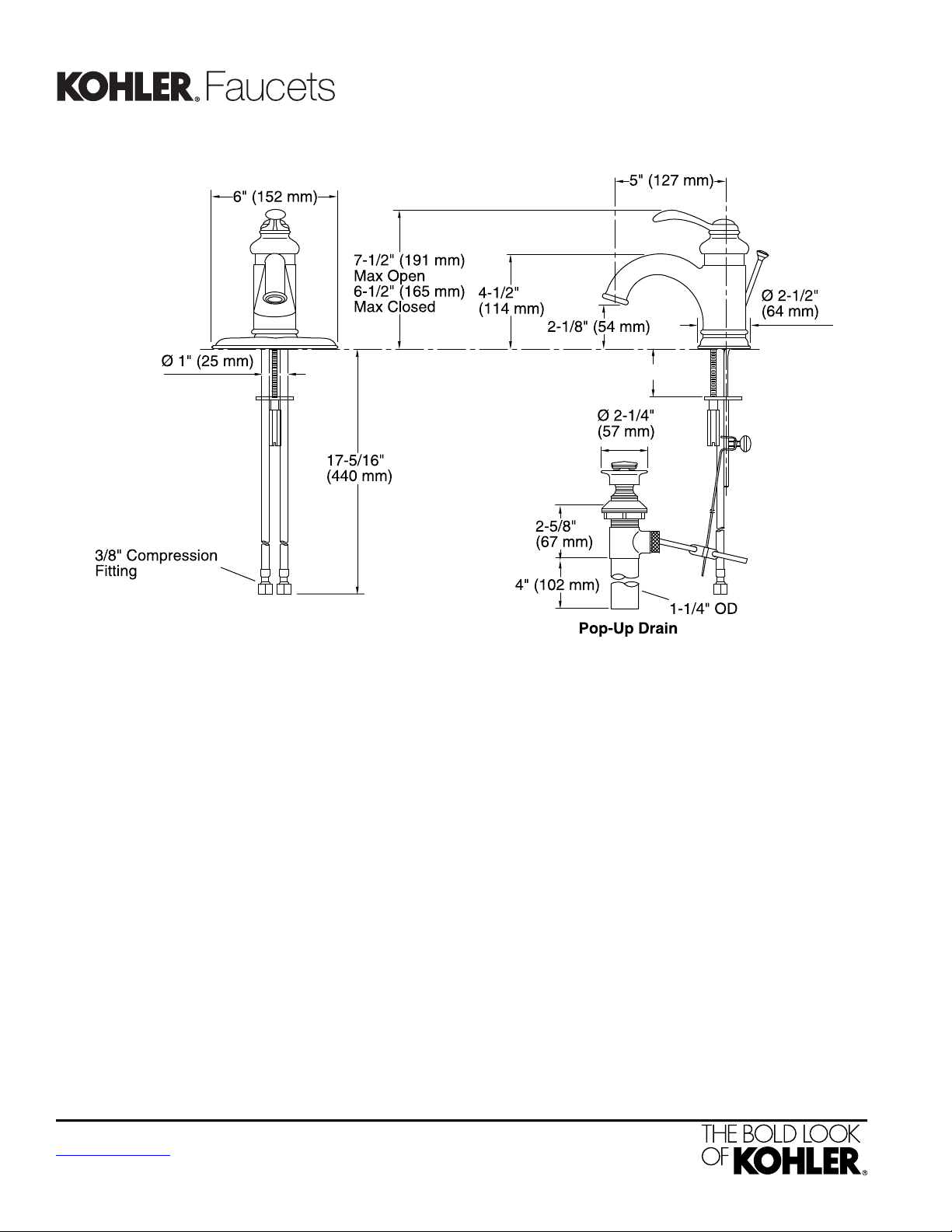

Technical Information
All product dimensions are nominal.
5" (127 mm)Spout reach:
YESDrain included:
YESDrain tailpiece
included:
Faucet:
1.5 gal/min (5.7 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
Notes
Install this product according to the installation
guide.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 02:20
