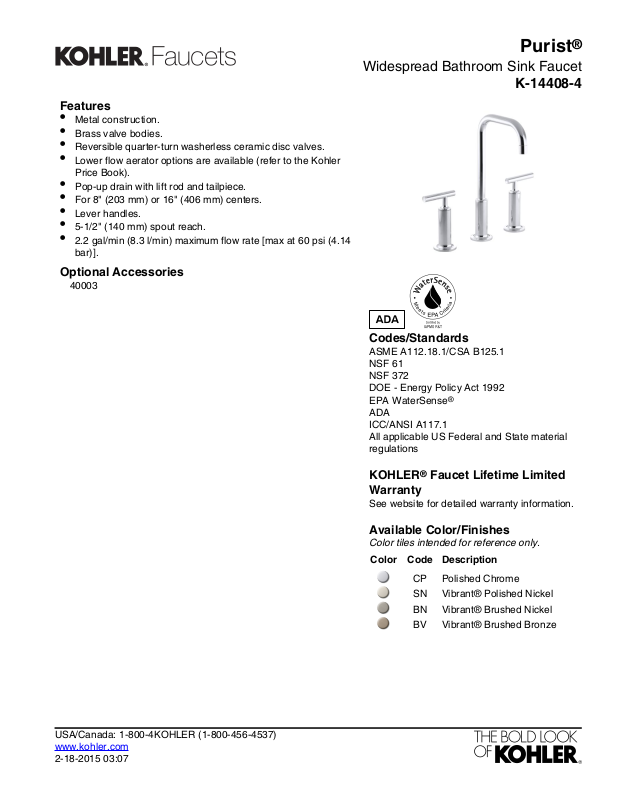

Page 1
Features
•
Metal construction.
•
Brass valve bodies.
•
Reversible quarter-turn washerless ceramic disc valves.
•
Lower flow aerator options are available (refer to the Kohler
Price Book).
•
Pop-up drain with lift rod and tailpiece.
•
For 8" (203 mm) or 16" (406 mm) centers.
•
Lever handles.
•
5-1/2" (140 mm) spout reach.
•
2.2 gal/min (8.3 l/min) maximum flow rate [max at 60 psi (4.14
bar)].
Optional Accessories
40003
Purist
®
Widespread Bathroom Sink Faucet
K-14408-4
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF 61
NSF 372
DOE - Energy Policy Act 1992
EPA WaterSense
ADA
ICC/ANSI A117.1
All applicable US Federal and State material
regulations
®
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Polished NickelSN
Vibrant® Brushed NickelBN
Vibrant® Brushed BronzeBV
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 03:07
Page 2
Ø 2"
Purist
®
Widespread Bathroom Sink Faucet
K-14408-4

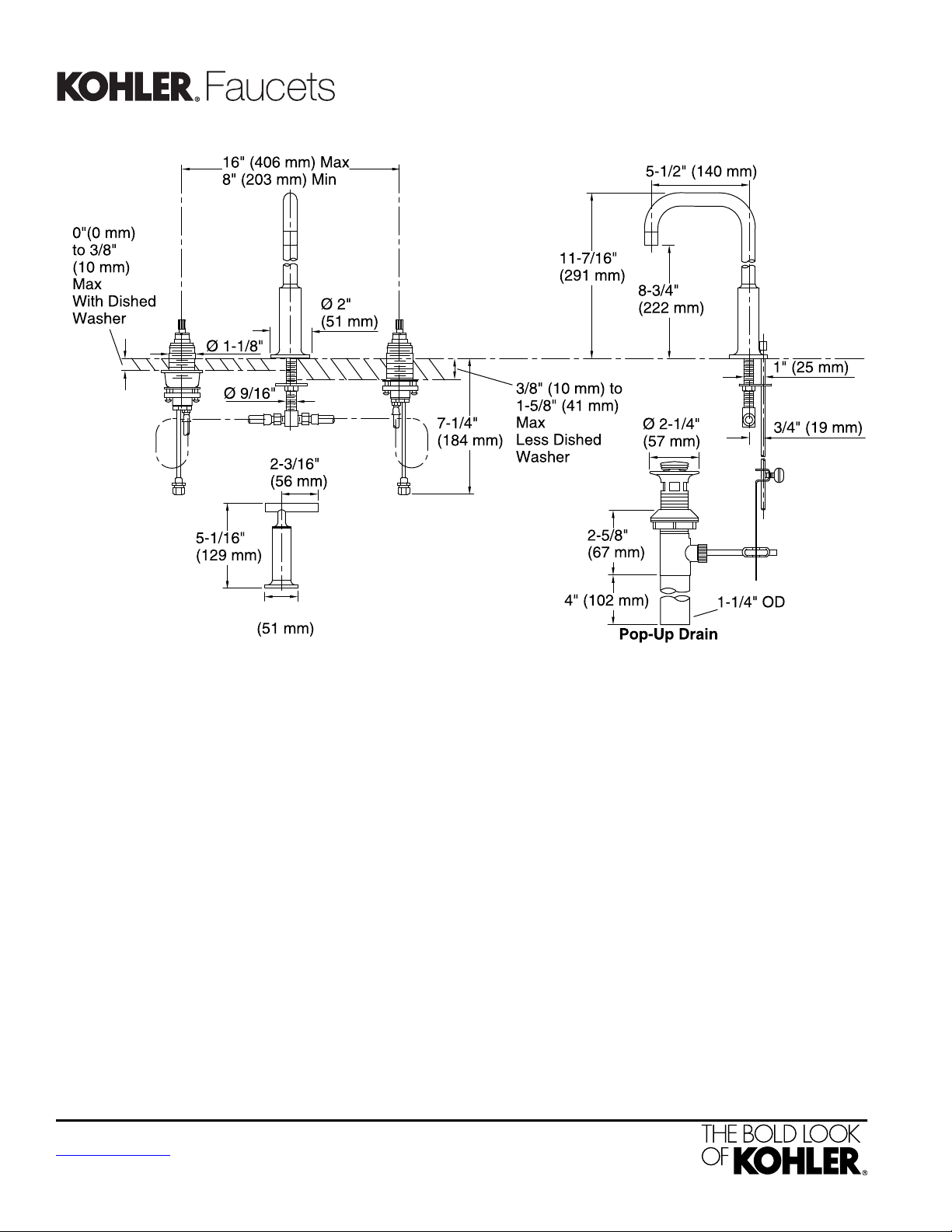

Technical Information
All product dimensions are nominal.
5-1/2" (140 mm)Spout reach:
YESDrain included:
YESDrain tailpiece
included:
Faucet:
2.2 gal/min (8.3 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
Notes
Install this product according to the installation
guide.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 03:07
