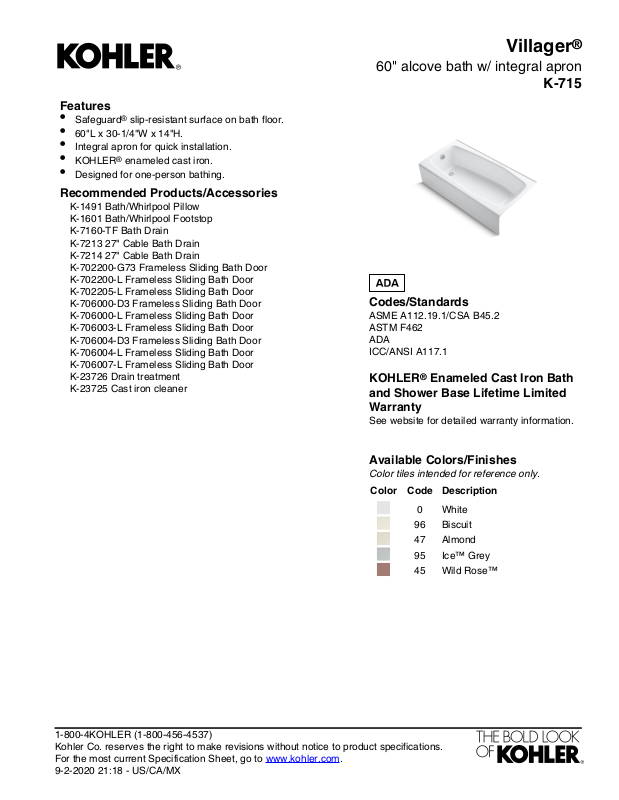

Page 1
Features
•
Safeguard® slip-resistant surface on bath floor.
•
60"L x 30-1/4"W x 14"H.
•
Integral apron for quick installation.
•
KOHLER® enameled cast iron.
•
Designed for one-person bathing.
Recommended Products/Accessories
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/Whirlpool Footstop
K-7160-TF Bath Drain
K-7213 27" Cable Bath Drain
K-7214 27" Cable Bath Drain
K-702200-G73 Frameless Sliding Bath Door
K-702200-L Frameless Sliding Bath Door
K-702205-L Frameless Sliding Bath Door
K-706000-D3 Frameless Sliding Bath Door
K-706000-L Frameless Sliding Bath Door
K-706003-L Frameless Sliding Bath Door
K-706004-D3 Frameless Sliding Bath Door
K-706004-L Frameless Sliding Bath Door
K-706007-L Frameless Sliding Bath Door
K-23726 Drain treatment
K-23725 Cast iron cleaner
Villager
60" alcove bath w/ integral apron
K-715
Codes/Standards
ASME A112.19.1/CSA B45.2
ASTM F462
ADA
ICC/ANSI A117.1
KOHLER® Enameled Cast Iron Bath
and Shower Base Lifetime Limited
Warranty
See website for detailed warranty information.
®
Available Colors/Finishes
Color tiles intended for reference only.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-2-2020 21:18 - US/CA/MX
DescriptionCodeColor
White0
Biscuit96
Almond47
Ice™ Grey95
Wild Rose™45
Page 2

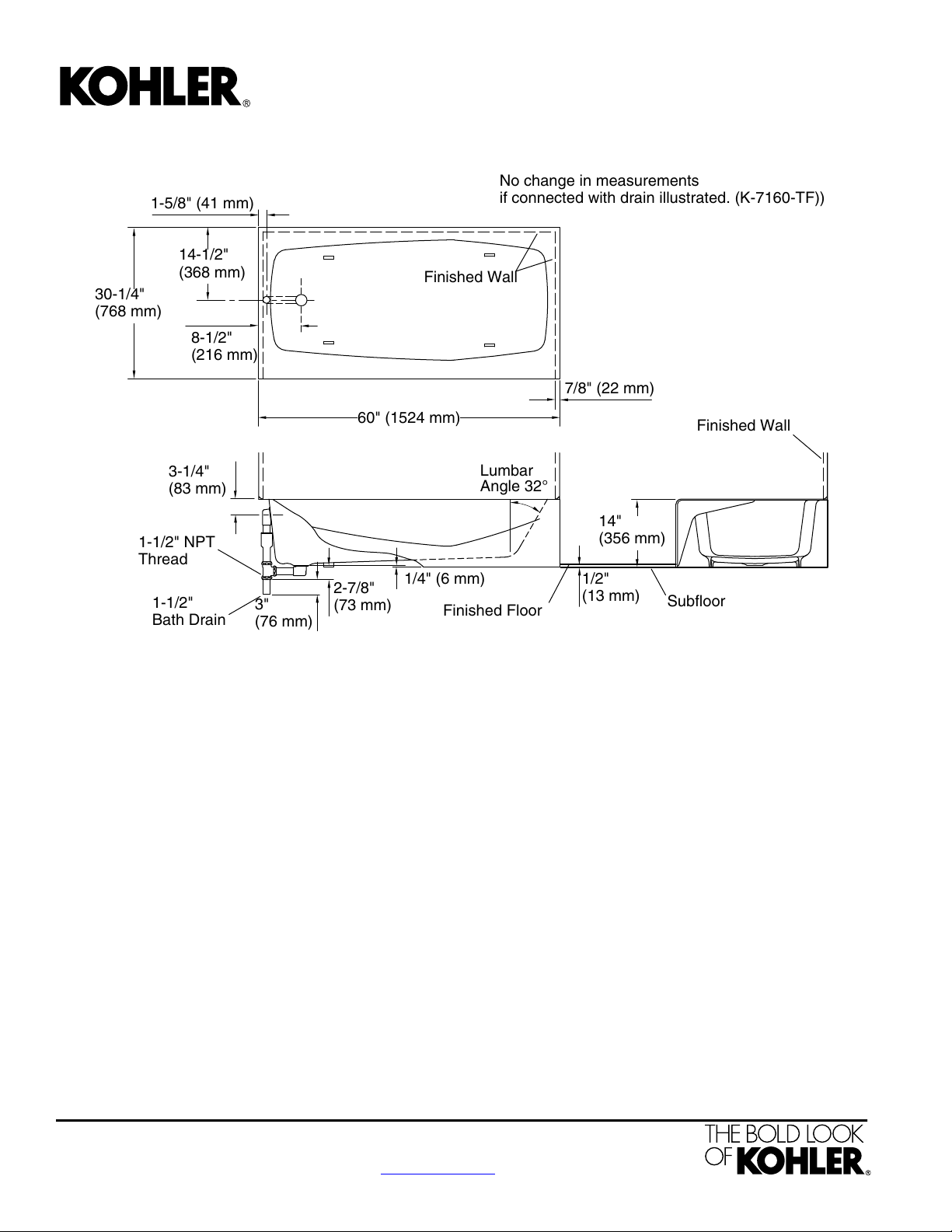

60" (1524 mm)
No change in measurements
if connected with drain illustrated. (K-7160-TF))
Finished Wall
Finished Wall
7/8" (22 mm)
14"
(356 mm)
Subfloor
1/2"
(13 mm)
Finished Floor
1/4" (6 mm)
2-7/8"
(73 mm)
3"
(76 mm)
1-1/2"
Bath Drain
1-1/2" NPT
Thread
3-1/4"
(83 mm)
8-1/2"
(216 mm)
30-1/4"
(768 mm)
14-1/2"
(368 mm)
1-5/8" (41 mm)
Lumbar
Angle 32°
Villager
®
60" alcove bath w/ integral apron
K-715
Technical Information
All product dimensions are nominal.
Three-wall alcoveInstallation:
LeftDrain location:
45" x 22" (1143 mm x 559 mm)Basin area, bottom:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-2-2020 21:18 - US/CA/MX
55" x 24" (1397 mm x 610 mm)Basin area, top:
316 lbs (143.3 kg)Weight:
49 lbs/ft² (239.2 kg/m²)Minimum floor load:
8-5/8" (219 mm)Water depth:
33 gal (124.9 L)Water capacity:
2-1/2" (64 mm)Minimum flat for door:
Notes
Measure your actual product for rough-in details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
ADA compliant when installed to the specific
requirements of these regulations.
