Portrait

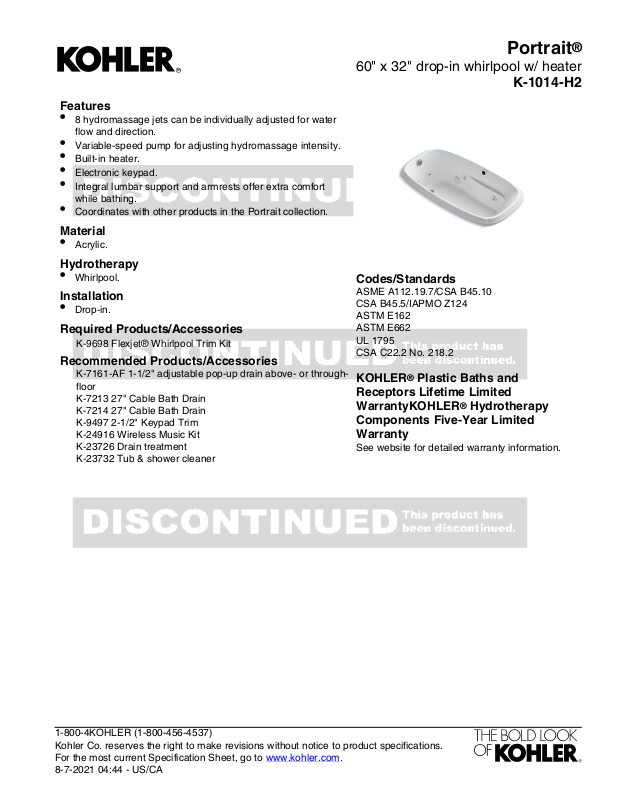

Features
•
8 hydromassage jets can be individually adjusted for water
flow and direction.
•
Variable-speed pump for adjusting hydromassage intensity.
•
Built-in heater.
•
Electronic keypad.
•
Integral lumbar support and armrests offer extra comfort
while bathing.
•
Coordinates with other products in the Portrait collection.
Material
•
Acrylic.
Hydrotherapy
•
Whirlpool.
Installation
•
Drop-in.
Required Products/Accessories
K-9698 Flexjet® Whirlpool Trim Kit
Recommended Products/Accessories
K-7161-AF 1-1/2" adjustable pop-up drain above- or throughfloor
K-7213 27" Cable Bath Drain
K-7214 27" Cable Bath Drain
K-9497 2-1/2" Keypad Trim
K-24916 Wireless Music Kit
K-23726 Drain treatment
K-23732 Tub & shower cleaner
Codes/Standards
ASME A112.19.7/CSA B45.10
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
UL 1795
CSA C22.2 No. 218.2
KOHLER® Plastic Baths and
Receptors Lifetime Limited
WarrantyKOHLER® Hydrotherapy
Components Five-Year Limited
Warranty
See website for detailed warranty information.
®
60" x 32" drop-in whirlpool w/ heater
K-1014-H2
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-7-2021 04:44 - US/CA
Page 2
Portrait

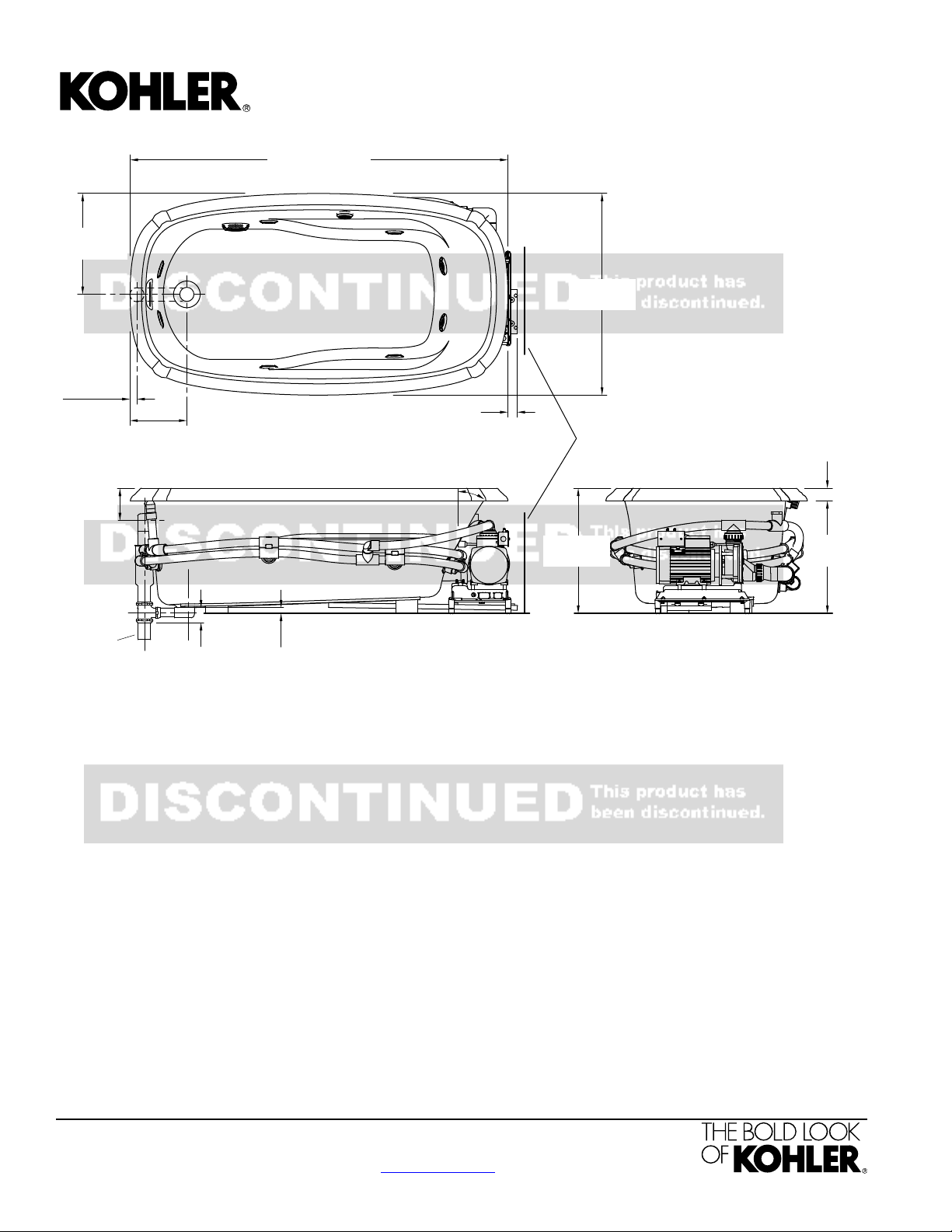

No change in measurements if connected
with drain illustrated. (K-7161-AF)
2" (51 mm)
20"
(508 mm)
Pump Protrudes
1-1/2" (38 mm)
Pump/Control Access
24" (610 mm) W x
15" (381 mm) H Min
2-1/2"
(64 mm)
2-3/4"
(70 mm)
2-1/4"
(57 mm)
16"
(406 mm)
32"
(813 mm)
1-1/2"
Bath
Drain
60" (1524 mm)
9"
(229 mm)
1"
(25 mm)
Lumbar
Angle 31°
18"
(457 mm)
Required Electrical Service
One dedicated circuit required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this
device may be known as a Residual Current Device (RCD).
Pump, Heater: 220-240 V, 20 A, 50/60 Hz
Technical Information
All product dimensions are nominal.
Installation: Drop-in
Drain location: End
Basin area, bottom: 42" x 20" (1067 mm x 508 mm)
Basin area, top: 51" x 24" (1295 mm x 610 mm)
Weight: 110 lbs (49.9 kg)
Minimum floor load: 48 lbs/ft² (234.4 kg/m²)
Water depth: 14" (356 mm)
Water capacity: 60 gal (227.1 L)
Template: Drop-in, 1022451-7, required, included
Electrical component
rating:
Pump: 240 V, 11 A
Heater: 220-240 V, 6.25 A, 50/60 Hz
Pump speed: Variable
Notes
Measure your actual product for rough-in
details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
®
60" x 32" drop-in whirlpool w/ heater
K-1014-H2
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-7-2021 04:44 - US/CA
