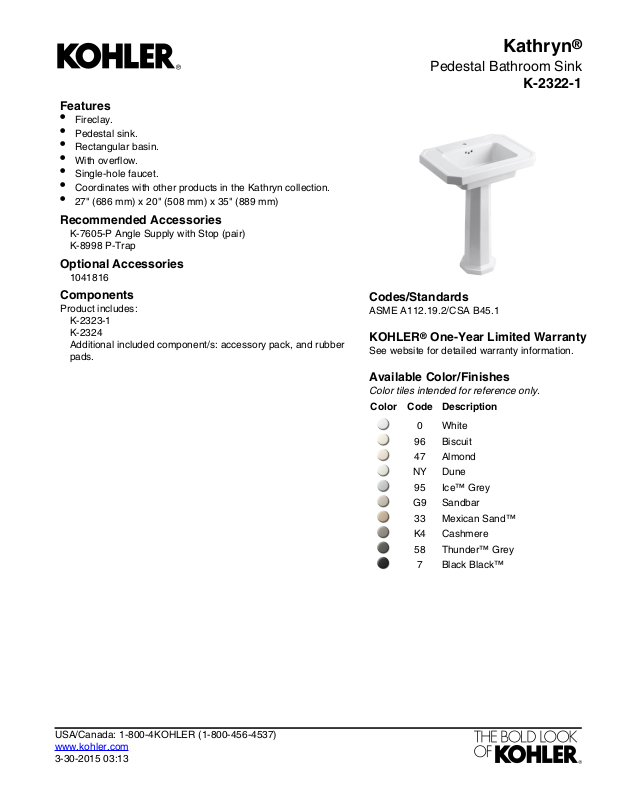

Page 1
Features
•
Fireclay.
•
Pedestal sink.
•
Rectangular basin.
•
With overflow.
•
Single-hole faucet.
•
Coordinates with other products in the Kathryn collection.
•
27" (686 mm) x 20" (508 mm) x 35" (889 mm)
Recommended Accessories
K-7605-P Angle Supply with Stop (pair)
K-8998 P-Trap
Optional Accessories
1041816
Kathryn
®
Pedestal Bathroom Sink
K-2322-1
Components
Product includes:
K-2323-1
K-2324
Additional included component/s: accessory pack, and rubber
pads.
Codes/Standards
ASME A112.19.2/CSA B45.1
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
Ice™ Grey95
SandbarG9
Mexican Sand™33
CashmereK4
Thunder™ Grey58
Black Black™7
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
3-30-2015 03:13
Page 2
Kathryn
®
Pedestal Bathroom Sink
K-2322-1
Technical Information
All product dimensions are nominal.
SingleBowl configuration:
PedestalInstallation:
Bowl area (Only)
Length: 17" (432 mm)
Width: 11-1/2" (292 mm)
Water depth: 4-1/8" (105 mm)
1Number of deck holes:
1-3/8" (35 mm)Faucet hole(s):
1-3/4" (44 mm)Drain hole:
Notes
Install this product according to the installation
guide.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
3-30-2015 03:13
