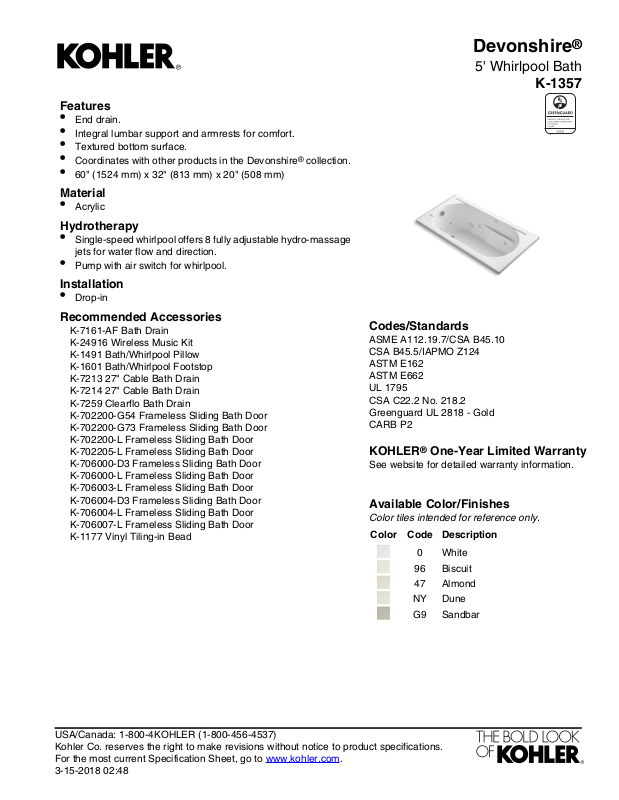

Page 1
Features
•
End drain.
•
Integral lumbar support and armrests for comfort.
•
Textured bottom surface.
•
Coordinates with other products in the Devonshire® collection.
•
60" (1524 mm) x 32" (813 mm) x 20" (508 mm)
Material
•
Acrylic
Hydrotherapy
•
Single-speed whirlpool offers 8 fully adjustable hydro-massage
jets for water flow and direction.
•
Pump with air switch for whirlpool.
Installation
•
Drop-in
Devonshire
5' Whirlpool Bath
K-1357
®
Recommended Accessories
K-7161-AF Bath Drain
K-24916 Wireless Music Kit
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/Whirlpool Footstop
K-7213 27" Cable Bath Drain
K-7214 27" Cable Bath Drain
K-7259 Clearflo Bath Drain
K-702200-G54 Frameless Sliding Bath Door
K-702200-G73 Frameless Sliding Bath Door
K-702200-L Frameless Sliding Bath Door
K-702205-L Frameless Sliding Bath Door
K-706000-D3 Frameless Sliding Bath Door
K-706000-L Frameless Sliding Bath Door
K-706003-L Frameless Sliding Bath Door
K-706004-D3 Frameless Sliding Bath Door
K-706004-L Frameless Sliding Bath Door
K-706007-L Frameless Sliding Bath Door
K-1177 Vinyl Tiling-in Bead
Codes/Standards
ASME A112.19.7/CSA B45.10
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
UL 1795
CSA C22.2 No. 218.2
Greenguard UL 2818 - Gold
CARB P2
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
SandbarG9
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-15-2018 02:48

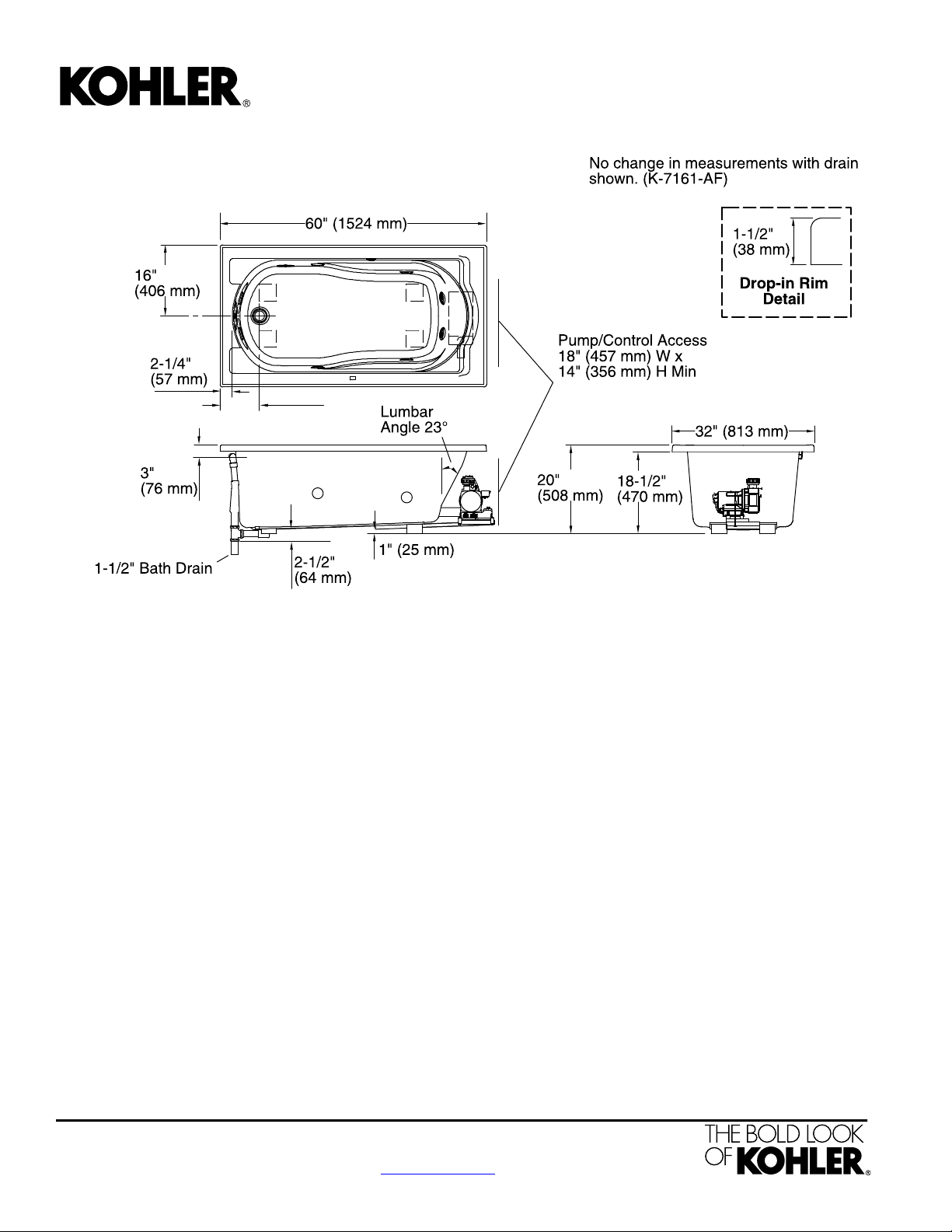

Page 2
9" (229 mm)
Devonshire
5' Whirlpool Bath
K-1357
®
Required Electrical Service
One dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device
(RCD).
120 V, 15 A, 60 HzPump:
Technical Information
All product dimensions are nominal.
Drop-inInstallation:
EndDrain location:
42" x 20" (1067 mm x 508 mm)Basin area, bottom:
51" x 24" (1295 mm x 610 mm)Basin area, top:
100 lbs (45.4 kg)Weight:
47 lbs/ft² (229.5 kg/m²)Minimum floor load:
14" (356 mm)Water depth:
60 gal (227.1 L)Water capacity:
Drop-in, 58" x 30" (1473 mm x 762 mm)Cutout:
Pump: 120 V, 7 A, 60 HzElectrical component
rating:
SinglePump speed:
2-1/2" (64 mm)Minimum flat for door:
Notes
Measure your actual product for rough-in details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
